Parts for T10875 - 3" Mini Grinder/Buffer with Rotating Shaft

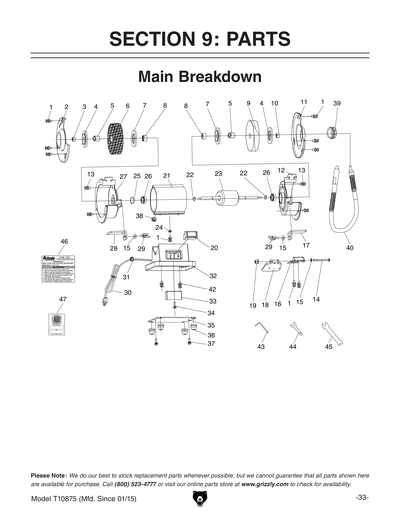

Part Diagram for T10875
Part Diagram for T10875
Part Diagram for T10875
Part Diagram for T10875

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

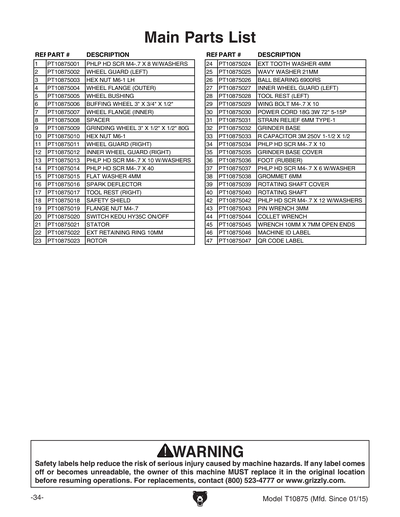

Ref #
Part #
Description
1
PHLP HD SCR M4-.7 X 8 W/WASHERS
Item is no longer available
Price
N/A
2
WHEEL GUARD (LEFT)
Item is no longer available
Price
N/A
3
HEX NUT M6-1 LH
Item is no longer available
Price
N/A
4
WHEEL FLANGE (OUTER)
Item is no longer available
Price
N/A
5
WHEEL BUSHING
Item is no longer available
Price
N/A
6
BUFFING WHEEL 3" X 3/4" X 1/2"
Price
$6.15
7
WHEEL FLANGE (INNER)
Item is no longer available
Price
N/A
8
SPACER
Item is no longer available
Price
N/A
9
GRINDING WHEEL 3" X 1/2" X 1/2" 80G
Price
$3.65
10
HEX NUT M6-1
Price
N/A
11
WHEEL GUARD (RIGHT)
Item is no longer available
Price
N/A
12
INNER WHEEL GUARD (RIGHT)
Item is no longer available
Price
N/A
13
PHLP HD SCR M4-.7 X 10 W/WASHERS
Item is no longer available
Price
N/A
14
PHLP HD SCR M4-.7 X 40
Price
N/A
15
FLAT WASHER 4MM
Price
N/A
16
SPARK DEFLECTOR
Price
$1.90
17
TOOL REST (RIGHT)
Item is no longer available
Price
N/A
18
SAFETY SHIELD
Price
$1.90
19
FLANGE NUT M4-.7
Item is no longer available
Price
N/A
20
SWITCH KEDU HY35C ON/OFF
Price
$2.60
21
STATOR
Item is no longer available
Price
N/A
22
EXT RETAINING RING 10MM
Price
N/A
23
ROTOR
Item is no longer available
Price
N/A
24
EXT TOOTH WASHER 4MM
Price
N/A
25
WAVY WASHER 21MM
Item is no longer available
Price
N/A
26
BALL BEARING 6900RS
Item is no longer available
Price
N/A
27
INNER WHEEL GUARD (LEFT)
Item is no longer available
Price
N/A
28
TOOL REST (LEFT)
Item is no longer available
Price
N/A
29
WING BOLT M4-.7 X 10
Item is no longer available
Price
N/A
30
POWER CORD 18G 3W 72" 5-15P
Item is no longer available
Price
N/A
31
STRAIN RELIEF 6MM TYPE-1
Item is no longer available
Price
N/A
32
GRINDER BASE
Item is no longer available
Price
N/A
33
R CAPACITOR 3M 250V 1-1/2 X 1/2
Item is no longer available
Price
N/A
34
PHLP HD SCR M4-.7 X 10
Price
N/A
35
GRINDER BASE COVER
Item is no longer available
Price
N/A
36
FOOT (RUBBER)
Item is no longer available
Price
N/A
37
PHLP HD SCR M4-.7 X 6 W/WASHER
Item is no longer available
Price
N/A
38
GROMMET 6MM
Item is no longer available
Price
N/A
39
ROTATING SHAFT COVER
Item is no longer available
Price
N/A
40
ROTATING SHAFT
Price
$18.70
42
PHLP HD SCR M4-.7 X 12 W/WASHERS
Item is no longer available
Price
N/A
43
PIN WRENCH 3MM
Item is no longer available
Price
N/A
44
COLLET WRENCH
Item is no longer available
Price
N/A
45
WRENCH 10MM X 7MM OPEN ENDS
Item is no longer available
Price
N/A
46
MACHINE ID LABEL
Item is no longer available
Price
N/A
47
QR CODE LABEL V1
Item is no longer available
Price
N/A
47V2
QR CODE CSA LABEL V2.02.16
Item is no longer available
Price
N/A
MAN
MANUAL T10875 MFD-01.15 V1.04.15
Item is no longer available
Price
N/A
