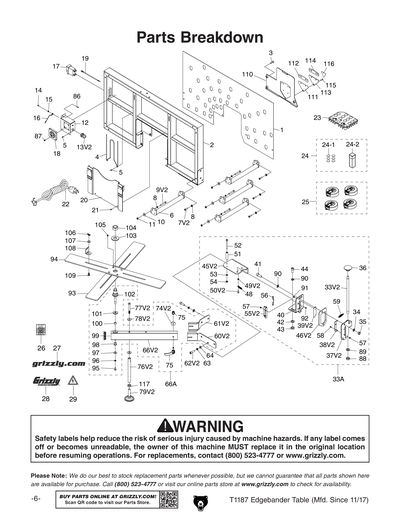

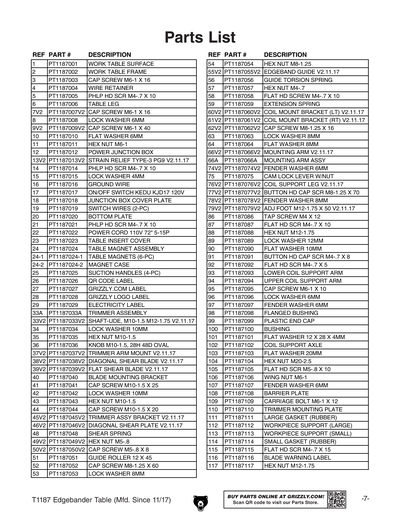

Parts for T1187 Stationary Worktable for G0825 Portable Edgebander

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

1
WORK TABLE SURFACE
2
WORK TABLE FRAME
3
FLAT HD SCR M6-1 X 16
Price
N/A
4
WIRE RETAINER
5
Now: PS38M
PHLP HD SCR M4-.7 X 10
Price
N/A
6
TABLE LEG
7
CAP SCREW M6-1 X 20
Price
N/A
7V2
CAP SCREW M6-1 X 16
Price
N/A
8
LOCK WASHER 6MM
Price
N/A
9
CAP SCREW 8-32 X 7/8
Price
N/A
9V2
CAP SCREW M6-1 X 40
Price
N/A
10
Now: PW03M
FLAT WASHER 6MM
Price
N/A
11
Now: PN01M
HEX NUT M6-1
Price
N/A
12
POWER JUNCTION BOX
13
STRAIN RELIEF TYPE-3 17MM V1
13V2
STRAIN RELIEF TYPE-3 PG9 V2.11.17
14
Now: PS38M
PHLP HD SCR M4-.7 X 10
Price
N/A
15
LOCK WASHER 4MM
Price
N/A
16
GROUND WIRE
17
ON/OFF SWITCH KEDU KJD17 120V
18
JUNCTION BOX COVER PLATE
19
SWITCH WIRES (2-PC)
20
BOTTOM PLATE
21
Now: PS38M
PHLP HD SCR M4-.7 X 10
Price
N/A
22
POWER CORD 110V 72" 5-15P
23
TABLE INSERT COVER
24
TABLE MAGNET ASSEMBLY
24-1
TABLE MAGNETS (6-PC)
24-2
MAGNET CASE
25
SUCTION HANDLES (4-PC)
26
QR CODE LABEL
27
GRIZZLY.COM LABEL 8.25",RED
Price
N/A
28
GRIZZLY LOGO LABEL
29
ELECTRICITY 0.7W X 0.6H
Price
N/A
33
SHAFT M10-1.5 X 16 V1
33A
TRIMMER ASSEMBLY
33V2
SHAFT-UDE, M10-1.5 M12-1.75 V2.11.17
34
LOCK WASHER 10MM
Price
N/A
35
Now: PN02M
HEX NUT M10-1.5
Price
N/A
36
KNOB M10-1.5, 28H 48D OVAL
37
TRIMMER ARM MOUNT V1
37V2
TRIMMER ARM MOUNT V2.11.17
38
DIAGONAL SHEAR BLADE V1
38V2
DIAGONAL SHEAR BLADE V2.11.17
39
FLAT SHEAR BLADE V1
39V2
FLAT SHEAR BLADE V2.11.17
40
BLADE MOUNTING BRACKET
41
CAP SCREW M10-1.5 X 25
Price
N/A
42
LOCK WASHER 10MM
Price
N/A
43
Now: PN02M
HEX NUT M10-1.5
Price
N/A
44
CAP SCREW M10-1.5 X 20
Price
N/A
45
TRIMMER ASSY BRACKET V1
45V2
TRIMMER ASSY BRACKET V2.11.17
46
DIAGONAL SHEAR PLATE V1
46V2
DIAGONAL SHEAR PLATE V2.11.17
47
FLAT SHEAR PLATE
48
SHEAR SPRING
49
Now: PN01M
HEX NUT M6-1
Price
N/A
49V2
Now: PN03M
HEX NUT M8-1.25
Price
N/A
50
CAP SCREW M6-1 X 10
Price
N/A
50V2
CAP SCREW M5-.8 X 8
Price
N/A
51
GUIDE ROLLER 12 X 45
52
CAP SCREW M8-1.25 X 60
Price
N/A
53
LOCK WASHER 8MM
Price
N/A
54
Now: PN03M
HEX NUT M8-1.25
Price
N/A
55
EDGEBAND GUIDE V1
55V2
EDGEBAND GUIDE V2.11.17
56
GUIDE TORSION SPRING
57
Now: PN04M
HEX NUT M4-.7
Price
N/A
58
FLAT HD SCREW M4-.7 X 10
59
EXTENSION SPRING
60
COIL MOUNT BRACKET (LEFT) V1
60V2
COIL MOUNT BRACKET (LT) V2.11.17
61
COIL MOUNT BRACKET (RIGHT) V1
61V2
COIL MOUNT BRACKET (RT) V2.11.17
62
CAP SCREW M8-1.25 X 20
Price
N/A
62V2
CAP SCREW M8-1.25 X 16
Price
N/A
63
LOCK WASHER 8MM
Price
N/A
64
Now: PW01M
FLAT WASHER 8MM
Price
N/A
65
COIL SUPPORT
66
MOUNTING ARM V1
66A
MOUNTING ARM ASSY
66V2
MOUNTING ARM V2.11.17
67
FLAT HD SCR M6-1 X 55
68
Now: PW03M
FLAT WASHER 6MM
Price
N/A
69
Now: PN01M
HEX NUT M6-1
Price
N/A
70
CAP SCREW M8-1.25 X 60
Price
N/A
71
GUIDE ROLLER 12 X 45
Price
N/A
72
LOCK WASHER 8MM
Price
N/A
73
Now: PN03M
HEX NUT M8-1.25
Price
N/A
74
Now: PW01M
FLAT WASHER 8MM
Price
N/A
74V2
FENDER WASHER 6MM
Price
N/A
75
CAM LOCK LEVER W/NUT
76
COIL SUPPORT LEG V1
76V2
COIL SUPPORT LEG V2.11.17
77
CAP SCREW M8-1.25 X 20
Price
N/A
77V2
BUTTON HD CAP SCR M8-1.25 X 70
Price
N/A
78
LOCK WASHER 8MM
Price
N/A
78V2
FENDER WASHER 8MM
Price
N/A
79
ADJ FOOT M12-1.75 X 40 V1
79V2
ADJ FOOT M12-1.75 X 50 V2.11.17
80
CAP SCREW M8-1.25 X 60
Price
N/A
81
Now: P608Z
BALL BEARING 608Z
Price
N/A
82
CENTER ROLLER
83
Now: PW01M
FLAT WASHER 8MM
Price
N/A
84
Now: PN03M
HEX NUT M8-1.25
Price
N/A
85
LOCK WASHER 8MM
Price
N/A
86
TAP SCREW M4 X 12
Price
N/A
87
FLAT HD SCR M4-.7 X 10
Price
N/A
88
Now: PN09M
HEX NUT M12-1.75
Price
N/A
89
LOCK WASHER 12MM
Price
N/A
90
Now: PW04M
FLAT WASHER 10MM
Price
N/A
91
BUTTON HD CAP SCR M4-.7 X 8
Price
N/A
92
FLAT HD SCR M4-.7 X 5
93
LOWER COIL SUPPORT ARM
94
UPPER COIL SUPPORT ARM
95
CAP SCREW M6-1 X 10
Price
N/A
96
LOCK WASHER 6MM
Price
N/A
97
FENDER WASHER 6MM
Price
N/A
98
BUSHING W/LIP
99
PLASTIC CAP
100
SPACER
Price
N/A
101
FLAT WASHER 12 X 28 X 4MM
102
SUPPORT COIL AXLE
103
Now: PW13M
FLAT WASHER 20MM
Price
N/A
104
Now: PN28M
HEX NUT M20-2.5
Price
N/A
105
FLAT HD SCR M5-.8 X 10
Price
N/A
106
WING NUT M6-1
107
FENDER WASHER 6MM
Price
N/A
108
BARRIER PLATE
109
CARRIAGE BOLT M6-1 X 12
Price
N/A
110
TRIMMER MOUNTING PLATE
111
LARGE GASKET (RUBBER)
112
WORKPIECE SUPPORT (LARGE)
113
WORKPIECE SUPPORT (SMALL)
114
SMALL GASKET (RUBBER)
115
FLAT HD SCR M4-.7 X 15
Price
N/A
116
BLADE WARNING LABEL
117
Now: PN09M
HEX NUT M12-1.75
Price
N/A
MAN
T1187 MANUAL MFD-05.17 V1.10.17
MANV2
T1187 MANUAL MFD-08.17 V2.11.17
MANV3
T1187 MANUAL MFD-11.17 V3.02.18
P
FLAT HD SCR M4-.7 X 15
