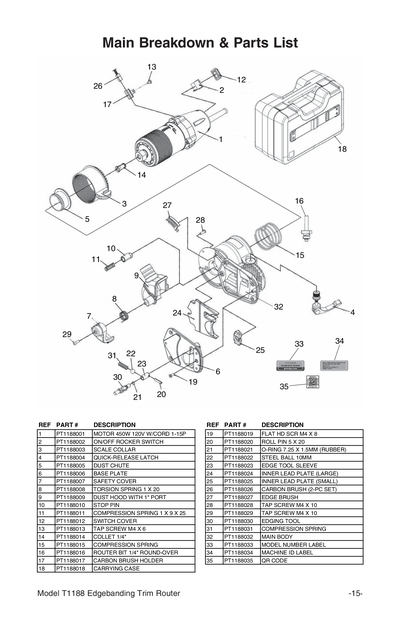

Parts for T1188 Edgebanding Trimmer for G0825

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

1
MOTOR 450W 120V W/CORD 1-15P
2
ON/OFF ROCKER SWITCH
3
SCALE COLLAR
4
QUICK-RELEASE LATCH
5
DUST CHUTE
6
BASE PLATE
7
SAFETY COVER
8
TORSION SPRING 1 X 20
9
DUST HOOD WITH 1" PORT
10
STOP PIN
11
COMPRESSION SPRING 1 X 9 X 25
12
SWITCH COVER
13
TAP SCREW M4 X 6
Price
N/A
14
COLLET 1/4"
15
COMPRESSION SPRING
16
ROUTER BIT 1/4" ROUND-OVER
17
CARBON BRUSH HOLDER
18
CARRYING CASE
19
FLAT HD SCR M4 X 8
20
ROLL PIN 5 X 20
Price
N/A
21
O-RING 7.25 X 1.5MM (RUBBER)
22
STEEL BALL 10MM
Price
N/A
23
EDGE TOOL SLEEVE
24
INNER LEAD PLATE (LARGE)
25
INNER LEAD PLATE (SMALL)
26
CARBON BRUSH (2-PC SET)
27
EDGE BRUSH
28
TAP SCREW M4 X 10
Price
N/A
29
TAP SCREW M4 X 10
Price
N/A
30
EDGING TOOL
31
COMPRESSION SPRING
32
MAIN BODY
33
MODEL NUMBER LABEL
34
MACHINE ID LABEL
35
QR CODE
MAN
MANUAL MFD-07.17 V1.09.17
