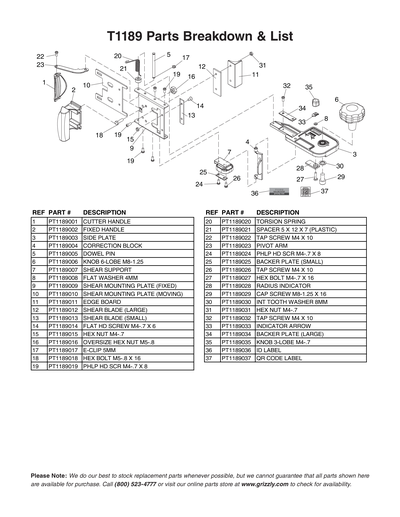

Parts for T1189 Dual End Cutter for G0825

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

1
CUTTER HANDLE
2
FIXED HANDLE
3
SIDE PLATE
4
CORRECTION BLOCK
5
DOWEL PIN
6
KNOB 6-LOBE M8-1.25
7
SHEAR SUPPORT
8
Now: PW05M
FLAT WASHER 4MM
Price
N/A
9
SHEAR MOUNTING PLATE (FIXED)
10
SHEAR MOUNTING PLATE (MOVING)
11
EDGE BOARD
12
SHEAR BLADE (LARGE)
13
SHEAR BLADE (SMALL)
14
FLAT HD SCR M4-.7 X 6
Price
N/A
15
Now: PN04M
HEX NUT M4-.7
Price
N/A
16
OVERSIZE HEX NUT M5-.8
17
E-CLIP 5MM
Price
N/A
18
Now: PB95M
HEX BOLT M5-.8 X 16
Price
N/A
19
Now: PS07M
PHLP HD SCR M4-.7 X 8
Price
N/A
20
TORSION SPRING
21
SPACER 5 X 12 X 7 (PLASTIC)
22
TAP SCREW M4 X 10
Price
N/A
23
PIVOT ARM
24
Now: PS07M
PHLP HD SCR M4-.7 X 8
Price
N/A
25
BACKER PLATE (SMALL)
26
TAP SCREW M4 X 10
Price
N/A
27
HEX BOLT M4-.7 X 16
Price
N/A
28
RADIUS INDICATOR
29
CAP SCREW M8-1.25 X 16
Price
N/A
30
INT TOOTH WASHER 8MM
Price
N/A
31
Now: PN04M
HEX NUT M4-.7
Price
N/A
32
TAP SCREW M4 X 10
Price
N/A
33
INDICATOR ARROW
34
BACKER PLATE (LARGE)
35
KNOB 3-LOBE M4-.7
36
ID LABEL
37
QR CODE LABEL
MAN
MANUAL T1189 MFD-06.17 V1.09.17
