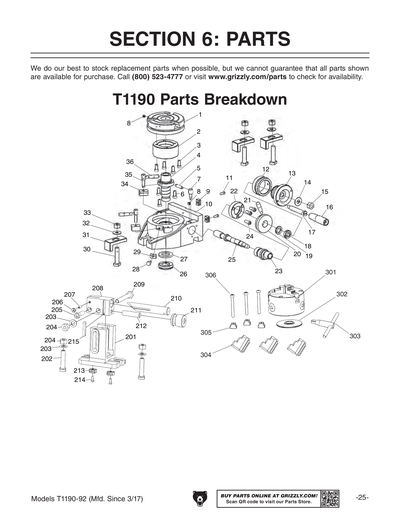

Parts for T1190 4-3/8" Rotary Table with Tailstock and Chuck

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

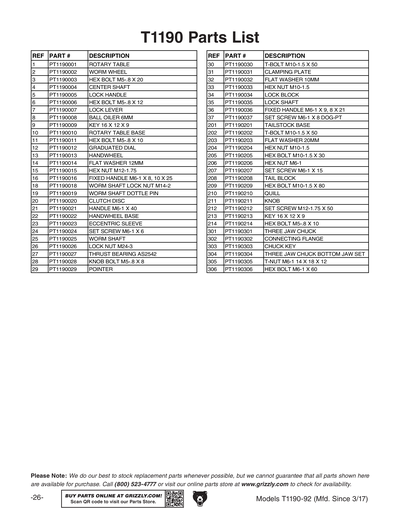

1
ROTARY TABLE
2
WORM WHEEL
3
Now: PB42M
HEX BOLT M5-.8 X 20
Price
N/A
4
CENTER SHAFT
5
LOCK HANDLE
6
HEX BOLT M5-.8 X 12
Price
N/A
7
LOCK LEVER
8
BALL OILER 6MM
Price
N/A
9
KEY 16 X 12 X 9
10
ROTARY TABLE BASE
11
Now: PB96M
HEX BOLT M5-.8 X 10
Price
N/A
12
GRADUATED DIAL
13
HANDWHEEL
14
Now: PW06M
FLAT WASHER 12MM
Price
N/A
15
Now: PN09M
HEX NUT M12-1.75
Price
N/A
16
FIXED HANDLE M6-1 X 8, 10 X 25
17
SHOULDER BOLT F16X 80
18
WORM SHAFT LOCK NUT M14-2
19
WORM SHAFT DOTTLE PIN
20
CLUTCH DISC
21
HANDLE M6-1 X 40
22
HANDWHEEL BASE
23
ECCENTRIC SLEEVE
24
SET SCREW M6-1 X 6
Price
N/A
25
WORM SHAFT
26
LOCK NUT M24-3
27
THRUST BEARING AS2542
28
KNOB BOLT M5-.8 X 8
29
POINTER
30
T-BOLT M10-1.5 X 50
31
CLAMPING PLATE
32
Now: PW04M
FLAT WASHER 10MM
Price
N/A
33
Now: PN02M
HEX NUT M10-1.5
Price
N/A
34
LOCK BLOCK
35
LOCK SHAFT
36
FIXED HANDLE M6-1 X 9, 8 X 21
37
SET SCREW M6-1 X 8 DOG-PT
Price
N/A
201
TAILSTOCK BASE
202
T-BOLT M10-1.5 X 50
Price
N/A
203
Now: PW13M
FLAT WASHER 20MM
Price
N/A
204
Now: PN02M
HEX NUT M10-1.5
Price
N/A
205
Now: PB01M
HEX BOLT M10-1.5 X 30
Price
N/A
206
Now: PN01M
HEX NUT M6-1
Price
N/A
207
SET SCREW M6-1 X 15
208
TAIL BLOCK
209
Now: PB13M
HEX BOLT M10-1.5 X 80
Price
N/A
210
QUILL
211
KNOB
212
SET SCREW M12-1.75 X 50
Price
N/A
213
KEY 16 X 12 X 9
Price
N/A
214
Now: PB96M
HEX BOLT M5-.8 X 10
Price
N/A
301
THREE JAW CHUCK
302
CONNECTING FLANGE
303
CHUCK KEY
304
THREE JAW CHUCK BOTTOM JAW SET
305
T-NUT M6-1 14 X 18 X 12
306
HEX BOLT M6-1 X 60
