Parts for T1192 - 4-3/8" Power DRO Rotary Table Set

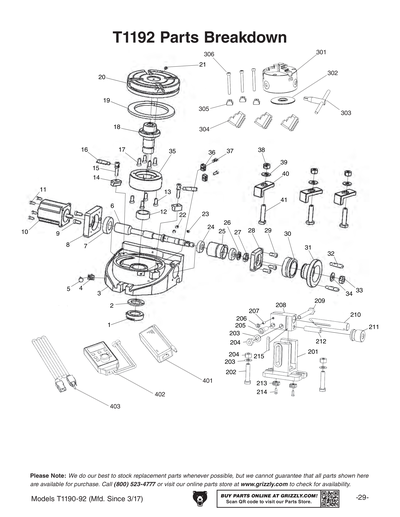

Part Diagram for T1192

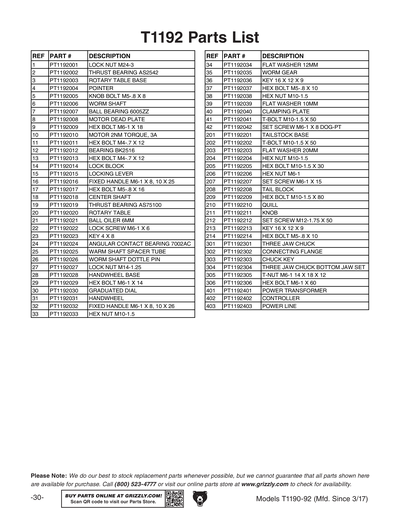

Part Diagram for T1192
Part Diagram for T1192
Part Diagram for T1192

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
1
LOCK NUT M24-3
Price
N/A
2
THRUST BEARING AS2542
Price
N/A
3
ROTARY TABLE BASE
Price
N/A
4
POINTER
Price
N/A
5
KNOB BOLT M5-.8 X 8
Price
N/A
6
WORM SHAFT
Price
N/A
7
BALL BEARING 6005ZZ
Price
N/A
8
MOTOR DEAD PLATE
Price
N/A
9
HEX BOLT M6-1 X 18
Price
N/A
10
MOTOR 2NM TORQUE, 3A
Price
N/A
11
HEX BOLT M4-.7 X 12
Price
N/A
12
BEARING BK2516
Price
N/A
13
HEX BOLT M4-.7 X 12
Price
N/A
14
LOCK BLOCK
Price
N/A
15
LOCKING LEVER
Price
N/A
16
LOCKING LEVER HANDLE M6-1 X 8
Price
N/A
17
HEX BOLT M5-.8 X 16
Price
N/A
18
CENTER SHAFT
Price
N/A
19
THRUST BEARING AS75100
Price
N/A
20
ROTARY TABLE
Price
N/A
21
BALL OILER 6MM
Price
N/A
22
LOCK SCREW M6-1 X 6
Price
N/A
23
KEY 4 X 8
Price
N/A
24
ANGULAR CONTACT BEARING 7002AC
Price
N/A
25
WARM SHAFT SPACER TUBE
Price
N/A
26
WORM SHAFT DOTTLE PIN
Price
N/A
27
LOCK NUT M14-1.25
Price
N/A
28
HANDWHEEL BASE
Price
N/A
29
HEX BOLT M6-1 X 14
Price
N/A
30
GRADUATED DIAL
Price
N/A
31
HANDWHEEL
Price
N/A
32
FIXED HANDLE M6-1 X 8, 10 X 26
Price
N/A
33
HEX NUT M10-1.5
Price
N/A
34
FLAT WASHER 12MM
Price
N/A
35
WORM GEAR
Price
N/A
36
KEY 16 X 12 X 9
Price
N/A
37
HEX BOLT M5-.8 X 10
Price
N/A
38
HEX NUT M10-1.5
Price
N/A
39
FLAT WASHER 10MM
Price
N/A
40
CLAMPING PLATE
Price
N/A
41
HEX BOLT M10-1.5 X 50
Price
N/A
42
SET SCREW M6-1 X 8 DOG-PT
Price
N/A
201
TAILSTOCK BASE
Price
N/A
202
T-BOLT M10-1.5 X 50
Price
N/A
203
FLAT WASHER 20MM
Price
N/A
204
HEX NUT M10-1.5
Price
N/A
205
HEX BOLT M10-1.5 X 30
Price
N/A
206
HEX NUT M6-1
Price
N/A
207
SET SCREW M6-1 X 15
Price
N/A
208
TAIL BLOCK
Price
N/A
209
HEX BOLT M10-1.5 X 80
Price
N/A
210
QUILL
Price
N/A
211
KNOB
Price
N/A
212
SET SCREW M12-1.75 X 50
Price
N/A
213
KEY 16 X 12 X 9
Price
N/A
214
HEX BOLT M5-.8 X 10
Price
N/A
301
THREE JAW CHUCK
Price
N/A
302
CONNECTING FLANGE
Price
N/A
303
CHUCK KEY
Price
N/A
304
THREE JAW CHUCK BOTTOM JAW SET
Price
N/A
305
T-NUT M6-1 14 X 18 X 12
Price
N/A
306
HEX BOLT M6-1 X 60
Price
N/A
401
POWER TRANSFORMER
Price
N/A
402
CONTROLLER
Price
N/A
403
POWER CORD
Price
N/A
