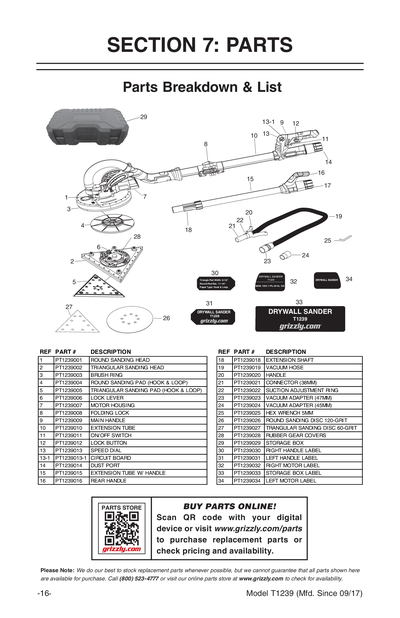

Parts for T1239 Drywall Sander with Vacuum Attachment

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

1
ROUND SANDING HEAD
2
TRIANGULAR SANDING HEAD
3
BRUSH RING
4
ROUND SANDING PAD (HOOK & LOOP)
5
TRIANGULAR SANDING PAD (HOOK & LOOP)
6
LOCK LEVER
7
MOTOR HOUSING
8
FOLDING LOCK
9
MAIN HANDLE
10
EXTENSION TUBE
11
ON/OFF SWITCH
12
LOCK BUTTON
13
SPEED DIAL
13-1
CIRCUIT BOARD
14
DUST PORT
15
EXTENSION TUBE W/ HANDLE
16
REAR HANDLE
17
DUST PORT
18
EXTENSION SHAFT
19
VACUUM HOSE
20
HANDLE
21
CONNECTOR (38MM)
22
SUCTION ADJUSTMENT RING
23
VACUUM ADAPTER (47MM)
24
VACUUM ADAPTER 35MM
25
HEX WRENCH 5MM
26
ROUND SANDING DISC 120-GRIT
27
TRANGULAR SANDING DISC 60-GRIT
28
RUBBER GEAR COVERS
29
STORAGE BOX
30
RIGHT HANDLE LABEL
31
LEFT HANDLE LABEL
32
RIGHT MOTOR LABEL
33
STORAGE BOX LABEL
34
LEFT MOTOR LABEL
MAN
MANUAL T1239 MFD-09.17 V1.10.17
