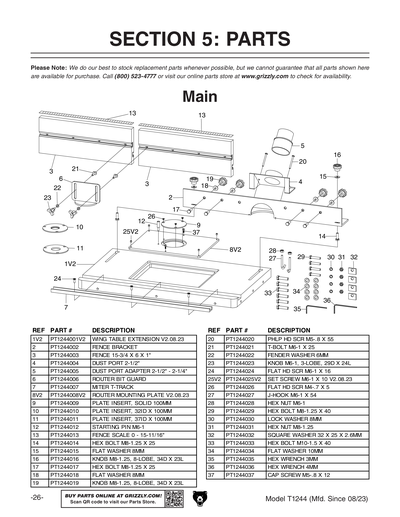

Parts for T1244 Router Table Wing for Table Saws

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

1
WING TABLE EXTENSION V1
1V2
WING TABLE EXTENSION V2.08.23
2
FENCE BRACKET
3
FENCE 15-3/4 X 6 X 1"
4
DUST PORT 2-1/2"
5
DUST PORT ADAPTER 2-1/2" - 2-1/4"
6
ROUTER BIT GUARD
7
MITER T-TRACK
8
ROUTER MOUNTING PLATE V1
8V2
ROUTER MOUNTING PLATE V2.08.23
9
PLATE INSERT, SOLID 100MM
10
PLATE INSERT, 32ID X 100MM
11
PLATE INSERT, 37ID X 100MM
12
STARTING PIN M6-1
13
FENCE SCALE 0 - 15-11/16"
14
Now: PB07M
HEX BOLT M8-1.25 X 25
Price
N/A
15
Now: PW01M
FLAT WASHER 8MM
Price
N/A
16
KNOB M8-1.25, 8-LOBE, 34D X 23L
17
Now: PB07M
HEX BOLT M8-1.25 X 25
Price
N/A
18
Now: PW01M
FLAT WASHER 8MM
Price
N/A
19
KNOB M8-1.25, 8-LOBE, 34D X 23L
Price
N/A
20
PHLP HD SCR M5-.8 X 55
Price
N/A
21
T-BOLT M6-1 X 25
22
FENDER WASHER 6MM
Price
N/A
23
KNOB M6-1, 3-LOBE, 29D X 24L
24
FLAT HD SCR M6-1 X 16
Price
N/A
25
SET SCREW M6-1 X 6
Price
N/A
25V2
SET SCREW M6-1 X 10
Price
N/A
26
FLAT HD SCR M4-.7 X 5
27
J-HOOK M6-1 X 54
28
Now: PN01M
HEX NUT M6-1
Price
N/A
29
Now: PB15M
HEX BOLT M8-1.25 X 40
Price
N/A
30
LOCK WASHER 8MM
Price
N/A
31
Now: PN03M
HEX NUT M8-1.25
Price
N/A
32
SQUARE WASHER 32 X 25 X 2.6MM
33
Now: PB31M
HEX BOLT M10-1.5 X 40
Price
N/A
34
Now: PW04M
FLAT WASHER 10MM
Price
N/A
35
HEX WRENCH 3MM
Price
N/A
36
HEX WRENCH 4MM
Price
N/A
37
CAP SCREW M5-.8 X 12
Price
N/A
MAN
MANUAL T1244 MFD-10.17-07.23 V1.03.18
MANV2
MANUAL T1244 MFD-08.23+ V2.07.23
