Parts for T20797 - 52" 18 Gauge Foot Shear

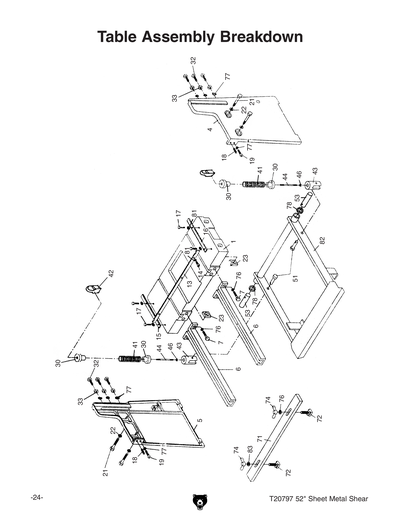

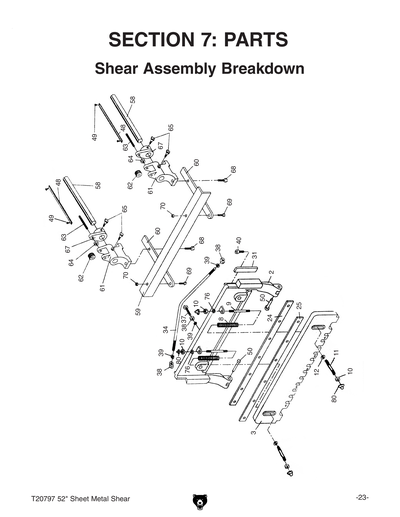

Part Diagram for T20797
Part Diagram for T20797
Part Diagram for T20797
Part Diagram for T20797
Part Diagram for T20797
Part Diagram for T20797
Part Diagram for T20797
Part Diagram for T20797

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

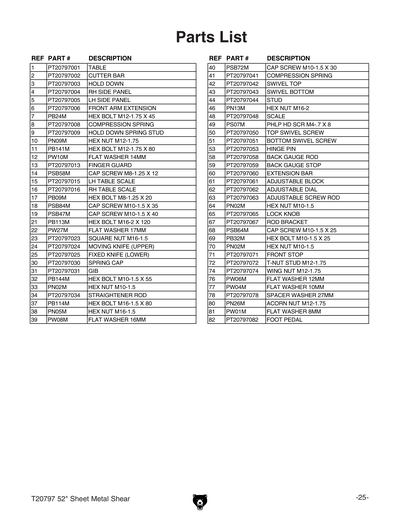

Ref #
Part #
Description
1
*DISCD*TABLE
Item is no longer available
Price
N/A
2
*DISCD*CUTTER BAR
Item is no longer available
Price
N/A
3
*DISCD*HOLD DOWN
Item is no longer available
Price
N/A
4
*DISCD*PANEL RH SIDE
Item is no longer available
Price
N/A
5
*DISCD*SIDE PANEL LH
Item is no longer available
Price
N/A
6
*DISCD*FRONT ARM EXTENSION
Price
$340.70
7
HEX BOLT M12-1.75 X 45
Price
N/A
8
*DISCD*COMPRESSION SPRING 25 X 19 X 180
Item is no longer available
Price
N/A
9
*DISCD*STUD-DE M12-1.75 X 240 25/112
Price
$32.50
10
HEX NUT M12-1.75
Price
N/A
11
HEX BOLT M12-1.75 X 80
Price
N/A
12
FLAT WASHER 14MM
Price
N/A
13
*DISCD*FINGER GUARD
Item is no longer available
Price
N/A
14
CAP SCREW M8-1.25 X 12
Price
N/A
15
*DISCD*TABLE SCALE LH
Item is no longer available
Price
N/A
16
*DISCD*TABLE SCALE RH
Item is no longer available
Price
N/A
17
HEX BOLT M8-1.25 X 20
Price
N/A
18
CAP SCREW M10-1.5 X 35
Price
N/A
19
CAP SCREW M10-1.5 X 40
Price
N/A
21
HEX BOLT M16-2 X 120
Price
N/A
22
FLAT WASHER 17MM
Price
N/A
23
HEX NUT M16-1.5
Price
N/A
24
*DISCD*MOVING KNIFE UPPER
Item is no longer available
Price
N/A
25
*DISCD*FIXED KNIFE LOWER
Item is no longer available
Price
N/A
26
HEX BOLT M10-1.5 X 40
Price
N/A
27
CAP SCREW M10-1.5 X 45
Price
N/A
28
FLAT WASHER 10MM
Price
N/A
30
*DISCD*SPRING CAP
Item is no longer available
Price
N/A
31
*DISCD*GIB
Item is no longer available
Price
N/A
32
HEX BOLT M10-1.5 X 55
Price
N/A
33
HEX NUT M10-1.5
Price
N/A
34
*DISCD*STRAIGHTENER ROD
Item is no longer available
Price
N/A
37
HEX BOLT M16-1.5 X 80
Price
N/A
38
HEX NUT M16-1.5
Price
N/A
39
FLAT WASHER 16MM
Price
N/A
40
CAP SCREW M10-1.5 X 30
Price
N/A
41
*DISCD*COMPRESSION SPRING 45 X 38 X 280
Item is no longer available
Price
N/A
42
*DISCD*SWIVEL TOP
Item is no longer available
Price
N/A
43
*DISCD*SWIVEL BOTTOM
Item is no longer available
Price
N/A
44
*DISCD*STUD-DE M16-2 X 325 28/70
Item is no longer available
Price
N/A
45
*DISCD*SCALE
Item is no longer available
Price
N/A
47
*DISCD*SPRING MOUNTING BRACKET
Item is no longer available
Price
N/A
48
CAP SCREW M10-1.5 X 25
Price
N/A
50
*DISCD*TOP SWIVEL SCREW M10 X 1.5
Item is no longer available
Price
N/A
51
*DISCD*BOTTOM SWIVEL SCREW 16 X 55
Item is no longer available
Price
N/A
53
*DISCD*HINGE PIN
Item is no longer available
Price
N/A
54
*DISCD*SPRING CAP M16X1.5
Item is no longer available
Price
N/A
55
*DISCD*LEFT BACK GAUGE EXT BAR
Item is no longer available
Price
N/A
56
*DISCD*RIGHT BACK GAUGE EXT BAR
Item is no longer available
Price
N/A
58
*DISCD*BACK GAUGE ROD
Item is no longer available
Price
N/A
59
*DISCD*BACK GAUGE STOP
Item is no longer available
Price
N/A
60
*DISCD*EXTENSION BAR
Item is no longer available
Price
N/A
61
*DISCD*ADJUSTABLE BLOCK
Item is no longer available
Price
N/A
62
*DISCD*ADJUSTABLE DIAL
Item is no longer available
Price
N/A
63
*DISCD*ADJUST SCREW ROD 10 X 60
Item is no longer available
Price
N/A
64
HEX NUT M10-1.5
Price
N/A
65
*DISCD*LOCK KNOB
Item is no longer available
Price
N/A
66
*DISCD*STUD
Item is no longer available
Price
N/A
67
*DISCD*ROD BRACKET
Item is no longer available
Price
N/A
68
CAP SCREW M10-1.5 X 25
Price
N/A
69
HEX BOLT M10-1.5 X 25
Price
N/A
70
HEX NUT M10-1.5
Price
N/A
71
*DISCD*FRONT STOP
Item is no longer available
Price
N/A
72
*DISCD*T-NUT STUD M12-1.75
Item is no longer available
Price
N/A
74
*DISCD*WING NUT M12-1.75
Item is no longer available
Price
N/A
75
*DISCD*BEVEL GAUGE
Item is no longer available
Price
N/A
76
FLAT WASHER 12MM
Price
N/A
77
FLAT WASHER 10MM
Price
N/A
78
*DISCD*SPACER WASHER 27MM
Item is no longer available
Price
N/A
80
ACORN NUT M12-1.75
Price
N/A
81
FLAT WASHER 8MM
Price
N/A
82
*DISCD*FOOT PEDAL
Item is no longer available
Price
N/A
100

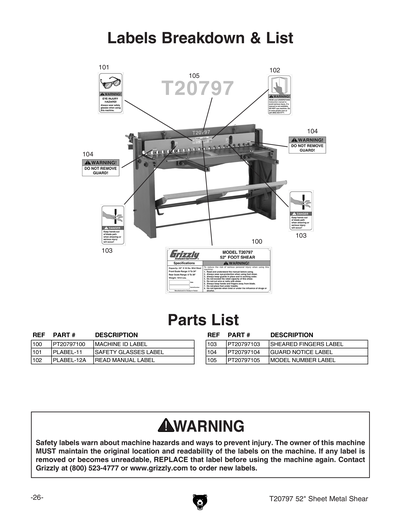

MACHINE ID LABEL
Item is no longer available
Price
N/A
101
SAFETY GLASSES 2W X 3.3H V2.04.08
Price
N/A
102
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
103
SHEARED FINGERS LABEL
Item is no longer available
Price
N/A
104
GUARD NOTICE LABEL
Item is no longer available
Price
N/A
105
MODEL NUMBER LABEL
Item is no longer available
Price
N/A
MAN
MANUAL FOR T20797 10/08
Item is no longer available
Price
N/A
