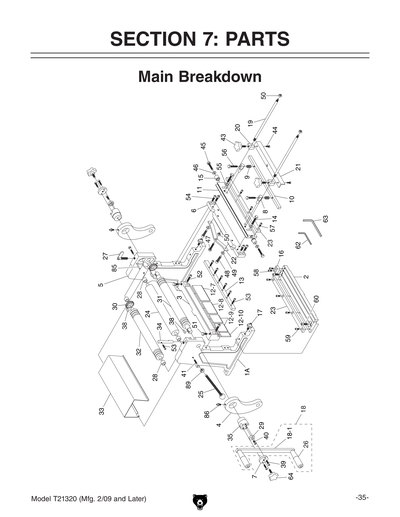

Parts for T21320 12" Combination 3-in-1 Sheet Metal Machine

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

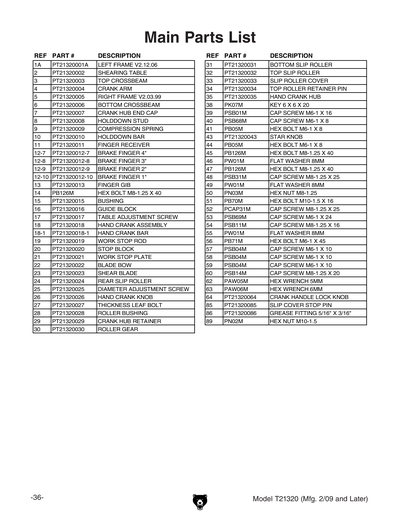

1A
FRAME LEFT
2
SHEARING TABLE
3
TOP CROSSBEAM
4
CRANK ARM
5
FRAME RIGHT
6
BOTTOM CROSSBEAM
7
CRANK HUB END CAP
8
HOLD DOWN SHOULDER STUD
9
COMPRESSION SPRING
10
HOLD DOWN BAR
11
FINGER RECEIVER
12-10
BRAKE FINGERS ASSEMBLY
Price
N/A
12-7
BRAKE FINGERS ASSEMBLY
Price
N/A
12-8
BRAKE FINGERS ASSEMBLY
Price
N/A
12-9
BRAKE FINGERS ASSEMBLY
Price
N/A
12A
BRAKE FINGERS ASSEMBLY
13
FINGER GIB
14
Now: PB15M
HEX BOLT M8-1.25 X 40
Price
N/A
15
BUSHING
16
GUIDE BLOCK
17
TABLE ADJUSTMENT SCREW
18
HAND CRANK ASSEMBLY
18-1
HAND CRANK BAR
19
WORK STOP ROD
20
STOP BLOCK
21
WORK STOP PLATE
22
BLADE BOW
23
SHEAR BLADE
24
REAR SLIP ROLLER
25
DIAMETER ADJUSTMENT SCREW
26
HAND CRANK KNOB
27
THICKNESS LEAF BOLT
28
ROLLER BUSHING
29
CRANK HUB RETAINER
30
ROLLER GEAR
31
BOTTOM SLIP ROLLER
32
TOP SLIP ROLLER
33
SLIP ROLLER COVER
34
TOP ROLLER RETAINER PIN
35
HAND CRANK HUB
38
Now: PK07M
KEY 6 X 6 X 20
Price
N/A
39
CAP SCREW M6-1 X 16
Price
N/A
40
CAP SCREW M6-1 X 8
Price
N/A
41
Now: PB05M
HEX BOLT M6-1 X 8
Price
N/A
43
STAR KNOB
44
Now: PB05M
HEX BOLT M6-1 X 8
Price
N/A
45
Now: PB15M
HEX BOLT M8-1.25 X 40
Price
N/A
46
Now: PW01M
FLAT WASHER 8MM
Price
N/A
47
Now: PB15M
HEX BOLT M8-1.25 X 40
Price
N/A
48
CAP SCREW M8-1.25 X 25
Price
N/A
49
Now: PW01M
FLAT WASHER 8MM
Price
N/A
50
Now: PN03M
HEX NUT M8-1.25
Price
N/A
51
Now: PB70M
HEX BOLT M10-1.5 X 16
Price
N/A
52
CAP SCREW M8-1.25 X 25
Price
N/A
53
CAP SCREW M6-1 X 24
Price
N/A
54
CAP SCREW M8-1.25 X 16
Price
N/A
55
Now: PW01M
FLAT WASHER 8MM
Price
N/A
56
Now: PB71M
HEX BOLT M6-1 X 45
Price
N/A
57
CAP SCREW M6-1 X 10
Price
N/A
58
CAP SCREW M6-1 X 10
Price
N/A
59
CAP SCREW M6-1 X 10
Price
N/A
60
CAP SCREW M8-1.25 X 20
Price
N/A
62
HEX WRENCH 5MM
Price
N/A
63
HEX WRENCH 6MM
Price
N/A
64
CRANK HANDLE LOCK KNOB
85
SLIP COVER STOP PIN
86
GREASE FITTING 5/16 X 3/16"
89
Now: PN02M
HEX NUT M10-1.5
Price
N/A
102
READ MANUAL 2.8W X 1.5H
Price
N/A
103
MACHINE ID LABEL
104
PINCH/SHEAR HAZARD LABEL
105
SAFETY GLASSES 2.8W X 1.5H
Price
N/A
106
DOMED GRIZZLY LABEL
Price
N/A
107
N/S GRIZZLY GREEN G1023S
Price
N/A
MANUAL
MANUAL FOR T21320 02/09
