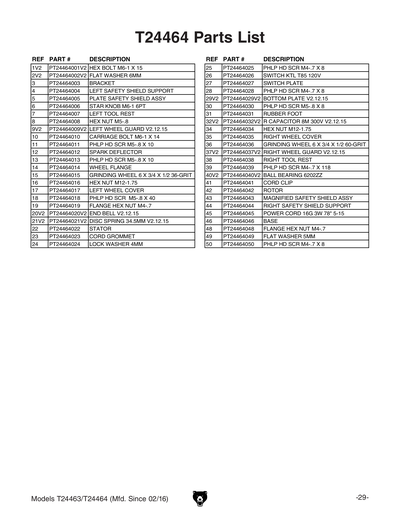

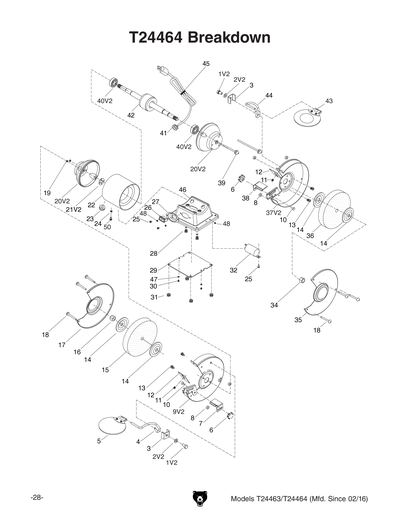

Parts for T24464 6" Bench Grinder 1/3 HP

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

1
Now: PB84M
HEX BOLT M8-1.25 X 14
Price
N/A
1V2
Now: PB18M
HEX BOLT M6-1 X 15
Price
N/A
2
Now: PW01M
FLAT WASHER 8MM
Price
N/A
2V2
Now: PW03M
FLAT WASHER 6MM
Price
N/A
3
BRACKET
4
LEFT SAFETY SHIELD SUPPORT
5
PLATE SAFETY SHIELD ASSY
6
STAR KNOB M6-1 6PT
7
LEFT TOOL REST
8
Now: PN06M
HEX NUT M5-.8
Price
N/A
9
LEFT WHEEL GUARD V1
9V2
LEFT WHEEL GUARD V2.12.15
10
CARRIAGE BOLT M6-1 X 14
11
Now: PS09M
PHLP HD SCR M5-.8 X 10
Price
N/A
12
SPARK DEFLECTOR
13
Now: PS09M
PHLP HD SCR M5-.8 X 10
Price
N/A
14
WHEEL FLANGE
15
WHEEL 6 X 3/4 X 1/2 36-GRIT
16
Now: PN09M
HEX NUT M12-1.75
Price
N/A
17
LEFT WHEEL COVER
18
*DISCD*PHLP HD SCR M5-.8 X 40
Price
N/A
19
FLANGE HEX NUT M4-.7
20
END BELL V1
20V2
END BELL V2.12.15
21
DISC SPRING 1/2
22
STATOR
23
CORD GROMMET
24
LOCK WASHER 4MM
Price
N/A
25
Now: PS07M
PHLP HD SCR M4-.7 X 8
Price
N/A
26
SWITCH KTL T85 120V
27
SWITCH PLATE
28
Now: PS07M
PHLP HD SCR M4-.7 X 8
Price
N/A
29
BOTTOM PLATE V1
29V2
BOTTOM PLATE V2.12.15
30
PHLP HD SCR M5-.8 X 8
31
RUBBER FOOT
32
R CAPACITOR 8M 300V V1
32V2
R CAPACITOR 8M 300V V2.12.15
33
CAPACITOR SUPPORT
34
Now: PN09M
HEX NUT M12-1.75
Price
N/A
35
RIGHT WHEEL COVER
36
WHEEL 6 X 3/4 X 1/2 60-GRIT
37
RIGHT WHEEL GUARD
37V2
RIGHT WHEEL GUARD V2.12.15
38
RIGHT TOOL REST
39
PHLP HD SCR M2-.4 X 20
Price
N/A
40
BALL BEARING 6002ZZ
Price
N/A
40V2
BALL BEARING 6202ZZ
Price
N/A
41
CORD CLIP
42
ROTOR
43
MAGNIFIED SAFETY SHIELD ASSY
44
RIGHT SAFETY SHIELD SUPPORT
45
POWER CORD 16AWG 3W 5-15 78"
46
BASE
47
Now: PN03M
HEX NUT M8-1.25
Price
N/A
48
FLANGE HEX NUT M4-.7
49
Now: PW02M
FLAT WASHER 5MM
Price
N/A
50
Now: PS07M
PHLP HD SCR M4-.7 X 8
Price
N/A

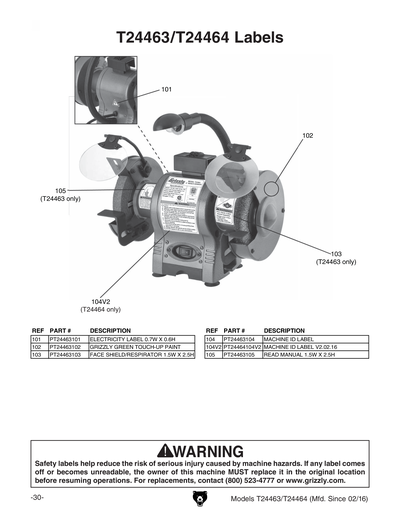

101
ELECTRICITY 0.7W X 0.6H
Price
N/A
102
N/S GRIZZLY GREEN G1023S
Price
N/A
103
FACE SHIELD/RESPIRATOR 1.5W X 2.5H
Price
N/A
104
MACHINE ID LABEL
105
READ MANUAL 1.5W X 2.5H
Price
N/A
