Parts for T25937 5" Rotary Table

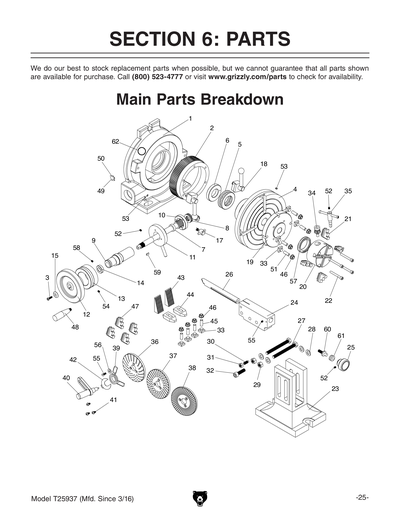

Parts Diagrams for T25937 - 5" Rotary Table

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

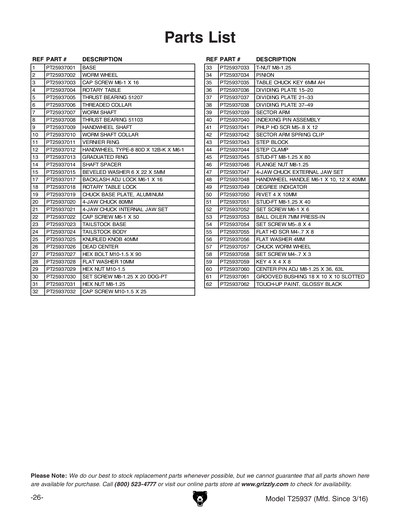

Parts List for Parts for T25937 5" Rotary Table

1
BASE
$72.45
Enter quantity between 1 and 99
2
WORM WHEEL
$36.25
Enter quantity between 1 and 99
3
CAP SCREW M6-1 X 16
Price
N/A
4
ROTARY TABLE
$72.45
Enter quantity between 1 and 99
5
THRUST BEARING 51207
$10.90
Enter quantity between 1 and 99
6
THREADED COLLAR
$10.90
Enter quantity between 1 and 99
7
WORM
Price
N/A
8
THRUST BEARING 51103
Price
N/A
9
HANDWHEEL SHAFT
$14.50
Enter quantity between 1 and 99
10
THREADED COLLAR
Price
N/A
11
VERNIER RING
Price
N/A
12
HANDWHEEL TYPE-8 80D X 12B-K X M6-1
$18.15
Enter quantity between 1 and 99
13
GRADUATE COLLAR
Price
N/A
14
SHAFT SPACER
$10.90
Enter quantity between 1 and 99
15
HANDWHEEL WASHER
Price
N/A
17
BACKLASH ADJ LOCK M6-1 X 16
$7.25
Enter quantity between 1 and 99
18
ROTARY TABLE LOCK
$5.50
Enter quantity between 1 and 99
19
CHUCK BASE PLATE, ALUMINUM
$36.25
Enter quantity between 1 and 99
20
4-JAW CHUCK 80MM
$177.55
Enter quantity between 1 and 99
21
4-JAW CHUCK INTERNAL JAW SET
$43.50
Enter quantity between 1 and 99
22
CAP SCREW M6-1 X 50
Price
N/A
23
TAILSTOCK BASE
$36.25
Enter quantity between 1 and 99
24
TAILSTOCK BODY
$36.25
Enter quantity between 1 and 99
25
KNURLED KNOB 40MM
$10.90
Enter quantity between 1 and 99
26
DEAD CENTER
$9.10
Enter quantity between 1 and 99
27
HEX BOLT M10-1.5 X 90
Price
N/A
28
Now: PW04M
FLAT WASHER 10MM
Price
N/A
29
Now: PN02M
HEX NUT M10-1.5
Price
N/A
30
ALIGNMENT SCREW M8-1.25 X 20 DOG-PT
$3.65
Enter quantity between 1 and 99
31
Now: PN03M
HEX NUT M8-1.25
Price
N/A
32
CAP SCREW M10-1.5 X 25
Price
N/A
33
T-NUT M8-1.25
$9.10
Enter quantity between 1 and 99
34
PINION
$14.50
Enter quantity between 1 and 99
35
TABLE CHUCK KEY 6MM AH
$5.50
Enter quantity between 1 and 99
36
DIVIDING PLATE 15-20
Price
N/A
37
DIVIDING PLATE 21-33
$36.25
Enter quantity between 1 and 99
38
DIVIDING PLATE 37-49
$36.25
Enter quantity between 1 and 99
39
SECTOR ARM
Price
N/A
40
CRANK HANDLE
Price
N/A
41
Now: PS08M
PHLP HD SCR M5-.8 X 12
Price
N/A
42
SECTOR ARM SPRING CLIP
$5.50
Enter quantity between 1 and 99
43
STEP BLOCK
$9.10
Enter quantity between 1 and 99
44
STEP CLAMP
$9.10
Enter quantity between 1 and 99
45
STUD-FT M8-1.25 X 80
$5.50
Enter quantity between 1 and 99
46
FLANGE NUT M8-1.25
Price
N/A
47
4-JAW CHUCK EXTERNAL JAW SET
$43.50
Enter quantity between 1 and 99
48
HANDWHEEL HANDLE M6-1 X 10, 12 X 40MM
$18.15
Enter quantity between 1 and 99
49
DEGREE INDICATOR
$10.90
Enter quantity between 1 and 99
50
RIVET 4 X 10MM BLIND, STEEL
Price
N/A
51
STUD-FT M8-1.25 X 40
$9.10
Enter quantity between 1 and 99
52
SET SCREW M6-1 X 6
Price
N/A
53
BALL OILER 7MM PRESS-IN
Price
N/A
54
SET SCREW M5-.8 X 4
Price
N/A
55
FLAT HD SCR M4-.7 X 8
Price
N/A
56
Now: PW05M
FLAT WASHER 4MM
Price
N/A
57
CHUCK WORM WHEEL
$22.95
Enter quantity between 1 and 99
58
SET SCREW M4-.7 X 3
$5.50
Enter quantity between 1 and 99
59
Now: PK65M
KEY 4 X 4 X 8
Price
N/A
60
CENTER PIN ADJ M8-1.25 X 36, 63L
$5.50
Enter quantity between 1 and 99
61
GROOVED BUSHING 18 X 10 X 10 SLOTTED
$5.50
Enter quantity between 1 and 99
62
GLOSSY BLACK
Price
N/A
MAN
MANUAL T25937 MFD-03.16 V1.07.16
$11.00
Enter quantity between 1 and 99
