Parts for T25938 - 2-1/4 Ton Floor Jack with LED Light

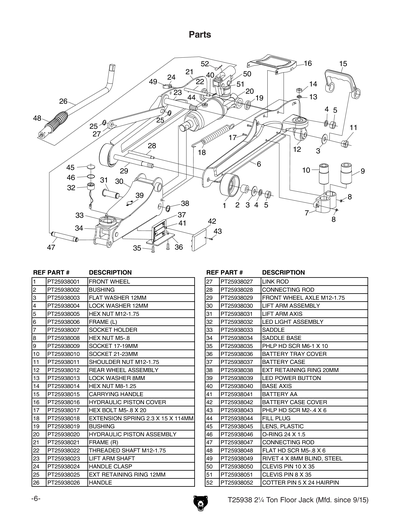

Part Diagram for T25938
Part Diagram for T25938

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
1
FRONT WHEEL
Item is no longer available
Price
N/A
2
BUSHING
Item is no longer available
Price
N/A
3
FLAT WASHER 12MM
Price
N/A
4
LOCK WASHER 12MM
Price
N/A
5
HEX NUT M12-1.75
Price
N/A
6
FRAME (L)
Item is no longer available
Price
N/A
7
SOCKET HOLDER
Item is no longer available
Price
N/A
8
HEX NUT M5-.8
Price
N/A
9
SOCKET 17-19MM
Item is no longer available
Price
N/A
10
SOCKET 21-23MM
Item is no longer available
Price
N/A
11
SHOULDER NUT M12-1.75
Item is no longer available
Price
N/A
12
REAR WHEEL ASSEMBLY
Item is no longer available
Price
N/A
13
LOCK WASHER 8MM
Price
N/A
14
HEX NUT M8-1.25
Price
N/A
15
CARRYING HANDLE
Item is no longer available
Price
N/A
16
HYDRAULIC PISTON COVER
Item is no longer available
Price
N/A
17
HEX BOLT M5-.8 X 20
Price
N/A
18
EXTENSION SPRING 2.5 X 15 X 114MM
Item is no longer available
Price
N/A
19
BUSHING
Item is no longer available
Price
N/A
20
HYDRAULIC PISTON ASSEMBLY
Item is no longer available
Price
N/A
21
FRAME (R)
Item is no longer available
Price
N/A
22
THREADED SHAFT M12-1.75
Item is no longer available
Price
N/A
23
LIFT ARM SHAFT
Item is no longer available
Price
N/A
24
HANDLE CLASP
Item is no longer available
Price
N/A
25
EXT RETAINING RING 12MM
Price
N/A
26
HANDLE
Item is no longer available
Price
N/A
27
LINK ROD
Item is no longer available
Price
N/A
28
CONNECTING ROD
Item is no longer available
Price
N/A
29
FRONT WHEEL AXLE M12-1.75
Item is no longer available
Price
N/A
30
LIFT ARM ASSEMBLY
Item is no longer available
Price
N/A
31
LIFT ARM AXIS
Item is no longer available
Price
N/A
32
LED LIGHT ASSEMBLY
Item is no longer available
Price
N/A
33
SADDLE
Item is no longer available
Price
N/A
34
SADDLE BASE
Item is no longer available
Price
N/A
35
PHLP HD SCR M6-1 X 10
Price
N/A
36
BATTERY TRAY COVER
Item is no longer available
Price
N/A
37
BATTERY CASE
Item is no longer available
Price
N/A
38
EXT RETAINING RING 20MM
Price
N/A
39
LED POWER BUTTON
Item is no longer available
Price
N/A
40
BASE AXIS
Item is no longer available
Price
N/A
41
BATTERY AA 12PK
Price
N/A
42
BATTERY CASE COVER
Item is no longer available
Price
N/A
43
PHLP HD SCR M2-.4 X 6
Price
N/A
44
FILL PLUG
Item is no longer available
Price
N/A
45
LENS, PLASTIC
Item is no longer available
Price
N/A
46
O-RING 24 X 1.5
Item is no longer available
Price
N/A
47
CONNECTING ROD
Item is no longer available
Price
N/A
48
FLAT HD SCR M5-.8 X 6
Price
N/A
49
*DISCD*RIVET 4 X 8MM BLIND, STEEL
Price
N/A
50
CLEVIS PIN 10 X 35
Item is no longer available
Price
N/A
51
CLEVIS PIN 8 X 35
Item is no longer available
Price
N/A
52
COTTER PIN 5 X 24 HAIRPIN
Item is no longer available
Price
N/A
MAN
MANUAL T25938 MFD-10.15 V1.01.16
Item is no longer available
Price
N/A
