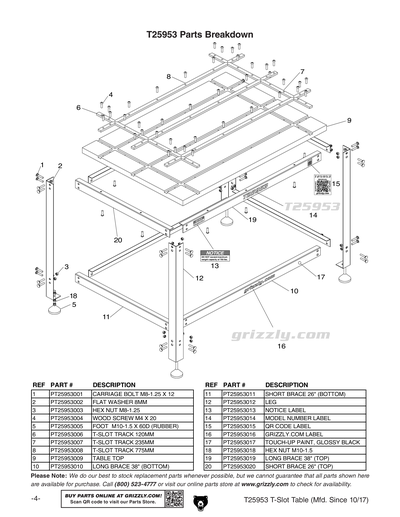

Parts for T25953 T-Slot Work Table with Stand

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

1
CARRIAGE BOLT M8-1.25 X 12
Price
N/A
2
Now: PW01M
FLAT WASHER 8MM
Price
N/A
3
Now: PN03M
HEX NUT M8-1.25
Price
N/A
4
WOOD SCREW M4 X 20
5
FOOT M10-1.5 X 60D (RUBBER)
6
T-SLOT TRACK 120MM (GREEN)
7
T-SLOT TRACK 235MM (GREEN)
8
T-SLOT TRACK 775MM (GREEN)
9
TABLE TOP
10
LONG BRACE 38" (BOTTOM)
11
SHORT BRACE 26" (BOTTOM)
12
LEG
13
NOTICE LABEL
14
MODEL NUMBER LABEL
15
QR CODE LABEL
16
GRIZZLY.COM LABEL
17
GLOSSY BLACK
Price
N/A
18
Now: PN02M
HEX NUT M10-1.5
Price
N/A
19
LONG BRACE 38" (TOP)
20
SHORT BRACE 26" (TOP)
BOX1
COMPLETE BOX 1 OF 2 FOR T25953
MAN
T25953 MANUAL MFD 10.17 V1.01.18
