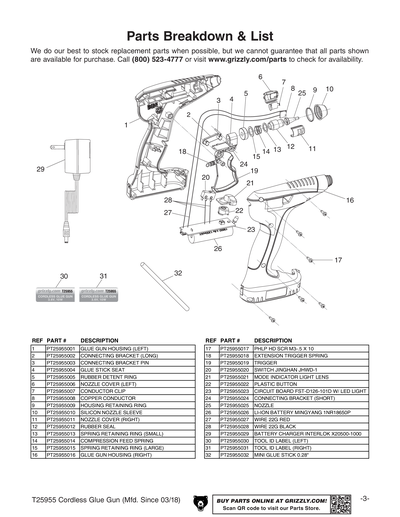

Parts for T25955 Cordless Glue Gun

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

1
GLUE GUN HOUSING (LEFT)
2
CONNECTING BRACKET (LONG)
3
CONNECTING BRACKET PIN
4
GLUE STICK SEAT
5
RUBBER DETENT RING
6
NOZZLE COVER (LEFT)
7
CONDUCTOR CLIP
8
COPPER CONDUCTOR
9
HOUSING RETAINING RING
10
SILICON NOZZLE SLEEVE
11
NOZZLE COVER (RIGHT)
12
RUBBER SEAL
13
SPRING RETAINING RING (SMALL)
14
COMPRESSION FEED SPRING
15
SPRING RETAINING RING (LARGE)
16
GLUE GUN HOUSING (RIGHT)
18
EXTENSION TRIGGER SPRING
19
TRIGGER
20
SWITCH JINGHAN JHWD-1
21
MODE INDICATOR LIGHT LENS
22
PLASTIC BUTTON
23
CIRCUIT BOARD FST-D126-101D W/LED LIGHT
24
CONNECTING BRACKET (SHORT)
25
NOZZLE
26
LI-ION BATTERY MINGYANG 1NR18650P
29
BATTER CHARGER INTERLOK X20500-1000
30
TOOL ID LABEL (LEFT)
31
TOOL ID LABEL (RIGHT)
32
MINI GLUE STICK -.28'
MAN
MANUAL T25955 MFD-03.18 V1.03.18
