Parts for T26300 - Taper Attachment for G0750G

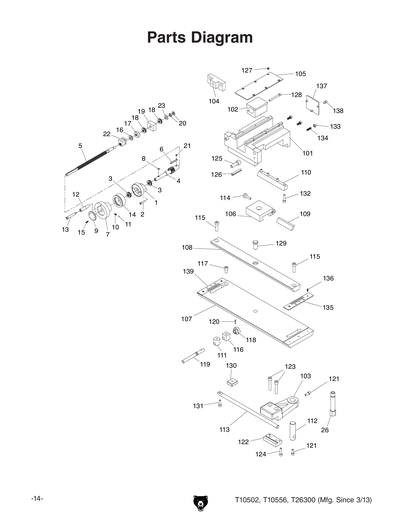

Part Diagram for T26300
Part Diagram for T26300
Part Diagram for T26300
Part Diagram for T26300

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

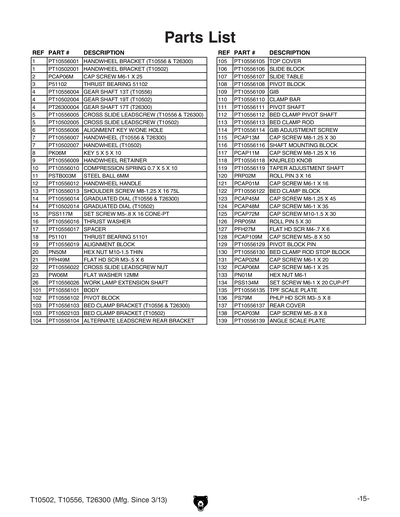

Ref #
Part #
Description
1
HANDWHEEL BRACKET
Price
N/A
2
CAP SCREW M6-1 X 25
Price
N/A
3
THRUST BEARING 51102
Price
N/A
4
GEAR SHAFT 17T
Price
$38.15
5
CROSS SLIDE LEADSCREW
Price
N/A
6
ALIGNMENT KEY W/ONE HOLE
Price
N/A
7
HANDWHEEL
Price
N/A
8
KEY 5 X 5 X 10
Price
N/A
9
HANDWHEEL RETAINER
Price
N/A
10
COMPRESSION SPRING 0.7 X 5 X 10
Price
N/A
11
STEEL BALL 6MM
Price
N/A
12
HANDWHEEL HANDLE
Price
N/A
13
SHOULDER SCREW M8-1.25 X 16 75L
Price
N/A
14
GRADUATED DIAL
Price
N/A
15
SET SCREW M5-.8 X 16 CONE-PT
Price
N/A
16
THRUST WASHER
Price
N/A
17
SPACER
Price
N/A
18
THRUST BEARING 51101
Price
N/A
19
ALIGNMENT BLOCK
Price
N/A
20
HEX NUT M10-1.5 THIN
Price
N/A
21
FLAT HD SCR M3-.5 X 6
Price
N/A
22
CROSS SLIDE LEADSCREW NUT
Price
N/A
23
FLAT WASHER 12MM
Price
N/A
26
WORK LAMP EXTENSION SHAFT
Price
N/A
101
BODY
Price
N/A
102
PIVOT BLOCK
Price
N/A
103
BED CLAMP BRACKET
Price
N/A
104
ALTERNATE LEADSCREW REAR BRACKET
Price
N/A
105
TOP COVER
Price
N/A
106
SLIDE BLOCK
Price
N/A
107
SLIDE TABLE
Price
N/A
108
PIVOT BAR
Price
N/A
109
GIB
Price
N/A
110
CLAMP BAR
Price
N/A
111
PIVOT SHAFT
Price
N/A
112
BED CLAMP PIVOT SHAFT
Price
N/A
113
BED CLAMP ROD
Price
N/A
114
GIB ADJUSTMENT SCREW
Price
N/A
115
CAP SCREW M8-1.25 X 30
Price
N/A
116
SHAFT MOUNTING BLOCK
Price
N/A
117
CAP SCREW M8-1.25 X 16
Price
N/A
118
KNURLED KNOB
Price
N/A
119
TAPER ADJUSTMENT SHAFT
Price
N/A
120
ROLL PIN 3 X 16
Price
N/A
121
CAP SCREW M6-1 X 16
Price
N/A
122
BED CLAMP BLOCK
Price
N/A
123
CAP SCREW M8-1.25 X 45
Price
N/A
124
CAP SCREW M6-1 X 35
Price
N/A
125
CAP SCREW M10-1.5 X 30
Price
N/A
126
ROLL PIN 5 X 30
Price
N/A
127
FLAT HD SCR M4-.7 X 6
Price
N/A
128
CAP SCREW M5-.8 X 50
Price
N/A
129
PIVOT BLOCK PIN
Price
N/A
130
BED CLAMP ROD STOP BLOCK
Price
N/A
131
CAP SCREW M6-1 X 20
Price
N/A
132
CAP SCREW M6-1 X 25
Price
N/A
133
HEX NUT M6-1
Price
N/A
134
SET SCREW M6-1 X 20 CUP POINT
Price
N/A
135
TPF SCALE PLATE
Price
N/A
136
PHLP HD SCR M3-.5 X 8
Price
N/A
137
REAR COVER
Price
N/A
138
CAP SCREW M5-.8 X 8
Price
N/A
139
ANGLE SCALE PLATE
Price
N/A
MAN
MANUAL T10556 MFG-3/13 V1.06.13
Price
N/A
