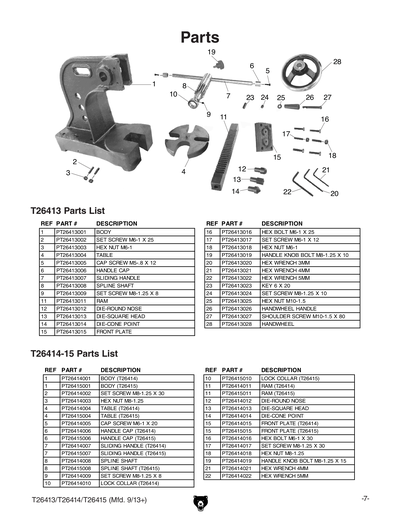

Parts for T26413 1 Ton Arbor Press

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

1
BODY
2
SET SCREW M6-1 X 25
Price
N/A
3
Now: PN01M
HEX NUT M6-1
Price
N/A
4
TABLE
5
CAP SCREW M5-.8 X 12
Price
N/A
6
HANDLE CAP
7
SLIDING HANDLE
8
SPLINE SHAFT
9
SET SCREW M8-1.25 X 8
Price
N/A
10
LOCK COLLAR
11
RAM
12
DIE-ROUND NOSE
12A
DIE SET 3-PC
13
***USE PT26413012A***
14
***USE PT26413012A***
15
FRONT PLATE
16
Now: PB10M
HEX BOLT M6-1 X 25
Price
N/A
17
SET SCREW M6-1 X 12
Price
N/A
18
Now: PN01M
HEX NUT M6-1
Price
N/A
19
HANDLE KNOB BOLT M8-1.25 X 10
20
HEX WRENCH 3MM
Price
N/A
21
HEX WRENCH 4MM
Price
N/A
22
HEX WRENCH 5MM
Price
N/A
23
KEY 6 X 20
24
SET SCREW M8-1.25 X 10
Price
N/A
25
Now: PN02M
HEX NUT M10-1.5
Price
N/A
26
HANDWHEEL HANDLE
27
SHOULDER SCREW M10-1.5 X 80
28
HANDWHEEL
MAN
MANUAL T26413-15 MFD-11/13 V1.11.13
