Parts for T26417 - 1/2 HP Benchtop Oscillating Sander

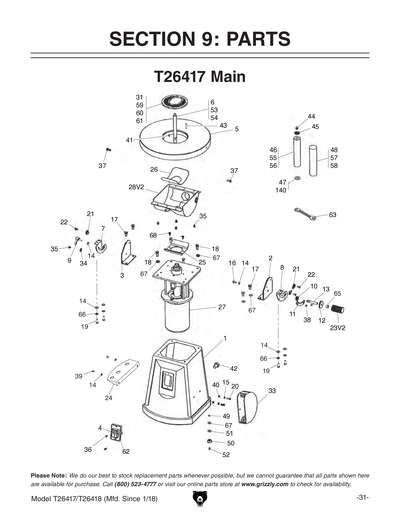

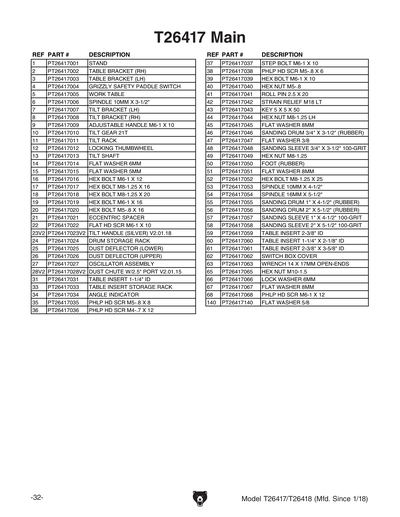

Part Diagram for T26417
Part Diagram for T26417
Part Diagram for T26417
Part Diagram for T26417
Part Diagram for T26417
Part Diagram for T26417
Part Diagram for T26417
Part Diagram for T26417

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
1
STAND
Price
$120.90
2
TABLE BRACKET (RH)
Price
N/A
3
TABLE BRACKET (LH)
Price
N/A
4
Safety Paddle Switch
Price
N/A
5
WORK TABLE
Price
$111.85
6
SPINDLE 10MM X 3-1/2" AND DRUM 3/4" X 3-1/2"
Price
$22.70
7
TILT BRACKET (LH)
Price
N/A
8
TILT BRACKET (RH)
Price
N/A
9
ADJUSTABLE HANDLE M6-1 X 10
Price
$5.20
10
TILT GEAR 21T
Price
$4.35
11
TILT RACK
Price
$2.05
12
LOCKING THUMBWHEEL
Price
$7.60
13
TILT SHAFT
Price
$4.70
14
FLAT WASHER 6MM
Price
N/A
15
FLAT WASHER 5MM
Price
N/A
16
HEX BOLT M6-1 X 12
Price
N/A
17
HEX BOLT M8-1.25 X 16
Price
N/A
18
HEX BOLT M8-1.25 X 20
Price
N/A
19
HEX BOLT M6-1 X 16
Price
N/A
20
HEX BOLT M5-.8 X 16
Price
N/A
21
ECCENTRIC SPACER
Price
$1.90
22
FLAT HD SCR M6-1 X 10
Price
N/A
23
TILT HANDLE (SILVER) V2.01.18
Price
N/A
23V2
TILT HANDLE (SILVER) V2.01.18
Price
$10.85
24
DRUM STORAGE RACK
Price
$11.50
25
DUST DEFLECTOR (LOWER)
Price
$2.90
26
DUST DEFLECTOR (UPPER)
Price
$2.90
27

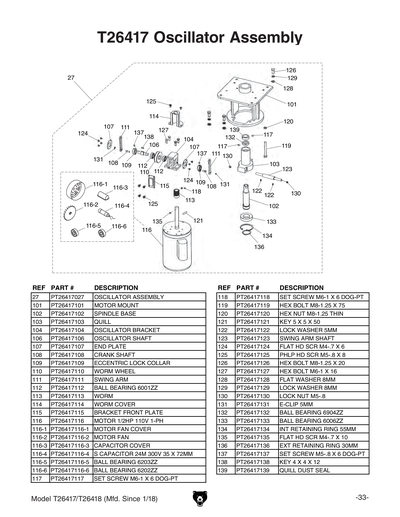

OSCILLATOR ASSEMBLY
Price
$481.60
28
DUST CHUTE W/2" PORT V1
Price
N/A
28V2
DUST CHUTE W/2.5" PORT V2.01.15
Price
$13.70
31
TABLE INSERT 1-1/4" ID
Price
$2.60
33
TABLE INSERT STORAGE RACK
Price
$7.60
34
ANGLE INDICATOR
Price
$1.90
35
PHLP HD SCR M5-.8 X 8
Price
N/A
36
PHLP HD SCR M4-.7 X 12
Price
N/A
37
STEP BOLT M6-1 X 10
Price
$2.90
38
PHLP HD SCR M5-.8 X 6
Price
N/A
39
TAP SCREW M3 X 15
Price
N/A
40
HEX NUT M5-.8
Price
N/A
41
ROLL PIN 2.5 X 20
Price
N/A
42
STRAIN RELIEF M18 TYPE-6 ST
Price
$1.90
43
KEY 5 X 5 X 50
Price
N/A
44
HEX NUT M8-1.25 LH
Price
N/A
45
FLAT WASHER 8MM
Price
N/A
46
SPINDLE 10MM X 3-1/2" AND DRUM 3/4" X 3-1/2"
Price
N/A
47
FLAT WASHER 3/8
Price
N/A
48
SANDING SLEEVE 3/4" X 3-1/2" 100-GRIT
Price
$4.00
49
HEX NUT M8-1.25
Price
N/A
50
FOOT (RUBBER)
Price
$1.90
51
FLAT WASHER 8MM
Price
N/A
52
HEX BOLT M8-1.25 X 25
Price
N/A
53
SPINDLE 10MM AND DRUM 1"
Price
$30.60
54
SPINDLE 16MM AND DRUM 2"
Price
$46.40
55
SPINDLE 10MM AND DRUM 1"
Price
N/A
56
SPINDLE 16MM AND DRUM 2"
Price
N/A
57
SANDING SLEEVE 1" X 4-1/2" 100-GRIT
Price
$5.10
58
SANDING SLEEVE 2" X 5-1/2" 100-GRIT
Price
$6.90
59
TABLE INSERT 2-3/8" ID
Price
$2.60
60
TABLE INSERT 1-1/4" X 2-1/8" ID
Price
$2.60
61
TABLE INSERT 2-3/8" X 3-5/8" ID
Price
$3.25
62
SWITCH BOX COVER
Price
$1.90
63
WRENCH 14 X 17MM OPEN-ENDS
Price
N/A
64
WRENCH 19 X 22MM OPEN ENDS
Price
N/A
65
HEX NUT M10-1.5
Price
N/A
66
LOCK WASHER 6MM
Price
N/A
67
FLAT WASHER 8MM
Price
N/A
68
PHLP HD SCR M6-1 X 12
Price
N/A
101
MOTOR MOUNT
Price
$86.25
102
SPINDLE BASE
Price
$23.75
103
QUILL
Price
$29.90
104
OSCILLATOR BRACKET
Price
$15.15
106
OSCILLATOR SHAFT
Price
$10.75
107
END PLATE
Price
$1.90
108
CRANK SHAFT
Price
N/A
109
ECCENTRIC LOCK COLLAR
Price
$5.75
110
WORM WHEEL
Price
$22.70
111
SWING ARM
Price
$2.25
112
BALL BEARING 6001ZZ
Price
N/A
113
WORM
Price
$9.00
114
WORM COVER
Price
$2.60
115
BRACKET FRONT PLATE
Price
$1.90
116
MOTOR 1/2HP 110V 1-PH
Price
$232.65
116-1
MOTOR FAN COVER
Price
$11.50
116-2
MOTOR FAN
Price
$4.00
116-3
CAPACITOR COVER
Price
$4.00
116-4
S CAPACITOR 24M 300V 1-3/8 X 2-15/16
Price
$11.50
116-5
BALL BEARING 6203ZZ
Price
N/A
116-6
BALL BEARING 6202ZZ
Price
N/A
116-7
BALL BEARING 6203ZZ
Price
N/A
116-8
BALL BEARING 6202ZZ
Price
N/A
117
SET SCREW M6-1 X 6 DOG-PT
Price
N/A
118
SET SCREW M6-1 X 6 DOG-PT
Price
N/A
119
HEX BOLT M8-1.25 X 75
Price
N/A
120
HEX NUT M8-1.25 THIN
Price
N/A
121
KEY 5 X 5 X 50
Price
N/A
122
LOCK WASHER 5MM
Price
N/A
123
SWING ARM SHAFT
Price
N/A
124
FLAT HD SCR M4-.7 X 6
Price
N/A
125
PHLP HD SCR M5-.8 X 8
Price
N/A
126
HEX BOLT M8-1.25 X 20
Price
N/A
127
HEX BOLT M6-1 X 16
Price
N/A
128
FLAT WASHER 8MM
Price
N/A
129
LOCK WASHER 8MM
Price
N/A
130
LOCK NUT M5-.8
Price
N/A
131
E-CLIP 5MM
Price
N/A
132
BALL BEARING 6904ZZ
Price
N/A
133
BALL BEARING 6006ZZ
Price
N/A
134
INT RETAINING RING 55MM
Price
N/A
135
FLAT HD SCR M4-.7 X 10
Price
N/A
136
EXT RETAINING RING 30MM
Price
N/A
137
SET SCREW M5-.8 X 6 DOG-PT
Price
N/A
138
KEY 4 X 4 X 12
Price
N/A
139
QUILL DUST SEAL
Price
$6.90
140
FLAT WASHER 5/8
Price
N/A
201

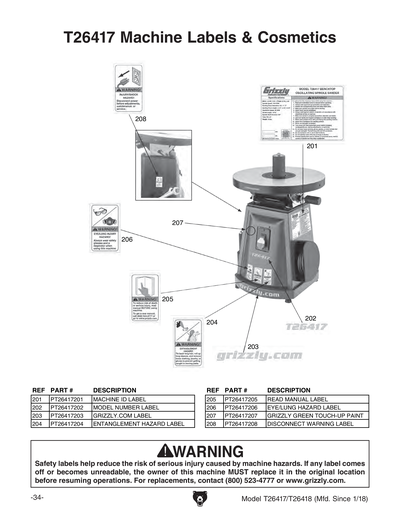

MACHINE ID LABEL
Price
$16.40
202
MODEL NUMBER LABEL
Price
$2.75
203
GRIZZLY.COM LABEL 6.875",BEIGE
Price
N/A
204
ENTANGLEMENT HAZARD 1.5W X 2.5H
Price
N/A
205
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
206
GLASSES/RESPIRATOR 1.5W X 2.5H
Price
N/A
207
N/S GRIZZLY GREEN G1023S
Price
N/A
208
DISCONNECT 110V 1.5W X 2.5H
Price
N/A
MAN
MANUAL T26417-18 MFD-8/13 V1.10.13
Price
$14.65
P
HEX BOLT M5-.8 X 75
Price
$1.49
P
HEX NUT M8-1.25 LH
Price
$1.49
P
ROLL PIN 2.5 X 20
Price
$1.49
P
SET SCREW M6-1 X 6 DOG-PT
Price
$1.49
