Parts for T27139 Laminate Trim Router with Plunge Base

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

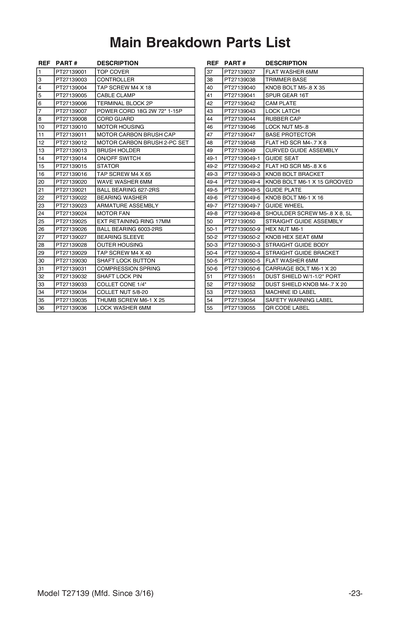

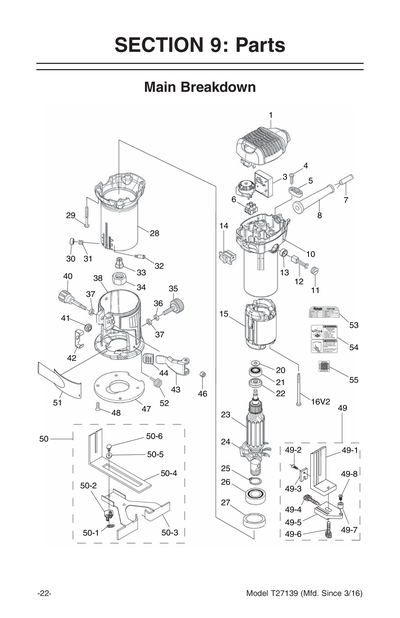

1
TOP COVER
3
CONTROLLER
4
TAP SCREW M4 X 18
Price
N/A
5
CABLE CLAMP
6
TERMINAL BLOCK 2P
7
POWER CORD 18G 2W 72" 1-15P
8
CORD GUARD
10
MOTOR HOUSING
11
MOTOR CARBON BRUSH CAP
12
MOTOR CARBON BRUSH 2-PC SET
13
BRUSH HOLDER
14
ON/OFF SWITCH
15
STATOR
16
TAP SCREW M4 X 65
Price
N/A
16V2
TAP SCREW M4 X 60
Price
N/A
20
*DISCD*WAVE WASHER 6MM
Item is no longer available
Price
N/A
21
BALL BEARING 627-2RS
Price
N/A
22
THRUST WASHER 6MM PLASTIC
23
ARMATURE ASSEMBLY
24
MOTOR FAN
25
Now: PR18M
EXT RETAINING RING 17MM
Price
N/A
26
BALL BEARING 6003-2RS
Price
N/A
27
BEARING SLEEVE
28
OUTER HOUSING
29
TAP SCREW M4 X 40
30
SHAFT LOCK BUTTON
31
COMPRESSION SPRING
32
SHAFT LOCK PIN
33
COLLET CONE 1/4"
34
COLLET NUT 5/8-20
35
THUMB SCREW M6-1 X 25
36
LOCK WASHER 6MM
Price
N/A
37
Now: PW03M
FLAT WASHER 6MM
Price
N/A
38
TRIMMER BASE
40
KNOB BOLT M5-.8 X 35
41
SPUR GEAR 16T
42
CAM PLATE
43
LOCK LATCH
44
RUBBER CAP
46
LOCK NUT M5-.8
Price
N/A
47
BASE PROTECTOR
48
FLAT HD SCR M4-.7 X 8
Price
N/A
49
CURVED GUIDE ASSEMBLY
49-1
GUIDE SEAT
49-2
FLAT HD SCR M5-.8 X 6
Price
N/A
49-3
KNOB BOLT BRACKET
49-4
KNOB BOLT M6-1 X 15 GROOVED
49-5
GUIDE PLATE
49-6
KNOB BOLT M6-1 X 16
49-7
GUIDE WHEEL
49-8
SHOULDER SCREW M5-.8 X 8, 5L
50
STRAIGHT GUIDE ASSEMBLY
50-2
KNOB HEX SEAT 6MM
Price
N/A
50-3
STRAIGHT GUIDE BODY
50-4
STRAIGHT GUIDE BRACKET
50-5
Now: PW03M
FLAT WASHER 6MM
Price
N/A
50-6
CARRIAGE BOLT M6-1 X 20
Price
N/A
50-9
Now: PN01M
HEX NUT M6-1
Price
N/A
51
DUST SHIELD W/1-1/2" PORT
52
DUST SHIELD KNOB M4-.7 X 20
53
MACHINE ID LABEL
54
SAFETY WARNING LABEL
55
QR CODE LABEL

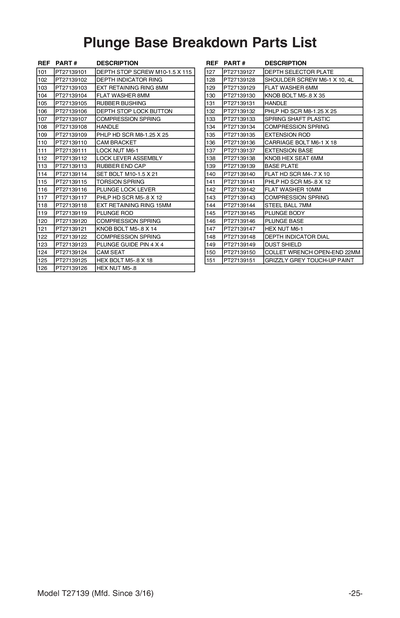

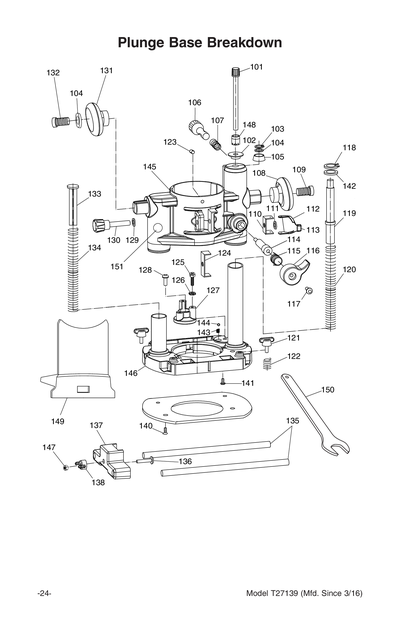

101
DEPTH STOP SCREW M10-1.5 X 115
102
DEPTH INDICATOR RING
103
Now: PR39M
EXT RETAINING RING 8MM
Price
N/A
104
Now: PW01M
FLAT WASHER 8MM
Price
N/A
105
RUBBER BUSHING
106
DEPTH STOP LOCK BUTTON
107
COMPRESSION SPRING
108
HANDLE
109
Now: PS32M
PHLP HD SCR M8-1.25 X 25
Price
N/A
110
CAM PLATE
Price
N/A
111
LOCK NUT M6-1
Price
N/A
112
LOCK LATCH
Price
N/A
113
RUBBER CAP
Price
N/A
114
SET BOLT M10-1.5 X 21
115
TORSION SPRING
116
PLUNGE LOCK LEVER
117
Now: PS08M
PHLP HD SCR M5-.8 X 12
Price
N/A
118
Now: PR05M
EXT RETAINING RING 15MM
Price
N/A
119
PLUNGE ROD
120
COMPRESSION SPRING
121
KNOB BOLT M5-.8 X 14
122
COMPRESSION SPRING
123
PLUNGE GUIDE PIN 4 X 4
124
CAM SEAT
125
HEX BOLT M5-.8 X 18
126
Now: PN06M
HEX NUT M5-.8
Price
N/A
127
DEPTH SELECTOR PLATE
128
SHOULDER SCREW M6-1 X 10, 4L
129
Now: PW03M
FLAT WASHER 6MM
Price
N/A
130
KNOB BOLT M5-.8 X 35
Price
N/A
131
HANDLE
Price
N/A
132
Now: PS32M
PHLP HD SCR M8-1.25 X 25
Price
N/A
133
SPRING SHAFT PLASTIC
134
COMPRESSION SPRING
135
EXTENSION ROD
136
CARRIAGE BOLT M6-1 X 18
Price
N/A
137
EXTENSION BASE
138
KNOB HEX SEAT 6MM
139
BASE PLATE
140
FLAT HD SCR M4-.7 X 10
Price
N/A
141
Now: PS08M
PHLP HD SCR M5-.8 X 12
Price
N/A
142
Now: PW04M
FLAT WASHER 10MM
Price
N/A
143
COMPRESSION SPRING
144
STEEL BALL 7MM
Price
N/A
145
PLUNGE BODY
146
PLUNGE BASE
147
Now: PN01M
HEX NUT M6-1
Price
N/A
148
DEPTH INDICATOR DIAL
149
DUST SHIELD
150
COLLET WRENCH OPEN-END 22MM
151
GREY PUTTY REF G0504
Price
N/A
152
MANUAL T27139 MFD-12.14 V1.12.14
