Parts for T27156 - Top-Load Sandblasting Cabinet

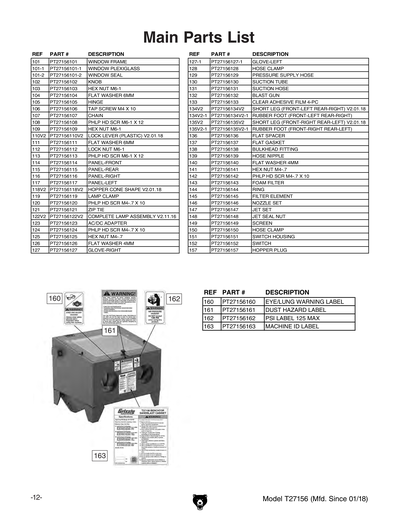

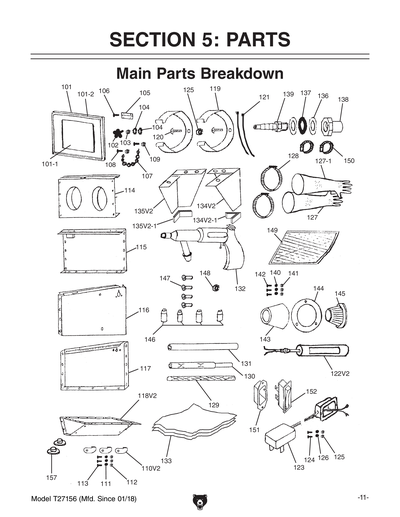

Part Diagram for T27156
Part Diagram for T27156
Part Diagram for T27156
Part Diagram for T27156

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
1
BOX FOR T27156
Price
$22.35
101
WINDOW FRAME
Price
$32.00
101-1
WINDOW PLEXIGLASS
Price
$30.20
101-2
WINDOW SEAL
Price
$7.60
102
KNOB
Price
$3.25
103
HEX NUT M6-1
Price
N/A
104
FLAT WASHER 6MM
Price
N/A
105
HINGE
Price
$6.15
106
TAP SCREW M4 X 10
Price
N/A
107
CHAIN
Price
$3.25
108
PHLP HD SCR M6-1 X 12
Price
N/A
109
HEX NUT M6-1
Price
N/A
110
LOCK LEVER (METAL) V1
Price
$3.25
110V2
LOCK LEVER (PLASTIC) V2.01.18
Price
$4.00
111
FLAT WASHER 6MM
Price
N/A
112
LOCK NUT M6-1
Price
N/A
113
PHLP HD SCR M6-1 X 12
Price
$1.90
114
PANEL-FRONT
Price
$75.50
115
PANEL-REAR
Price
$75.50
116
PANEL-RIGHT
Price
$75.50
117
PANEL-LEFT
Price
$75.50
118
HOPPER-CONE SHAPE V2.01.18
Price
N/A
118V2
HOPPER-CONE SHAPE V2.01.18
Price
$55.40
119
LAMP CLAMP
Price
$6.15
120
PHLP HD SCR M4-.7 X 10
Price
N/A
121
ZIP TIE
Price
$6.15
122
COMPLETE LAMP ASSEMBLY V1
Price
$29.15
122V2
COMPLETE LAMP ASSEMBLY V2.11.16
Price
$39.95
123
AC/DC ADAPTER
Price
$22.35
124
PHLP HD SCR M4-.7 X 10
Price
N/A
125
HEX NUT M4-.7
Price
N/A
126
FLAT WASHER 4MM
Price
N/A
127
GLOVE-RIGHT
Price
$11.90
127-1
GLOVE-LEFT
Price
$11.90
128
HOSE CLAMP
Price
$7.20
129
PRESSURE SUPPLY HOSE
Price
$5.75
130
SUCTION TUBE
Price
$8.30
131
SUCTION HOSE
Price
$5.75
132
BLAST GUN
Price
$33.45
133
Sandblaster Protective Film, 4-Pack for T27156
Price
N/A
134
SHORT LEG (FRONT-LEFT REAR-RIGHT)
Price
$9.00
134-1
RUBBER FOOT (4-PACK)
Price
$11.90
134V2
SHORT LEG (FRONT-LT REAR-RT) V2.01.18
Price
$9.00
134V2-1
RUBBER FOOT (FRONT-LEFT REAR-RIGHT)
Price
$5.75
135
SHORT LEG (FRONT-RIGHT REAR-LEFT)
Price
$9.00
135V2
SHORT LEG (FRONT-RT REAR-LT) V2.01.18
Price
$9.00
135V2-1
RUBBER FOOT (FRONT-RIGHT REAR-LEFT)
Price
$5.75
136
FLAT SPACER
Price
$2.20
137
FLAT GASKET
Price
$1.90
138
BULKHEAD FITTING
Price
$6.15
139
HOSE NIPPLE
Price
$3.25
140
FLAT WASHER 4MM
Price
N/A
141
HEX NUT M4-.7
Price
N/A
142
PHLP HD SCR M4-.7 X 10
Price
N/A
143
FOAM FILTER
Price
$11.90
144
RING
Price
$3.25
145
FILTER ELEMENT
Price
$14.40
146
Sandblast Tip Set for T27156 and T27157
Price
N/A
147
JET SET
Price
$13.70
148
JET SEAL NUT
Price
$6.15
149
SCREEN
Price
$25.60
150
HOSE CLAMP
Price
$3.25
151
SWITCH HOUSING
Price
$6.15
152
SWITCH
Price
$7.20
157
HOPPER PLUG
Price
$4.70
160
GLASSES/RESPIRATOR 1.5W X 2.5H
Price
N/A
161
DUST HAZARD LABEL
Price
$4.10
162
PSI LABEL 125 MAX
Price
$1.25
163
MACHINE ID LABEL
Price
$16.40
MAN
MANUAL T27156 MFD-12.17 V1.01.15
Price
$15.75
MANV2
MANUAL T27156 MFD-01.18+ V2.01.18
Price
$15.75
