Parts for T27157 - Sandblasting Cabinet

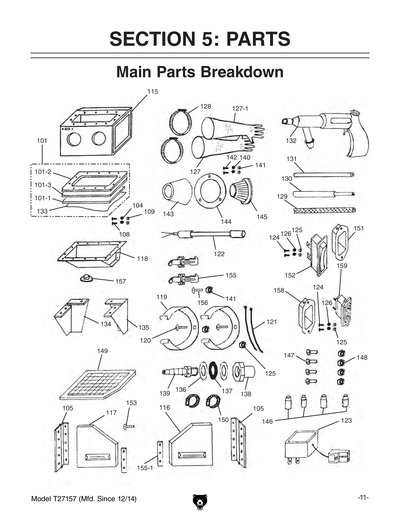

Part Diagram for T27157

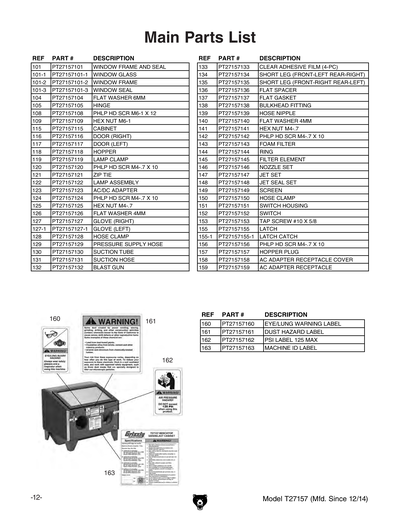

Part Diagram for T27157
Part Diagram for T27157
Part Diagram for T27157

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
1
BOX FOR T27157
Price
$22.35
101-1
PLEXIGLASS WINDOW
Price
$24.85
101-2
WINDOW FRAME
Price
$11.20
101-3
WINDOW SEAL
Price
$5.45
104
FLAT WASHER 6MM
Price
N/A
105
HINGE V1
Price
$4.70
105V2
HINGE V2.03.24
Price
$17.35
108
PHLP HD SCR M6-1 X 12
Price
N/A
109
HEX NUT M6-1
Price
N/A
115
CABINET V1
Price
$133.70
115V2
CABINET V2.03.24
Price
$121.00
116
DOOR (RIGHT)
Price
$53.20
117
DOOR (LEFT)
Price
$46.40
118
HOPPER, CONE SHAPE V2.01.18
Price
N/A
118V2
HOPPER, CONE SHAPE V2.01.18
Price
$68.70
118V3
HOPPER, CONE SHAPE V3.03.24
Price
$76.90
119
LAMP CLAMP
Price
$1.90
120
PHLP HD SCR M4-.7 X 10
Price
N/A
121
ZIP TIE
Price
$2.60
122
COMPLETE LAMP ASSEMBLY
Price
$29.15
122V2
LAMP ASSEMBLY LED V2.11.16
Price
$33.45
123
AC/DC ADAPTER
Price
$22.35
124
PHLP HD SCR M4-.7 X 10
Price
N/A
125
HEX NUT M4-.7
Price
N/A
126
FLAT WASHER 4MM
Price
N/A
127
GLOVE (RIGHT)
Price
$16.60
127-1
GLOVE (LEFT)
Price
$16.50
128
HOSE CLAMP
Price
$2.90
129
PRESSURE SUPPLY HOSE
Price
$5.75
130
SUCTION TUBE V1
Price
$9.35
130V2
SUCTION TUBE V2.03.24
Price
$9.65
131
SUCTION HOSE
Price
$5.20
132
BLAST GUN
Price
$33.15
133
Sandblaster Protective Film, 4-Pack for T27157
Price
N/A
134
SHORT LEG (FRONT-LEFT REAR-RIGHT)
Price
$16.50
134V2
SHORT LEG (FRONT-LT REAR-RIGHT) V2.01.18
Price
$9.75
134V2-1
RUBBER FOOT (FRONT-LEFT REAR-RIGHT)
Price
$3.65
134V3
SHORT LEG V3.03.24
Price
$9.65
135
SHORT LEG (FRONT-RIGHT REAR-LEFT)
Price
$16.10
135V2
SHORT LEG (FRONT-RIGHT REAR-LT) V2.01.18
Price
$9.75
135V2-1
RUBBER FOOT (FRONT-RIGHT REAR-LEFT)
Price
$3.65
135V3
SHORT LEG V3.03.24
Price
N/A
136
FLAT SPACER
Price
N/A
137
FLAT GASKET
Price
N/A
138
BULKHEAD FITTING
Price
$4.70
139
HOSE NIPPLE
Price
$2.60
140
FLAT WASHER 4MM
Price
N/A
141
HEX NUT M4-.7
Price
N/A
142
PHLP HD SCR M4-.7 X 10
Price
N/A
143
FOAM FILTER W/ ELEMENT
Price
$14.10
143-1
FOAM FILTER
Price
$11.25
144
RING
Price
$4.70
144V2
RING V2.03.24
Price
$2.95
145
FOAM FILTER W/ ELEMENT
Price
N/A
146
NOZZLE SET
Price
$7.95
147
JET SET (4PCS)
Price
$18.00
148
JET SEAL
Price
$4.70
149
SCREEN V1
Price
$18.00
149V2
SCREEN V2.03.24
Price
$24.10
150
HOSE CLAMP
Price
$3.60
151
SWITCH HOUSING V1
Price
$4.70
151V2
SWITCH HOUSING V2.03.24
Price
$1.90
152
SWITCH
Price
$5.45
153
TAP SCREW #10 X 5/8
Price
N/A
155
LATCH
Price
$4.70
155-1
LATCH CATCH V1
Price
$7.95
155V2-1
LATCH CATCH V2.03.24
Price
$9.65
156
PHLP HD SCR M4-.7 X 10
Price
N/A
157
HOPPER PLUG
Price
$2.60
158
AC ADAPTER RECEPTACLE COVER V1
Price
$4.70
158V2
AC ADAPTER COVER V2.03.24
Price
$14.50
159
AC ADAPTER RECEPTACLE
Price
$4.70
160
GLASSES/RESPIRATOR 1.5W X 2.5H
Price
N/A
161
DUST HAZARD LABEL
Price
$1.25
162
PSI LABEL 125 MAX
Price
$1.25
163
MACHINE ID LABEL
Price
$16.40
MAN
MANUAL T27157 MFD-12.14 V1.01.15
Price
$14.65
