Parts for T27305 - 8" Variable-Speed Grinder with Light

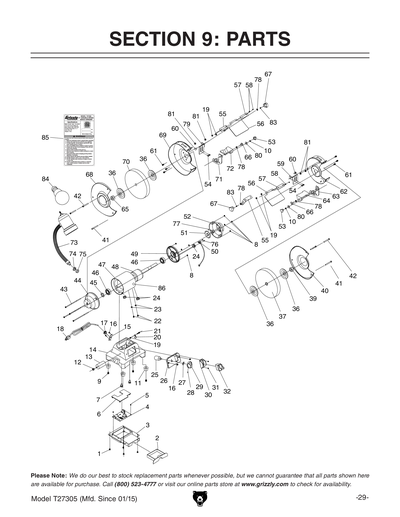

Part Diagram for T27305
Part Diagram for T27305
Part Diagram for T27305
Part Diagram for T27305

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

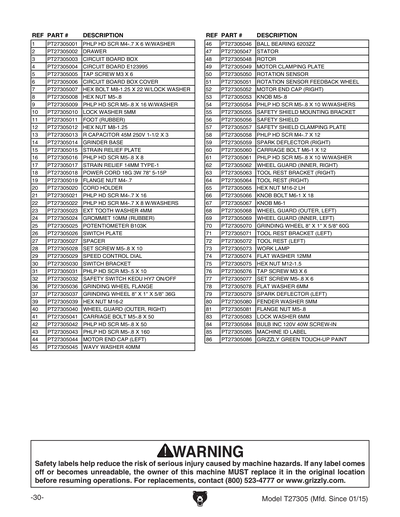

Ref #
Part #
Description
1
PHLP HD SCR M4-.7 X 6 W/WASHER
Price
$1.49
2
DRAWER
Price
$33.30
3
CIRCUIT BOARD BOX
Price
$8.95
4
CIRCUIT BOARD E123955 W/ POTENTIOMETER
Price
N/A
4A
CIRCUIT BOARD E123955 W/ POTENTIOMETER
Price
$34.95
5
TAP SCREW M3 X 6
Price
N/A
6
CIRCUIT BOARD BOX COVER
Price
$8.95
7
HEX BOLT M8-1.25 X 22 W/LOCK WASHER
Price
$1.49
8
HEX NUT M5-.8
Price
N/A
9
PHLP HD SCR M5-.8 X 16 W/WASHER
Price
$1.49
10
LOCK WASHER 5MM
Price
N/A
11
FOOT (RUBBER)
Price
$1.49
12
HEX NUT M8-1.25
Price
N/A
13
R CAPACITOR 45M 250V 1-1/2 X 3
Price
$12.35
14
GRINDER BASE
Price
$27.80
15
STRAIN RELIEF PLATE
Price
$1.49
16
PHLP HD SCR M5-.8 X 8
Price
N/A
17
STRAIN RELIEF 14MM TYPE-1
Price
$1.49
18
POWER CORD 18G 3W 78" 5-15P
Price
$12.60
19
FLANGE NUT M4-.7
Price
N/A
20
CORD HOLDER
Price
$33.30
21
PHLP HD SCR M4-.7 X 16
Price
N/A
22
PHLP HD SCR M4-.7 X 8 W/WASHERS
Price
$9.60
23
EXT TOOTH WASHER 4MM
Price
N/A
24
GROMMET 10MM (RUBBER)
Price
$11.35
25
CIRCUIT BOARD E123955 W/ POTENTIOMETER
Price
N/A
26
SWITCH PLATE
Price
$1.49
27
SPACER
Price
$1.49
28
SET SCREW M5-.8 X 10
Price
N/A
29
SPEED CONTROL DIAL
Price
$1.49
30
SWITCH BRACKET
Price
$1.49
31
PHLP HD SCR M3-.5 X 10
Price
N/A
32
SAFETY SWITCH KEDU HY7 ON/OFF
Price
$5.50
36
GRINDING WHEEL FLANGE
Price
$11.35
37
GRINDING WHEEL 8" X 1" X 5/8" 36G
Price
$17.50
39
HEX NUT M16-2
Price
N/A
40
WHEEL GUARD (OUTER, RIGHT)
Price
$4.00
41
CARRIAGE BOLT M5-.8 X 50
Price
N/A
42
PHLP HD SCR M5-.8 X 50
Price
N/A
43
PHLP HD SCR M5-.8 X 160
Price
$1.49
44
MOTOR END CAP (LEFT)
Price
$7.10
45
WAVY WASHER 40MM
Price
$1.49
46
BALL BEARING 6203ZZ
Price
N/A
47
STATOR
Price
$50.60
48
ROTOR
Price
$23.05
49
MOTOR CLAMPING PLATE
Price
$7.60
50
ROTATION SENSOR
Price
$11.15
51
ROTATION SENSOR FEEDBACK WHEEL
Price
$2.30
52
MOTOR END CAP (RIGHT)
Price
$8.25
53
KNOB M5-.8
Price
$1.49
54
PHLP HD SCR M5-.8 X 10 W/WASHERS
Price
$1.49
55
SAFETY SHIELD MOUNTING BRACKET
Price
$1.49
56
SAFETY SHIELD
Price
$2.50
57
SAFETY SHIELD CLAMPING PLATE
Price
$1.49
58
PHLP HD SCR M4-.7 X 12
Price
N/A
59
SPARK DEFLECTOR (RIGHT)
Price
$1.49
60
CARRIAGE BOLT M6-1 X 12
Price
N/A
61
PHLP HD SCR M5-.8 X 10 W/WASHER
Price
$6.35
62
WHEEL GUARD (INNER, RIGHT)
Price
$12.40
63
TOOL REST BRACKET (RIGHT)
Price
$2.80
64
TOOL REST (RIGHT)
Price
$4.80
65
HEX NUT M16-2 LH
Price
N/A
66
KNOB BOLT M6-1 X 18
Price
$1.49
67
KNOB M6-1
Price
$1.49
68
WHEEL GUARD (OUTER, LEFT)
Price
$4.00
69
WHEEL GUARD (INNER, LEFT)
Price
$12.40
70
GRINDING WHEEL 8" X 1" X 5/8" 60G
Price
$16.10
71
TOOL REST BRACKET (LEFT)
Price
$2.80
72
TOOL REST (LEFT)
Price
$5.20
73
WORK LAMP
Price
$14.50
74
FLAT WASHER 12MM
Price
N/A
75
HEX NUT M12-1.5
Price
N/A
76
TAP SCREW M3 X 6
Price
N/A
77
SET SCREW M5-.8 X 6
Price
N/A
78
FLAT WASHER 6MM
Price
N/A
79
SPARK DEFLECTOR (LEFT)
Price
$1.49
80
FENDER WASHER 5MM
Price
N/A
81
FLANGE NUT M5-.8
Price
N/A
83
LOCK WASHER 6MM
Price
N/A
84
BULB INC 120V 40W SCREW-IN
Price
$18.30
85
MACHINE ID LABEL
Price
$16.40
85V2
MACHINE ID LABEL V2.09.25
Price
$0.00
86
N/S GRIZZLY GREEN G1023S
Price
N/A
87
HANG TAG
Price
$0.00
88
***USE PPAINT-7***
Price
$0.00
MAN
MANUAL T27305 MFD-02.16-08.25 V2.06.15
Price
N/A
MANV2
MANUAL T27305 MFD-02.16-08.25 V2.06.15
Price
$14.65
MANV3
MANUAL T27305 MFD-09.25+ V3.08.25
Price
$0.00
