Parts for T27313 Copy Attachment for G0987, G0733, G0462, G0584, G5979, and W1758

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

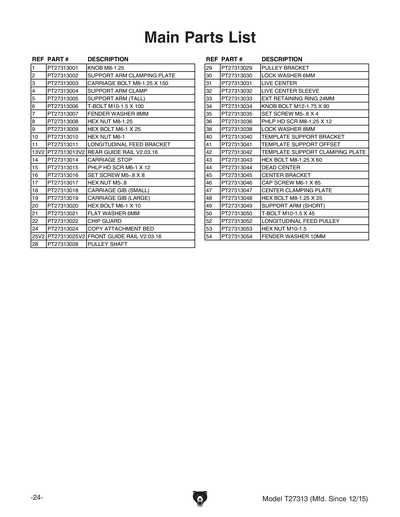

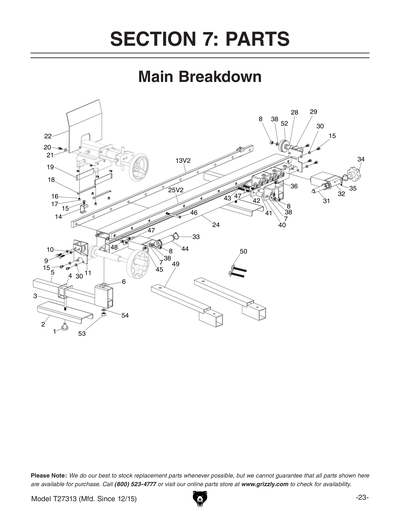

1
KNOB M8-1.25
2
SUPPORT ARM CLAMPING PLATE
3
CARRIAGE BOLT M8-1.25 X 150
4
SUPPORT ARM CLAMP
5
SUPPORT ARM (TALL)
6
T-BOLT M10-1.5 X 115
7
FENDER WASHER 8MM
Price
N/A
8
Now: PN03M
HEX NUT M8-1.25
Price
N/A
9
Now: PB10M
HEX BOLT M6-1 X 25
Price
N/A
10
Now: PN01M
HEX NUT M6-1
Price
N/A
11
LONGITUDINAL FEED BRACKET
13
REAR GUIDE RAIL V1
13-1
REAR GUIDE RAIL (SHORT)
13V2
REAR GUIDE RAIL V2.03.16
14
CARRIAGE STOP
15
Now: PS14M
PHLP HD SCR M6-1 X 12
Price
N/A
16
SET SCREW M5-.8 X 8
Price
N/A
17
Now: PN06M
HEX NUT M5-.8
Price
N/A
18
CARRIAGE GIB (SMALL)
19
CARRIAGE GIB (LARGE)
20
Now: PB04M
HEX BOLT M6-1 X 10
Price
N/A
21
Now: PW03M
FLAT WASHER 6MM
Price
N/A
22
CHIP GUARD
24
COPY ATTACHMENT BED
25
FRONT GUIDE RAIL V1
25-1
FRONT GUIDE RAIL (SHORT)
25V2
FRONT GUIDE RAIL V2.03.16
28
PULLEY SHAFT
29
PULLEY BRACKET
30
LOCK WASHER 6MM
Price
N/A
31
LIVE CENTER
32
LIVE CENTER SLEEVE
33
Now: PR58M
EXT RETAINING RING 24MM
Price
N/A
34
KNOB BOLT M12-1.75 X 90
35
SET SCREW M5-.8 X 4
Price
N/A
36
Now: PS76M
PHLP HD SCR M8-1.25 X 12
Price
N/A
38
LOCK WASHER 8MM
Price
N/A
40
TEMPLATE SUPPORT BRACKET
41
TEMPLATE SUPPORT OFFSET
42
TEMPLATE SUPPORT CLAMPING PLATE
43
Now: PB28M
HEX BOLT M8-1.25 X 60
Price
N/A
44
DEAD CENTER
45
CENTER BRACKET V1
45V2
CENTER BRACKET W/GROOVE V2.02.24
46
CAP SCREW M6-1 X 85
Price
N/A
47
CENTER CLAMPING PLATE
48
Now: PB07M
HEX BOLT M8-1.25 X 25
Price
N/A
49
SUPPORT ARM (SHORT)
50
T-BOLT M10-1.5 X 65
52
LONGITUDINAL FEED PULLEY
53
Now: PN02M
HEX NUT M10-1.5
Price
N/A
54
FENDER WASHER 10MM
Price
N/A

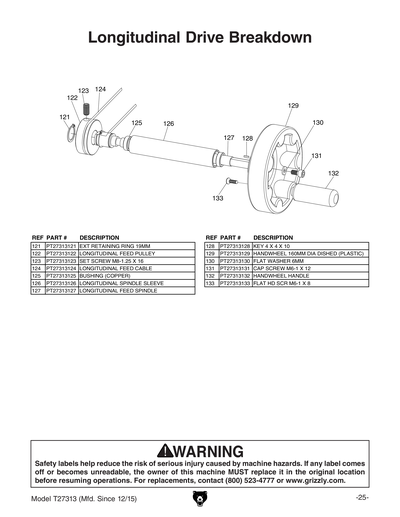

121
Now: PR08M
EXT RETAINING RING 19MM
Price
N/A
122
LONGITUDINAL FEED PULLEY
123
SET SCREW M8-1.25 X 16
Price
N/A
124
LONGITUDINAL FEED CABLE
125
BUSHING (COPPER)
126
LONGITUDINAL SPINDLE SLEEVE
127
LONGITUDINAL FEED SPINDLE
128
Now: PK05M
KEY 4 X 4 X 10
Price
N/A
129
HANDWHEEL W/HANDLE 160MM DIA DISHED
130
Now: PW03M
FLAT WASHER 6MM
Price
N/A
131
CAP SCREW M6-1 X 12
Price
N/A
132
HANDWHEEL W/HANDLE 160MM DIA DISHED
Price
N/A
133
***USE PFH04M***
231
SET SCREW M8-1.25 X 16
Price
N/A
232

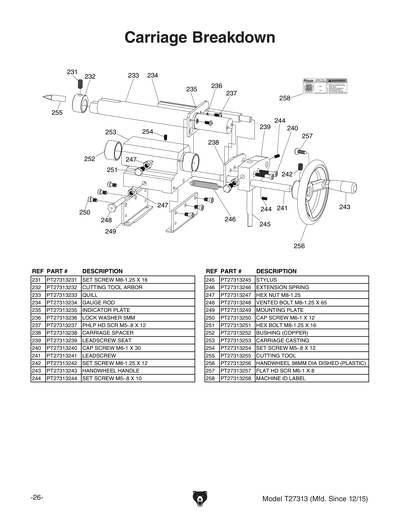

CUTTING TOOL ARBOR
233
QUILL
234
GAUGE ROD
235
INDICATOR PLATE
236
LOCK WASHER 5MM
Price
N/A
237
Now: PS08M
PHLP HD SCR M5-.8 X 12
Price
N/A
238
CARRIAGE SPACER
239
LEADSCREW SEAT
240
CAP SCREW M6-1 X 30
Price
N/A
241
LEADSCREW
242
SET SCREW M8-1.25 X 12
Price
N/A
243
HANDWHEEL W/HANDLE 98MM DIA DISHED
Price
N/A
244
SET SCREW M5-.8 X 10
Price
N/A
245
STYLUS
246
EXTENSION SPRING
247
Now: PN03M
HEX NUT M8-1.25
Price
N/A
248
VENTED BOLT M8-1.25 X 65
249
MOUNTING PLATE
250
CAP SCREW M6-1 X 12
Price
N/A
251
Now: PB03M
HEX BOLT M8-1.25 X 16
Price
N/A
252
BUSHING (COPPER)
253
CARRIAGE CASTING
254
SET SCREW M5-.8 X 12
Price
N/A
255
CUTTING TOOL
256
HANDWHEEL W/HANDLE 98MM DIA DISHED
257
FLAT HD SCR M6-1 X 8
Price
N/A
258
MACHINE ID LABEL
MAN
MANUAL T27313 MFD-01.15 V1.03.15
