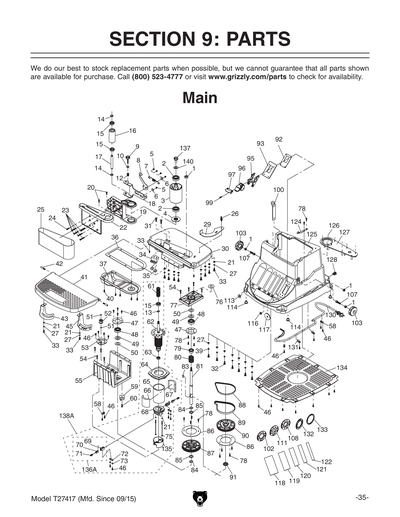

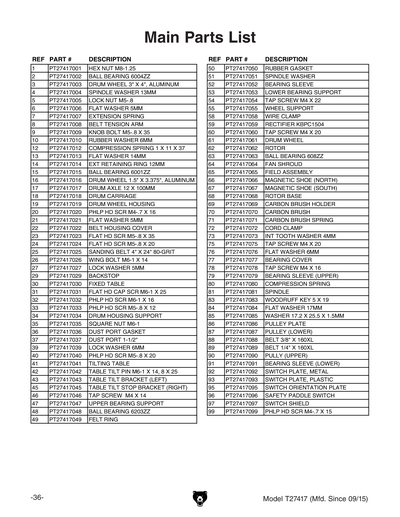

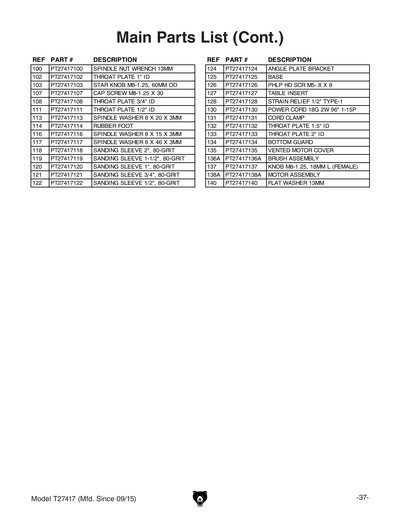

Parts for T27417 Oscillating Edge Belt and Spindle Sander

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

1
Now: PN03M
HEX NUT M8-1.25
Price
N/A
2
BALL BEARING 6004ZZ
Price
N/A
3
DRUM WHEEL 3" X 4", ALUMINUM
4
SPINDLE WASHER 13MM
5
LOCK NUT M5-.8
Price
N/A
6
Now: PW02M
FLAT WASHER 5MM
Price
N/A
7
EXTENSION SPRING
8
BELT TENSION ARM
9
KNOB BOLT M5-.8 X 35
10
RUBBER WASHER 6MM
12
COMPRESSION SPRING 1 X 11 X 37
13
Now: PW10M
FLAT WASHER 14MM
Price
N/A
14
Now: PR03M
EXT RETAINING RING 12MM
Price
N/A
15
BALL BEARING 6001ZZ
Price
N/A
16
DRUM WHEEL 1.5" X 3.375", ALUMINUM
17
DRUM AXLE 12 X 100MM
18
DRUM CARRIAGE
19
DRUM WHEEL HOUSING
20
Now: PS56M
PHLP HD SCR M4-.7 X 16
Price
N/A
21
Now: PW02M
FLAT WASHER 5MM
Price
N/A
22
BELT HOUSING COVER
23
FLAT HD SCR M5-.8 X 35
24
FLAT HD SCR M5-.8 X 20
Price
N/A
25
SANDING BELT 4" X 24" 80-GRIT
26
WING BOLT M6-1 X 14
27
LOCK WASHER 5MM
Price
N/A
29
BACKSTOP
30
FIXED TABLE
31
FLAT HD CAP SCR M6-1 X 25
32
Now: PS11M
PHLP HD SCR M6-1 X 16
Price
N/A
33
Now: PS08M
PHLP HD SCR M5-.8 X 12
Price
N/A
34
DRUM HOUSING SUPPORT
35
SQUARE NUT M6-1
Price
N/A
36
DUST PORT GASKET
37
DUST PORT 1-1/2"
39
LOCK WASHER 6MM
Price
N/A
40
Now: PS06M
PHLP HD SCR M5-.8 X 20
Price
N/A
41
TILTING TABLE
42
TABLE TILT PIN M6-1 X 14, 8 X 25
43
TABLE TILT BRACKET (LEFT)
45
TABLE TILT STOP BRACKET (RIGHT)
46
TAP SCREW M4 X 14
Price
N/A
47
UPPER BEARING SUPPORT
48
BALL BEARING 6203ZZ
Price
N/A
49
FELT RING
50
RUBBER GASKET
51
SPINDLE WASHER
52
BEARING SLEEVE
53
LOWER BEARING SUPPORT
54
TAP SCREW M4 X 22
Price
N/A
55
WHEEL SUPPORT
58
WIRE CLAMP
59
RECTIFIER KBPC1504
60
TAP SCREW M4 X 20
Price
N/A
61
DRUM WHEEL
62
ROTOR
63
Now: G3845
Bearing - 22mm x 8mm
Price
N/A
64
FAN SHROUD
65
FIELD ASSEMBLY
66
MAGNETIC SHOE (NORTH)
67
MAGNETIC SHOE (SOUTH)
68
ROTOR BASE
69
BRUSH ASSEMBLY
Price
N/A
70
BRUSH ASSEMBLY
Price
N/A
71
BRUSH ASSEMBLY
Price
N/A
72
CORD CLAMP
73
INT TOOTH WASHER 4MM
Price
N/A
75
TAP SCREW M4 X 20
Price
N/A
76
FLAT WASHER 6MM
77
BEARING COVER
78
TAP SCREW M4 X 16
Price
N/A
79
BEARING SLEEVE (UPPER)
80
COMPRESSION SPRING
81
SPINDLE
83
WOODRUFF KEY
Price
N/A
84
Now: PR18M
EXT RETAINING RING 17MM
Price
N/A
85
WASHER 17.2 X 25.5 X 1.5MM
86
PULLEY PLATE
87
PULLEY (LOWER)
88
BELT 3/8" X 160XL
89
BELT 1/4" X 160XL
90
PULLY (UPPER)
91
BEARING SLEEVE (LOWER)
92
SWITCH PLATE, METAL
93
SWITCH PLATE, PLASTIC
95
SWITCH ORIENTATION PLATE
96
Now: G8988
Safety Paddle Switch
Price
N/A
97
SWITCH SHIELD
99
Now: PS21M
PHLP HD SCR M4-.7 X 15
Price
N/A
100
SPINDLE NUT WRENCH 13MM
102
THROAT PLATE SET (5PC)
Price
N/A
102A
THROAT PLATE SET (5PC)
103
STAR KNOB M8-1.25, 60MM OD
107
CAP SCREW M8-1.25 X 30
Price
N/A
108
THROAT PLATE SET (5PC)
Price
N/A
111
THROAT PLATE SET (5PC)
Price
N/A
113
SPINDLE WASHER 8 X 20 X 3MM
114
RUBBER FOOT
116
SPINDLE WASHER 8 X 15 X 3MM
117
SPINDLE WASHER 8 X 46 X 3MM
118
SANDING SLEEVE 2", 80-GRIT
118-1
SANDING DRUM 2"
118-1A
SANDING DRUM ASSEMBLY
118A
SANDING SLEEVE ASSEMBLY
119
SANDING SLEEVE 1-1/2", 80-GRIT
119-1
SANDING DRUM 1-1/2"
120
SANDING SLEEVE 1", 80-GRIT
120-1
SANDING DRUM 1"
121
SANDING SLEEVE 3/4", 80-GRIT
121-1
SANDING DRUM 3/4"
122
SANDING SLEEVE 1/2", 80-GRIT
124
ANGLE PLATE BRACKET
125
BASE
126
Now: PS05M
PHLP HD SCR M5-.8 X 8
Price
N/A
127
TABLE INSERT
128
STRAIN RELIEF 1/2" TYPE-1
130
POWER CORD 18G 2W 96" 1-15P
131
CORD CLAMP
132
THROAT PLATE SET (5PC)
Price
N/A
133
THROAT PLATE SET (5PC)
Price
N/A
134
BOTTOM GUARD
135
VENTED MOTOR COVER
136A
BRUSH ASSEMBLY
137
KNOB M8-1.25, 18MM L (FEMALE)
137A
*SEE EXTENDED DESCRIPTION*
Item is no longer available
Price
N/A
138A
MOTOR ASSEMBLY
139A
EDGE SANDING ATTACHMENT ASSY
140
FLAT WASHER 13 X 20 X 2MM

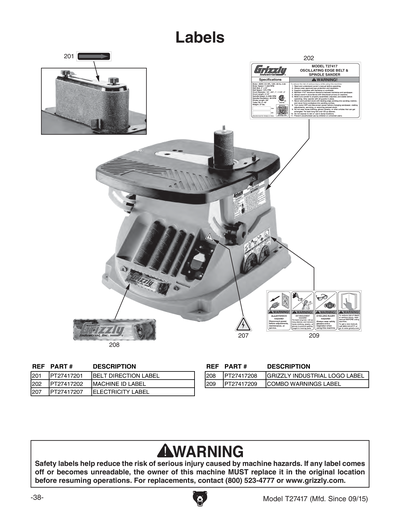

201
BELT DIRECTION LABEL
202
MACHINE ID LABEL
203
GLASSES/RESPIRATOR 1.5W X 2.5H
Price
N/A
204
ENTANGLEMENT HAZARD 1.5W X 2.5H
Price
N/A
205
DISCONNECT 110V 1.5W X 2.5H
Price
N/A
206
READ MANUAL 1.5W X 2.5H
Price
N/A
207
ELECTRICITY 0.7W X 0.6H
Price
N/A
208
GRIZZLY INDUSTRIAL LOGO LABEL
209
COMBO WARNINGS LABEL
MAN
MANUAL T27417 MFD-12.15 V1.01.16
