Parts for T27555 Blade Welder 2.0 kVA

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

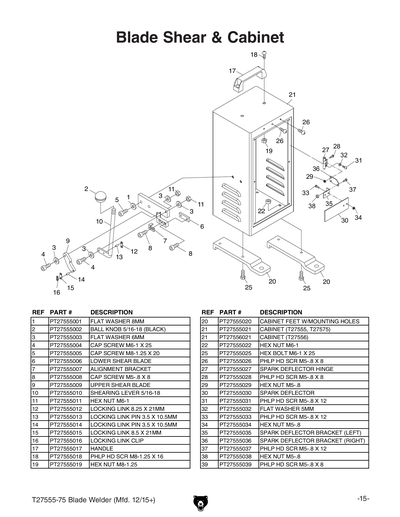

1
Now: PW01M
FLAT WASHER 8MM
Price
N/A
2
BALL KNOB 5/16-18 (BLACK)
Price
N/A
3
Now: PW03M
FLAT WASHER 6MM
Price
N/A
4
CAP SCREW M6-1 X 25
Price
N/A
5
CAP SCREW M8-1.25 X 20
Price
N/A
6
LOWER SHEAR BLADE
7
ALIGNMENT BRACKET
Price
N/A
8
CAP SCREW M5-.8 X 8
Price
N/A
9
UPPER SHEAR BLADE
10
SHEARING LEVER 5/16-18
11
Now: PN01M
HEX NUT M6-1
Price
N/A
12
LOCKING LINK PIN & CLIP SET
Price
N/A
13
LOCKING LINK PIN & CLIP SET
Price
N/A
14
LOCKING LINK PIN & CLIP SET
Price
N/A
15
LOCKING LINK PIN & CLIP SET
Price
N/A
16
LOCKING LINK PIN & CLIP SET
Price
N/A
17
HANDLE
18
Now: PS16M
PHLP HD SCR M8-1.25 X 16
Price
N/A
19
Now: PN03M
HEX NUT M8-1.25
Price
N/A
20
CABINET FOOT (LH) W/MOUNTING HOLES
20-1
CABINET FOOT (RH) W/MOUNTING HOLES
21
CABINET
22
Now: PN01M
HEX NUT M6-1
Price
N/A
25
Now: PB10M
HEX BOLT M6-1 X 25
Price
N/A
26
Now: PS05M
PHLP HD SCR M5-.8 X 8
Price
N/A
27
SPARK DEFLECTOR HINGE
28
Now: PS05M
PHLP HD SCR M5-.8 X 8
Price
N/A
29
Now: PN06M
HEX NUT M5-.8
Price
N/A
30
SPARK DEFLECTOR
31
Now: PS08M
PHLP HD SCR M5-.8 X 12
Price
N/A
32
Now: PW02M
FLAT WASHER 5MM
Price
N/A
33
Now: PS08M
PHLP HD SCR M5-.8 X 12
Price
N/A
34
Now: PN06M
HEX NUT M5-.8
Price
N/A
35
SPARK DEFLECTOR BRACKET (LEFT)
36
SPARK DEFLECTOR BRACKET (RIGHT)
37
Now: PS08M
PHLP HD SCR M5-.8 X 12
Price
N/A
38
Now: PN06M
HEX NUT M5-.8
Price
N/A

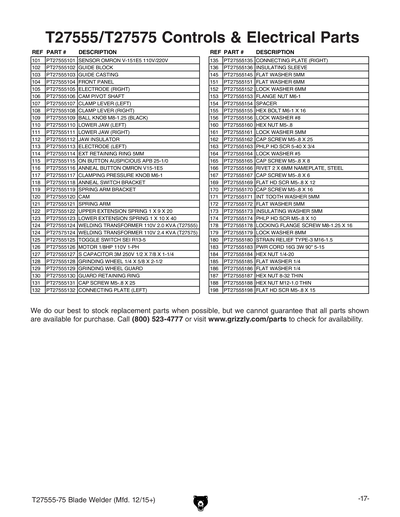

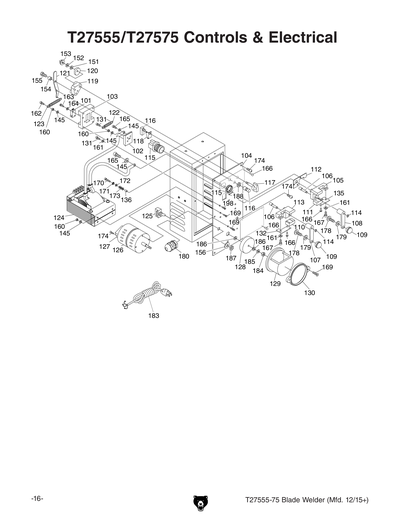

101
SENSOR OMRON V-151E5 110V/220V
102
SLIDE BLOCK
Price
N/A
103
SLIDE SEAT
Price
N/A
104
WELDING PANEL
Price
N/A
105
ELECTRODE (RIGHT)
106
CAM PIVOT SHAFT
Price
N/A
107
CLAMP LEVER (LEFT)
108
CLAMP LEVER (RIGHT)
109
KNOB
Price
N/A
110
LOWER JAW (LEFT)
111
LOWER JAW (RIGHT)
112
JAW INSULATOR
Price
N/A
113
ELECTRODE (LEFT)
Price
N/A
114
Now: PR73M
EXT RETAINING RING 5MM
Price
N/A
115
ON BUTTON AUSPICIOUS APB 25-1/0
116
ANNEAL BUTTON OMRON V15-1E5
117
PRESSURE KNOB
Price
N/A
118
ANNEAL SWITCH BRACKET
119
SPRING ARM BRACKET
120
CAM
Price
N/A
121
SPRING ARM
122
UPPER EXTENSION SPRING 1 X 9 X 20
123
LOWER EXTENSION SPRING 1 X 45 X 10
Price
N/A
124
WELDING TRANSFORMER 110V 2.0 KVA
125
TOGGLE SWITCH SEI R13-5
126
MOTOR 1/8HP 110V 1-PH
127
S CAPACITOR 3M 250V 1/2 X 7/8 X 1-1/4
128
GRINDING WHEEL 1/4 X 5/8 X 2-1/2
Price
N/A
129
GRINDING WHEEL GUARD
130
GUARD RETAINING RING
Price
N/A
131
CAP SCREW M5-.8 X 25
Price
N/A
132
CONNECTING PLATE (LEFT)
135
CONNECTING PLATE (RIGHT)
136
INSULATING SPACER 5MM
Price
N/A
145
Now: PW02M
FLAT WASHER 5MM
Price
N/A
151
Now: PW03M
FLAT WASHER 6MM
Price
N/A
152
LOCK WASHER 6MM
Price
N/A
153
FLANGE NUT M6-1
Price
N/A
154
SPACER
155
Now: PB83M
HEX BOLT M6-1 X 16
Price
N/A
156
Now: PLW13
LOCK WASHER #8
Price
N/A
160
Now: PN06M
HEX NUT M5-.8
Price
N/A
161
LOCK WASHER 5MM
Price
N/A
162
CAP SCREW M5-.8 X 25
Price
N/A
163
Now: PS48
PHLP HD SCR 5-40 X 3/4
Price
N/A
164
Now: PLW11
LOCK WASHER #5
Price
N/A
165
CAP SCREW M5-.8 X 8
Price
N/A
166
RIVET 2 X 6MM NAMEPLATE, STEEL
Price
N/A
167
CAP SCREW M5-.8 X 6
Price
N/A
169
FLAT HD SCR M5-.8 X 12
Price
N/A
170
CAP SCREW M5-.8 X 16
Price
N/A
171
INT TOOTH WASHER 5MM
Price
N/A
172
Now: PW02M
FLAT WASHER 5MM
Price
N/A
173
INSULATING WASHER 5MM
Price
N/A
174
Now: PS09M
PHLP HD SCR M5-.8 X 10
Price
N/A
178
LOCKING FLANGE SCREW M8-1.25 X 16
179
LOCK WASHER 8MM
Price
N/A
180
STRAIN RELIEF TYPE-3 M16-1.5
183
POWER CORD 16G 3W 90" 5-15
184
Now: PN23
HEX NUT 1/4-20 LH
Price
N/A
185
Now: PW06
FLAT WASHER 1/4
Price
N/A
186
Now: PW06
FLAT WASHER 1/4
Price
N/A
187
TOGGLE SWITCH SEI R13-5
Price
N/A
188
HEX NUT M12-1.0 THIN
198
FLAT HD SCR M5-.8 X 15
Price
N/A
200
SPARK DEFLECTOR
201

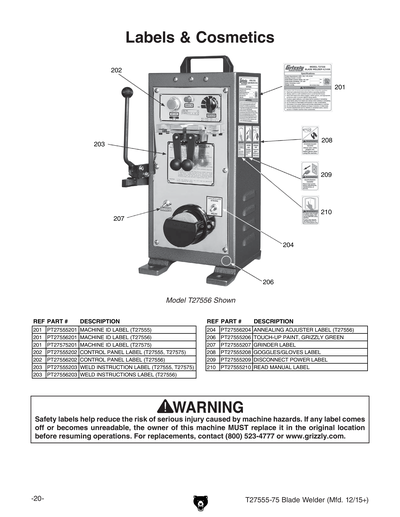

MACHINE ID LABEL
202
CONTROL PANEL LABEL
203
WELDING INSTRUCTIONS LABEL
206
N/S GRIZZLY GREEN G1023S
Price
N/A
207
GRINDER LABEL
208
GOGGLES/GLOVES LABEL
209
DISCONNECT 110V 1.5W X 2.5H
Price
N/A
210
READ MANUAL 1.5W X 2.5H
Price
N/A
MAN
MANUAL T27555-75 MFD-11.15 V1.02.16
