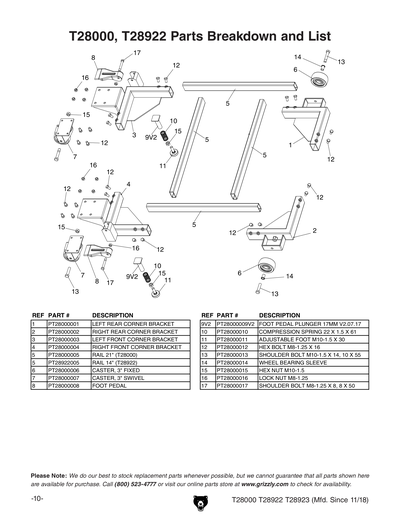

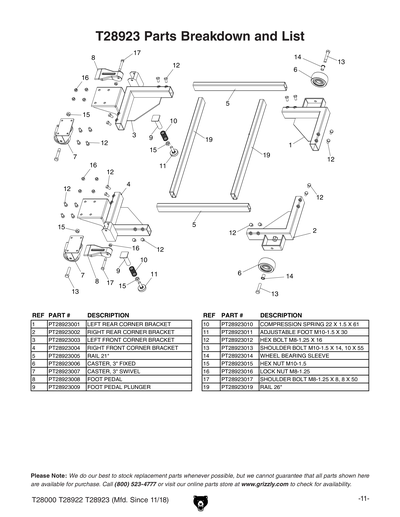

Parts for T28000 Bear Crawl Heavy-Duty Mobile Base

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

1
LEFT REAR CORNER BRACKET
2
RIGHT REAR CORNER BRACKET
3
LEFT FRONT CORNER BRACKET
4
RIGHT FRONT CORNER BRACKET
5
RAIL 21"
6
CASTER, 3" FIXED
7
CASTER, 3" SWIVEL
8
FOOT PEDAL
9
FOOT PEDAL PLUNGER V1
9V2
FOOT PEDAL PLUNGER 17MM V2.07.17
10
COMPRESSION SPRING 22 X 1.5 X 61
11
ADJUSTABLE FOOT M10-1.5 X 30
12
Now: PB03M
HEX BOLT M8-1.25 X 16
Price
N/A
13
SHOULDER BOLT M10-1.5 X 14, 10 X 55
14
WHEEL BEARING SLEEVE
15
Now: PN02M
HEX NUT M10-1.5
Price
N/A
16
LOCK NUT M8-1.25
Price
N/A
17
SHOULDER BOLT M8-1.25 X 8, 8 X 50
18
GRIZZLY.COM LABEL
18
HARDWARE BAG
KIT
LOCK LEVER KIT
MAN
MANUAL T28000 MFD-04.17-11.18 V1.04.17
MANV2
MANUAL T28000 MFD-11.18+ V2.12.18
