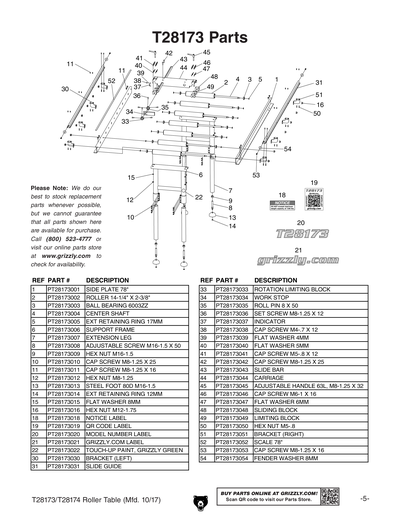

Parts for T28173 14" x 78" Heavy-Duty Roller Table with Work Stop

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

1
SIDE PLATE 78"
2
ROLLER 14 1/4" x 2 3/8"
Price
N/A
3
Now: G3850
Bearing - 35mm x 17mm
Price
N/A
4
CENTER SHAFT
Price
N/A
5
Now: PR18M
EXT RETAINING RING 17MM
Price
N/A
6
SUPPORT FRAME
Price
N/A
7
EXTENSION LEG
Price
N/A
8
ADJUSTABLE SCREW M16-1.5 x 50
Price
N/A
9
Now: PN05M
HEX NUT M16-1.5
Price
N/A
10
CAP SCREW M8-1.25 X 25
Price
N/A
11
CAP SCREW M8-1.25 X 16
Price
N/A
12
Now: PN03M
HEX NUT M8-1.25
Price
N/A
13
FOOT 80D M16-1.5
Price
N/A
14
Now: PR03M
EXT RETAINING RING 12MM
Price
N/A
15
Now: PW01M
FLAT WASHER 8MM
Price
N/A
16
Now: PN09M
HEX NUT M12-1.75
Price
N/A
18
NOTICE LABEL
19
QR CODE LABEL
20
MODEL NUMBER LABEL
21
***USE PGZCOM-38B***
Price
N/A
22
N/S GRIZZLY GREEN G1023S
Price
N/A
30
BRACKET (LEFT)
31
SLIDE GUIDE
33
ROTATION LIMITING BLOCK
34
WORK STOP
35
ROLL PIN 8 X 50
Price
N/A
36
SET SCREW M8-1.25 X 12
Price
N/A
37
INDICATOR
38
CAP SCREW M4-.7 X 12
Price
N/A
39
Now: PW05M
FLAT WASHER 4MM
Price
N/A
40
Now: PW02M
FLAT WASHER 5MM
Price
N/A
41
CAP SCREW M5-.8 X 12
Price
N/A
42
CAP SCREW M8-1.25 X 25
Price
N/A
43
SLIDE BAR
44
CARRIAGE
45
ADJUSTABLE HANDLE 63L, M8-1.25 X 32
46
CAP SCREW M6-1 X 16
Price
N/A
47
Now: PW03M
FLAT WASHER 6MM
Price
N/A
48
SLIDING BLOCK
49
LIMITING BLOCK
50
Now: PN06M
HEX NUT M5-.8
Price
N/A
51
BRACKET (RIGHT)
52
SCALE 78"
53
CAP SCREW M8-1.25 X 16
Price
N/A
54
FENDER WASHER 8MM
Price
N/A
MANUAL
MANUAL T28173 MFD-10.17 V1.11.17
