Parts for T28174 - 14" x 118" Heavy-Duty Roller Table with Work Stop

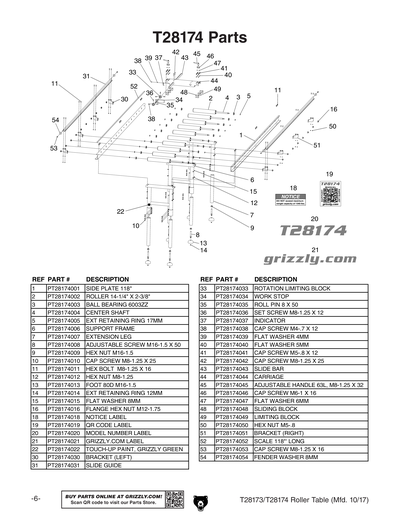

Part Diagram for T28174
Part Diagram for T28174

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
1
Price
$140.20
2
ROLLER 14 1/4" x 2 3/8"
Price
N/A
3
Bearing - 35mm x 17mm
Price
N/A
4
CENTER SHAFT
Price
N/A
5
EXT RETAINING RING 17MM
Price
N/A
6
SUPPORT FRAME
Price
N/A
7
Price
$29.00
8
ADJUSTABLE SCREW M16-1.5 x 50
Price
N/A
9
HEX NUT M16-1.5
Price
N/A
10
CAP SCREW M8-1.25 X 25
Price
N/A
11
HEX BOLT M8-1.25 X 16
Price
N/A
12
HEX NUT M8-1.25
Price
N/A
13
FOOT 80D M16-1.5
Price
N/A
14
EXT RETAINING RING 12MM
Price
N/A
15
FLAT WASHER 8MM
Price
N/A
16
HEX NUT M12-1.75
Price
N/A
18
NOTICE LABEL
Price
N/A
19
Price
$5.65
20
Price
$7.50
21
***USE PGZCOM-38B***
Price
N/A
22
N/S GRIZZLY GREEN G1023S
Price
N/A
30
BRACKET (LEFT)
Price
N/A
31
SLIDE GUIDE
Price
N/A
33
ROTATION LIMITING BLOCK
Price
N/A
34
WORK STOP
Price
N/A
35
ROLL PIN 8 X 50
Price
N/A
36
SET SCREW M8-1.25 X 12
Price
N/A
37
INDICATOR
Price
N/A
38
CAP SCREW M4-.7 X 12
Price
N/A
39
FLAT WASHER 4MM
Price
N/A
40
FLAT WASHER 5MM
Price
N/A
41
CAP SCREW M5-.8 X 12
Price
N/A
42
CAP SCREW M8-1.25 X 25
Price
N/A
43
SLIDE BAR
Price
N/A
44
CARRIAGE
Price
N/A
45
ADJUSTABLE HANDLE 63L, M8-1.25 X 32
Price
N/A
46
CAP SCREW M6-1 X 16
Price
N/A
47
FLAT WASHER 6MM
Price
N/A
48
SLIDING BLOCK
Price
N/A
49
LIMITING BLOCK
Price
N/A
50
HEX NUT M5-.8
Price
N/A
51
BRACKET (RIGHT)
Price
N/A
52
Price
$55.75
53
CAP SCREW M8-1.25 X 16
Price
N/A
54
FENDER WASHER 8MM
Price
N/A
