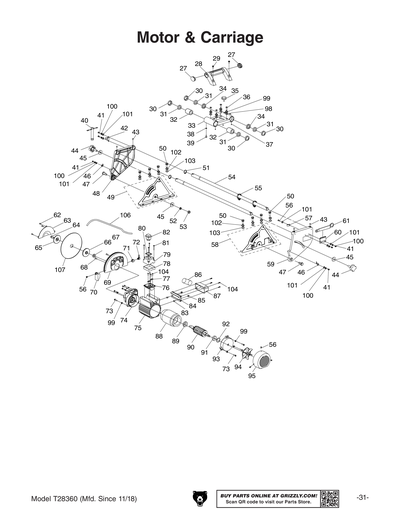

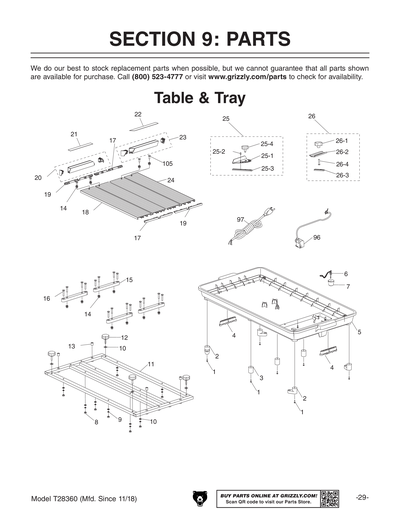

Parts for T28360 7" Overhead Wet-Cutting Tile Saw

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

1
TAP SCREW M4 X 14
Price
N/A
2
FOOT PAD W/EXTENSION
3
FOOT PAD 1" DIA
4
HANDLE INSERT
5
WATER TRAY
6
CHAIN FOR DRAIN PLUG
7
DRAIN PLUG, 26H, 24 X 330MM
8
Now: PN01M
HEX NUT M6-1
Price
N/A
9
LOCK WASHER 6MM
Price
N/A
10
FENDER WASHER 6MM
Price
N/A
11
FRAME
12
KNOB BOLT M6-1 X 23, D38, 6-LOBE
13
BUSHING 12.5 X 12.5MM
14
LOCK NUT M6-1
Price
N/A
15
SUPPORT BLOCK
16
Now: PB29M
HEX BOLT M6-1 X 30
Price
N/A
17
WORK TABLE END COVER 1
18
WORK TABLE (RIGHT)
19
WORK TABLE END COVER 2
20
RIGHT FENCE ASSEMBLY
21
RIGHT SCALE
22
LEFT SCALE
23
LEFT FENCE ASSEMBLY
24
WORK TABLE (LEFT)
25
MITER GAUGE ASSEMBLY
25-1
MITER GAUGE BODY
25-2
ROLL PIN 6 X 10
25-3
GUIDE
25-4
KNOB BOLT M6-1 X 6, D38, 6-LOBE
26
HOLD DOWN BRACKET ASSEMBLY
26-1
KNOB M6-1, D38, 6-LOBE
26-2
CLAMP PLATE
26-3
GUIDE
26-4
T-SLOT BOLT M6-1 X 25
27
END CAP
28
HANDLE
29
FLANGE SCREW M5-.8 X 12
Price
N/A
30
SEALING COVER 30 X 20.5 X 8MM
31
BUSHING 30 X 20 X 7MM
32
LINEAR MOTION BEARING LM20UU
33
CARRIAGE
34
OIL BEARING
35
KNOB BOLT M6-1 X 16, D30, 8-LOBE
36
Now: PS26M
PHLP HD SCR M6-1 X 20
Price
N/A
37
SET SCREW M4-.7 X 6
Price
N/A
38
Now: PW05M
FLAT WASHER 4MM
Price
N/A
39
Now: PS38M
PHLP HD SCR M4-.7 X 10
Price
N/A
40
SOCKET WRENCH 13MM
41
Now: PS56M
PHLP HD SCR M4-.7 X 16
Price
N/A
42
SOCKET WRENCH HOLDER
43
SET SCREW M6-1 X 8
Price
N/A
44
KNOB BOLT M10-1.5 X 30, 12 X 28, 4-LOBE
45
FENDER WASHER 10MM
Price
N/A
46
POINTER
47
SHOULDER SCREW M10-1.5 X 12, 12 X 16
48
SLIDING BAR SUPPORT (FRONT)
49
SUPPORT ASSEMBLY B
50
Now: PB07M
HEX BOLT M8-1.25 X 25
Price
N/A
51
Now: PR09M
EXT RETAINING RING 20MM
Price
N/A
52
LOCK WASHER 10MM
Price
N/A
53
Now: PN02M
HEX NUT M10-1.5
Price
N/A
54
SLIDING BAR
55
PIPE CLAMP
56
Now: PS07M
PHLP HD SCR M4-.7 X 8
Price
N/A
57
CABLE CLAMP
58
SUPPORT ASSEMBLY A
59
SLIDING BAR HOLDER (REAR)
60
WRENCH HOLDER
61
WRENCH CLOSED ENDS 11 X 20
62
FLAT HD SCR M4-.7 X 12
Price
N/A
63
BLADE COVER
64
FLANGE BOLT M8-1.25 X 16
Price
N/A
65
OUTER BLADE FLANGE
66
INNER BLADE FLANGE
67
OIL SEAL WASHER 17MM
68
FLAT HD SCR M5-.8 X 16
Price
N/A
69
BLADE GUARD
70
RUBBER PAD
71
RUBBER SLEEVE
72
HOSE CONNECTOR
73
Now: PS06M
PHLP HD SCR M5-.8 X 20
Price
N/A
74
MOTOR FRONT COVER
75
MOTOR CASE
76
SWITCH COVER (LOWER)
77
PLASTIC PLATE
78
SEALING WASHER
79
SWITCH COVER (UPPER)
80
RUBBER GASKET
81
PHLP HD SCR M4-.7 X 28
82
ON/OFF SWITCH KEDU HY-12
83
Now: PB96M
HEX BOLT M5-.8 X 10
Price
N/A
85
LOCK NUT M5-.8
Price
N/A
86
R CAPACITOR 25M 250V 1-1/2 X 2-5/8
87
CAPACITOR COVER
88
STATOR ASSEMBLY
89
BALL BEARING 6003-2RS
Price
N/A
90
ROTOR ASSEMBLY
91
BALL BEARING 6201-2RS
Price
N/A
92
WAVY WASHER 12MM
93
MOTOR COVER (REAR)
94
FAN
95
FAN COVER
96
WATER PUMP
97
POWER CORD 18G 3W 72" 5-15P
98
Now: PW03M
FLAT WASHER 6MM
Price
N/A
99
LOCK WASHER 6MM
Price
N/A
100
LOCK WASHER 4MM
Price
N/A
101
Now: PW05M
FLAT WASHER 4MM
Price
N/A
102
LOCK WASHER 8MM
Price
N/A
103
Now: PW01M
FLAT WASHER 8MM
Price
N/A
104
TAP SCREW M4 X 14
Price
N/A
105
Now: PB91M
HEX BOLT M6-1 X 18
Price
N/A
106
COOLANT HOSE
107
7" Tile Saw Blade
Price
N/A
201
MACHINE ID LABEL V1
201V2
MACHINE ID LABEL V2.05.24
201V3
MACHINE ID LABEL V3.07.24
202
WARNING LABEL
203
MODEL NUMBER LABEL
204
HANGING WARNING LABEL
205
READ MANUAL 1.5W X 2.5H
Price
N/A
206
EYE/EAR/LUNG WARNING LABEL
207
ELECTRICITY 0.7W X 0.6H
Price
N/A
208
N/S GRIZZLY GREEN G1023S
Price
N/A
MAN
MANUAL T28360 MFD-11.18-04.24 V1.12.18
MANV2
MANUAL T28360 MFD-05.24+ V2.04.24
