Parts for T28370 - 14" x 118" Heavy-Duty Roller Table

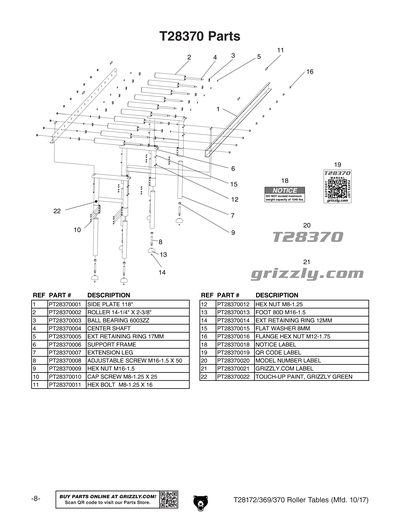

Part Diagram for T28370
Part Diagram for T28370

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
1
SIDE PLATE 118"
Price
N/A
2
ROLLER 14 1/4" x 2 3/8"
Price
N/A
3
Bearing - 35mm x 17mm
Price
N/A
4
CENTER SHAFT
Price
N/A
5
EXT RETAINING RING 17MM
Price
N/A
6
SUPPORT FRAME
Price
N/A
7
EXTENSION LEG
Price
N/A
8
ADJUSTABLE SCREW M16-1.5 x 50
Price
N/A
9
HEX NUT M16-1.5
Price
N/A
10
CAP SCREW M8-1.25 X 25
Price
N/A
11
CAP SCREW M8-1.25 X 16
Price
N/A
12
HEX NUT M8-1.25
Price
N/A
13
FOOT 80D M16-1.5
Price
N/A
14
EXT RETAINING RING 12MM
Price
N/A
15
FLAT WASHER 8MM
Price
N/A
16
FLANGE NUT M12-1.75
Price
N/A
18
NOTICE LABEL
Price
N/A
19
Price
$3.75
20
Price
$7.50
21
***USE PGZCOM-38B***
Price
N/A
22
N/S GRIZZLY GREEN G1023S
Price
N/A
MAN
MANUAL T28172 MFD-10.17 V1.11.17
Price
N/A
