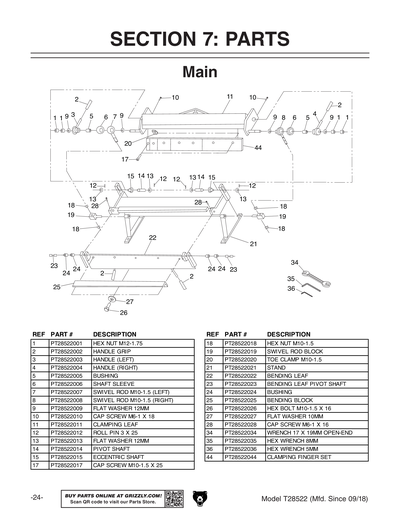

Parts for T28522 - 24" Pan and Box Brake
If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.
Please note: All parts ship out of our Springfield, Missouri facility.
| Ref # | Part # | Description | Price | Qty | |
|---|---|---|---|---|---|
| 1 |
PT28522001
Replaced By PN09M
|
HEX NUT M12-1.75
|
N/A | View Replacement | |
| 2 | PT28522002 | HANDLE GRIP | $1.50 | ||
| 3 | PT28522003 | HANDLE (LEFT) | $9.00 | ||
| 4 | PT28522004 | HANDLE (RIGHT) | $9.00 | ||
| 5 | PT28522005 | BUSHING | $6.00 | ||
| 6 | PT28522006 | SHAFT SLEEVE | $6.00 | ||
| 7 | PT28522007 | SWIVEL ROD M10-1.5 (LEFT) | $9.00 | ||
| 8 | PT28522008 | SWIVEL ROD M10-1.5 (RIGHT) | $9.00 | ||
| 9 |
PT28522009
Replaced By PW06M
|
FLAT WASHER 12MM
|
N/A | View Replacement | |
| 10 |
PT28522010
Replaced By PCAP74M
|
CAP SCREW M6-1 X 18
|
N/A | View Replacement | |
| 11 | PT28522011 | CLAMPING LEAF | $90.00 | ||
| 12 |
PT28522012
Replaced By PRP16M
|
ROLL PIN 3 X 25
|
N/A | View Replacement | |
| 13 |
PT28522013
Replaced By PW06M
|
FLAT WASHER 12MM
|
N/A | View Replacement | |
| 14 | PT28522014 | PIVOT SHAFT | $6.00 | ||
| 15 | PT28522015 | ECCENTRIC SHAFT | $6.00 | ||
| 17 |
PT28522017
Replaced By PCAP64M
|
CAP SCREW M10-1.5 X 25
|
N/A | View Replacement | |
| 18 |
PT28522018
Replaced By PN02M
|
HEX NUT M10-1.5
|
N/A | View Replacement | |
| 19 | PT28522019 | SWIVEL ROD BLOCK | $9.00 | ||
| 20 | PT28522020 | TOE CLAMP M10-1.5 | $6.00 | ||
| 21 | PT28522021 | STAND | $90.00 | ||
| 22 | PT28522022 | BENDING LEAF | $60.00 | ||
| 23 | PT28522023 | BENDING LEAF PIVOT SHAFT | $9.00 | ||
| 24 | PT28522024 | BUSHING | $6.00 | ||
| 25 | PT28522025 | BENDING BLOCK | $15.00 | ||
| 26 |
PT28522026
Replaced By PB70M
|
HEX BOLT M10-1.5 X 16
|
N/A | View Replacement | |
| 27 |
PT28522027
Replaced By PW04M
|
FLAT WASHER 10MM
|
N/A | View Replacement | |
| 28 |
PT28522028
Replaced By PCAP01M
|
CAP SCREW M6-1 X 16
|
N/A | View Replacement | |
| 29 | PT28522029 | CLAMPING FINGER 1" | $6.00 | ||
| 30 | PT28522030 | CLAMPING FINGER 2" | $9.00 | ||
| 31 | PT28522031 |
*DISCD*CLAMPING FINGER 3"
Item is no longer available
|
N/A | ||
| 32 | PT28522032 | CLAMPING FINGER 8" | $18.00 | ||
| 33 | PT28522033 | CLAMPING FINGER 10" | $24.00 | ||
| 34 |
PT28522034
Replaced By PWR1719
|
WRENCH 17 X 19MM OPEN-ENDS
|
N/A | View Replacement | |
| 35 |
PT28522035
Replaced By PAW08M
|
HEX WRENCH 8MM
|
N/A | View Replacement | |
| 36 |
PT28522036
Replaced By PAW05M
|
HEX WRENCH 5MM
|
N/A | View Replacement | |
| 37 |
PT28522037
Replaced By PLABEL-12C
|
READ MANUAL 1.5W X 2.5H
|
N/A | View Replacement | |
| 38 | PT28522038 | CRUSHING WARNING LABEL | $1.50 | ||
| 39 | PT28522039 | MACHINE ID LABEL | $9.50 | ||
| 40 |
PT28522040
Replaced By PLABEL-11B
|
SAFETY GLASSES 1.5W X 2.5H
|
N/A | View Replacement | |
| 41 | PT28522041 | LACERATION WARNING LABEL | $1.50 | ||
| 43 |
PT28522043
Replaced By PPAINT-1
|
N/S GRIZZLY GREEN G1023S
|
N/A | View Replacement | |
| MAN | PT28522MAN | MANUAL T28522 MFD-07.18+ V1.09.18 | $3.00 |
