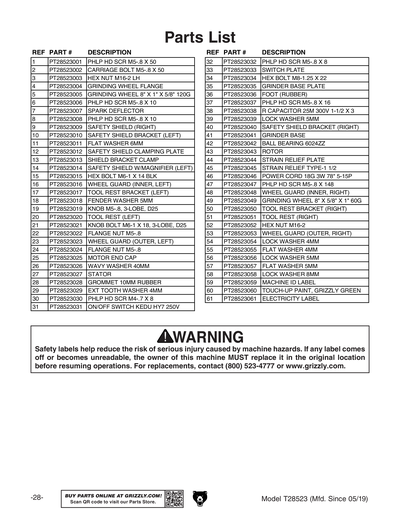

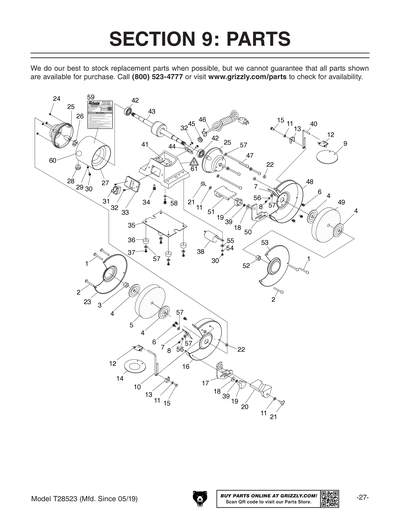

Parts for T28523 8" Slow-Speed Bench Grinder 1/2 HP

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

1
PHLP HD SCR M5-.8 X 50
Price
N/A
2
CARRIAGE BOLT M5-.8 X 50
Price
N/A
3
Now: PN21M
HEX NUT M16-2 LH
Price
N/A
4
GRINDING WHEEL FLANGE
5
GRINDING WHEEL 8" X 1" X 5/8" 120G
6
Now: PS09M
PHLP HD SCR M5-.8 X 10
Price
N/A
7
SPARK DEFLECTOR
8
Now: PS09M
PHLP HD SCR M5-.8 X 10
Price
N/A
9
SAFETY SHIELD (RIGHT)
10
SAFETY SHIELD BRACKET (LEFT)
11
Now: PW03M
FLAT WASHER 6MM
Price
N/A
12
SAFETY SHIELD CLAMPING PLATE
13
SHIELD BRACKET CLAMP
14
SAFETY SHIELD W/MAGNIFIER (LEFT)
15
HEX BOLT M6-1 X 14 BLK
16
WHEEL GUARD (INNER, LEFT)
17
TOOL REST BRACKET (LEFT)
18
FENDER WASHER 5MM
Price
N/A
19
KNOB M5-.8, 3-LOBE, D25
20
TOOL REST (LEFT)
21
KNOB BOLT M6-1 X 18, 3-LOBE, D25
22
FLANGE NUT M5-.8
Price
N/A
23
WHEEL GUARD (OUTER, LEFT)
24
FLANGE NUT M5-.8
Price
N/A
25
MOTOR END CAP
26
WAVY WASHER 40MM
27
STATOR
28
GROMMET 10MM RUBBER
29
EXT TOOTH WASHER 4MM
Price
N/A
30
Now: PS07M
PHLP HD SCR M4-.7 X 8
Price
N/A
31
ON/OFF SWITCH KEDU HY7 250V
32
Now: PS05M
PHLP HD SCR M5-.8 X 8
Price
N/A
33
SWITCH PLATE
34
HEX BOLT M8-1.25 X 22
35
GRINDER BASE PLATE
36
FOOT (RUBBER)
37
Now: PS40M
PHLP HD SCR M5-.8 X 16
Price
N/A
38
R CAPACITOR 25M 300V 1-1/2 X 3
39
LOCK WASHER 5MM
Price
N/A
40
SAFETY SHIELD BRACKET (RIGHT)
41
GRINDER BASE
42
BALL BEARING 6204ZZ
Price
N/A
43
ROTOR
44
STRAIN RELIEF PLATE
45
STRAIN RELIEF TYPE-1 1/2
46
POWER CORD 18G 3W 78" 5-15P
47
PHLP HD SCR M5-.8 X 148
48
WHEEL GUARD (INNER, RIGHT)
49
GRINDING WHEEL 8" X 5/8" X 1" 60G
50
TOOL REST BRACKET (RIGHT)
51
TOOL REST (RIGHT)
52
Now: PN13M
HEX NUT M16-2
Price
N/A
53
WHEEL GUARD (OUTER, RIGHT)
54
LOCK WASHER 4MM
Price
N/A
55
Now: PW05M
FLAT WASHER 4MM
Price
N/A
56
LOCK WASHER 5MM
Price
N/A
57
Now: PW02M
FLAT WASHER 5MM
Price
N/A
58
LOCK WASHER 8MM
Price
N/A
59
MACHINE ID LABEL
60
N/S GRIZZLY GREEN G1023S
Price
N/A
61
ELECTRICITY 0.7W X 0.6H
Price
N/A
MAN
MANUAL T28523 MFD-01.19+ V1.04.19
