Parts for T28793 Foldable Roller Wedge Stand

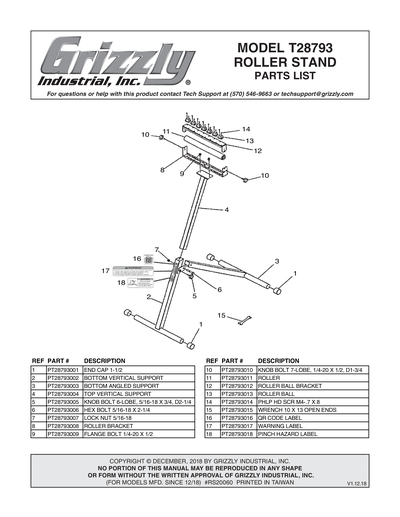

Parts Diagrams for T28793 - Foldable Roller Wedge Stand

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Parts List for Parts for T28793 Foldable Roller Wedge Stand

1
END CAP 1-1/2
$1.60
Enter quantity between 1 and 99
2
BOTTOM VERTICAL SUPPORT
$13.30
Enter quantity between 1 and 99
3
BOTTOM ANGLED SUPPORT
$12.40
Enter quantity between 1 and 99
4
TOP VERTICAL SUPPORT
$10.65
Enter quantity between 1 and 99
5
KNOB BLOT 6-LOBE, 5/16-18 X 3/4, D2-1/4
$3.40
Enter quantity between 1 and 99
6
Now: PB28
HEX BOLT 5/16-18 X 2-1/4
Price
N/A
7
Now: PLN03
LOCK NUT 5/16-18
Price
N/A
8
ROLLER BRACKET
$8.80
Enter quantity between 1 and 99
9
Now: PFB03
FLANGE BOLT 1/4-20 X 1/2
Price
N/A
10
KNOB BOLT 7-LOBE, 1/4-20 X 1/2, D1-3/4
$1.85
Enter quantity between 1 and 99
11
ROLLER
$11.85
Enter quantity between 1 and 99
12
ROLLER BALL BRACKET
$9.10
Enter quantity between 1 and 99
13
ROLLER BALL
$3.05
Enter quantity between 1 and 99
14
Now: PS07M
PHLP HD SCR M4-.7 X 8
Price
N/A
15
WRENCH 10 X 13MM OPEN-ENDS
Price
N/A
16
QR LABEL
$1.05
Enter quantity between 1 and 99
17
WARNING LABEL
$1.05
Enter quantity between 1 and 99
MAN
MANUAL T28793 MFD-12.18 V1.12.18
$21.95
Enter quantity between 1 and 99
