Parts for T28794 - Roller Stand

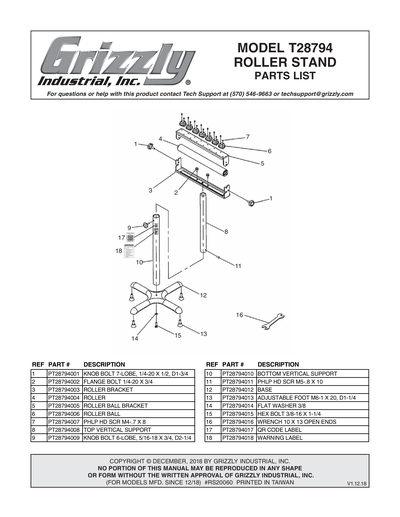

Part Diagram for T28794
Part Diagram for T28794

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
1
KNOB BOLT 7-LOBE, 1/4-20 X 1/2, D1-3/4
Price
N/A
2
FLANGE BOLT 1/4-20 X 3/4
Price
N/A
3
ROLLER BRACKET
Price
N/A
5
ROLLER BALL BRACKET
Price
N/A
6
ROLLER BALL
Price
N/A
7
PHLP HD SCR M4-.7 X 8
Price
N/A
8
TOP VERTICAL SUPPORT
Item is no longer available
Price
N/A
9
KNOB BLOT 6-LOBE, 5/16-18 X 3/4, D2-1/4
Price
N/A
10
BOTTOM VERTICAL SUPPORT
Item is no longer available
Price
N/A
11
PHLP HD SCR M5-.8 X 10
Price
N/A
12
BASE
Item is no longer available
Price
N/A
13
ADJUSTABLE FOOT M6-1 X 20, D1-1/4
Item is no longer available
Price
N/A
14
FLAT WASHER 3/8
Price
N/A
15
HEX BOLT 3/8-16 X 1-1/4
Price
N/A
16
WRENCH 10 X 13MM OPEN-ENDS
Price
N/A
17
QR CODE LABEL
Item is no longer available
Price
N/A
18
WARNING LABEL
Item is no longer available
Price
N/A
MAN
MANUAL T28794 MFD-12.18 V1.12.18
Item is no longer available
Price
