Parts for T28922 - Bear Crawl "Cub" Mobile Base

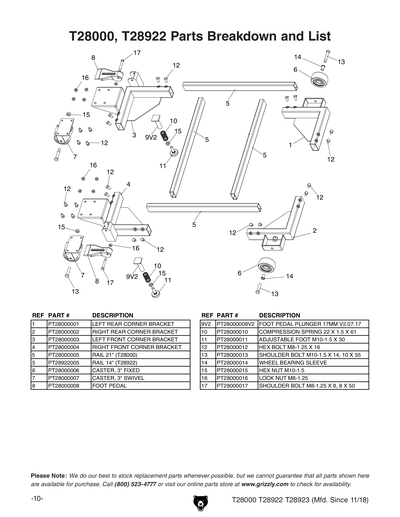

Part Diagram for T28922
Part Diagram for T28922
Part Diagram for T28922
Part Diagram for T28922

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
1
LEFT REAR CORNER BRACKET
Price
N/A
2
RIGHT REAR CORNER BRACKET
Price
N/A
3
LEFT FRONT CORNER BRACKET
Price
N/A
4
RIGHT FRONT CORNER BRACKET
Price
N/A
5
Price
$8.95
6
CASTER, 3" FIXED
Price
N/A
7
CASTER, 3" SWIVEL
Price
N/A
8
FOOT PEDAL
Price
N/A
9
FOOT PEDAL PLUNGER 17MM V2.07.17
Price
N/A
10
COMPRESSION SPRING 22 X 1.5 X 61
Price
N/A
11
ADJUSTABLE FOOT M10-1.5 X 30
Price
N/A
12
HEX BOLT M8-1.25 X 16
Price
N/A
13
SHOULDER BOLT M10-1.5 X 14, 10 X 55
Price
N/A
14
WHEEL BEARING SLEEVE
Price
N/A
15
HEX NUT M10-1.5
Price
N/A
16
LOCK NUT M8-1.25
Price
N/A
17
SHOULDER BOLT M8-1.25 X 8, 8 X 50
Price
N/A
18
HARDWARE BAG
Price
N/A
MAN
MANUAL T28000 MFD-11.18+ V2.12.18
Price
N/A
