Parts for T30372 Mounting Kit for G0613

Parts Diagrams for T30372 - Mounting Kit for G0613

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

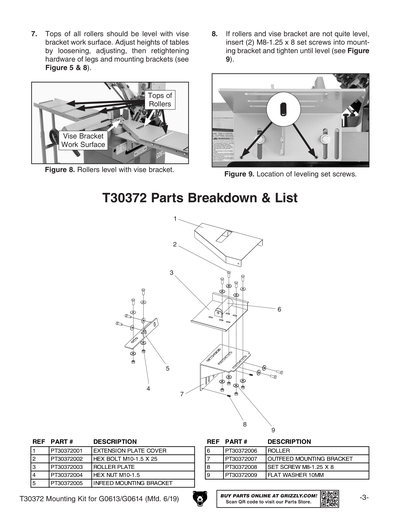

Parts List for Parts for T30372 Mounting Kit for G0613

1
EXTENSION PLATE COVER
$24.80
Enter quantity between 1 and 99
2
Now: PB32M
HEX BOLT M10-1.5 X 25
Price
N/A
3
ROLLER PLATE
$38.40
Enter quantity between 1 and 99
4
Now: PN02M
HEX NUT M10-1.5
Price
N/A
5
INFEED MOUNTING BRACKET
$25.10
Enter quantity between 1 and 99
6
ROLLER
$13.60
Enter quantity between 1 and 99
7
OUTFEED MOUNTING BRACKET
$38.40
Enter quantity between 1 and 99
8
SET SCREW M8-1.25 X 8
Price
N/A
9
Now: PW04M
FLAT WASHER 10MM
Price
N/A
