Parts for T30491 - Tenoning Jig

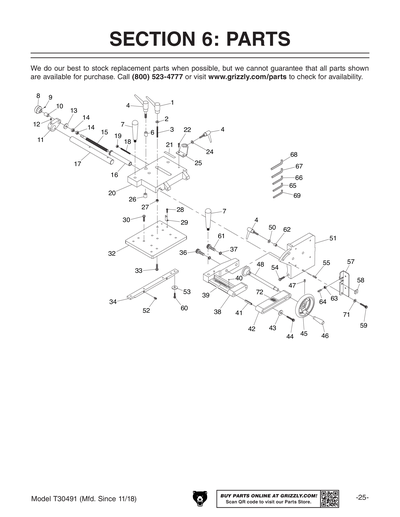

Part Diagram for T30491
Part Diagram for T30491
Part Diagram for T30491
Part Diagram for T30491

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

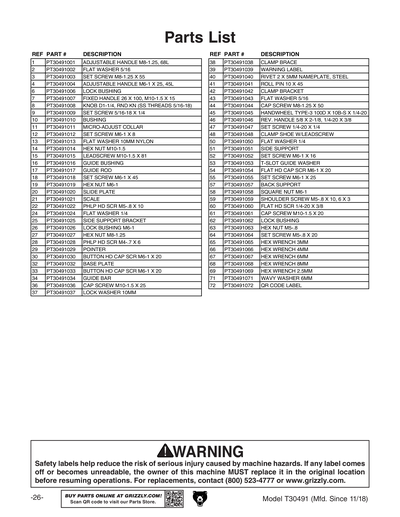

Ref #
Part #
Description
1
ADJUSTABLE HANDLE M8-1.25, 68L
Price
$13.10
2
FLAT WASHER 5/16
Price
N/A
3
SET SCREW M8-1.25 X 55
Price
N/A
4
*DISCD*ADJUSTABLE HANDLE M6-1 X 25, 45L
Item is no longer available
Price
N/A
6
LOCK BUSHING
Price
$5.50
7
FIXED HANDLE 26 X 100, M10-1.5 X 15
Price
$5.80
8
KNOB D1-1/4, RND KN (SS THREADS 5/16-18)
Price
$2.75
9
SET SCREW 5/16-18 X 1/4
Price
N/A
10
BUSHING
Price
$4.85
11
MICRO-ADJUST COLLAR
Price
$4.85
12
SET SCREW M6-1 X 8
Price
N/A
13
FLAT WASHER 10MM NYLON
Price
N/A
14
HEX NUT M10-1.5
Price
N/A
15
LEADSCREW M10-1.5 X 81
Price
$5.15
16
GUIDE BUSHING
Price
$16.05
17
GUIDE ROD
Price
$6.05
18
SET SCREW M6-1 X 45
Price
N/A
19
HEX NUT M6-1
Price
N/A
20
SLIDE PLATE
Price
$83.10
21
SCALE
Price
$1.70
22
PHLP HD SCR M5-.8 X 10
Price
N/A
24
FLAT WASHER 1/4
Price
N/A
25
SIDE SUPPORT BRACKET
Price
$2.20
26
LOCK BUSHING M6-1
Price
$3.65
27
HEX NUT M8-1.25
Price
N/A
28
PHLP HD SCR M4-.7 X 6
Price
N/A
29
POINTER
Price
$4.30
30
BUTTON HD CAP SCR M6-1 X 20
Price
N/A
32
BASE PLATE
Price
$72.45
33
BUTTON HD CAP SCR M6-1 X 20
Price
N/A
34
GUIDE BAR
Price
$21.75
36
CAP SCREW M10-1.5 X 25
Price
N/A
37
LOCK WASHER 10MM
Price
N/A
38
CLAMP BRACE
Price
$45.90
39
WARNING LABEL
Price
$4.25
40
RIVET 2 X 5MM NAMEPLATE, STEEL
Price
N/A
41
ROLL PIN 10 X 45
Price
$2.60
42
CLAMP BRACKET
Price
$18.15
43
FLAT WASHER 5/16
Price
N/A
44
CAP SCREW M8-1.25 X 50
Price
N/A
45
HANDWHEEL TYPE-3 100D X 10B-S X 1/4-20
Price
$29.35
46
REV. HANDLE 5/8 X 2-1/8, 1/4-20 X 3/8
Price
$8.00
47
SET SCREW 1/4-20 X 1/4
Price
N/A
48
CLAMP SHOE W/LEADSCREW
Price
$19.95
50
FLAT WASHER 1/4
Price
N/A
51
SIDE SUPPORT
Price
$75.20
52
SET SCREW M6-1 X 16
Price
N/A
53
T-SLOT GUIDE WASHER
Price
$2.75
54
FLAT HD CAP SCR M6-1 X 20
Price
N/A
55
SET SCREW M6-1 X 25
Price
N/A
57
BACK SUPPORT
Price
$4.95
58
SQUARE NUT M6-1
Price
N/A
59
SHOULDER SCREW M5-.8 X 10, 6 X 3
Price
$1.60
60
FLAT HD SCR 1/4-20 X 3/8
Price
N/A
61
CAP SCREW M10-1.5 X 20
Price
N/A
62
LOCK BUSHING
Price
$3.05
63
HEX NUT M5-.8
Price
N/A
64
SET SCREW M5-.8 X 20
Price
N/A
65
HEX WRENCH 3MM
Price
N/A
66
HEX WRENCH 4MM
Price
N/A
67
HEX WRENCH 6MM
Price
N/A
68
HEX WRENCH 8MM
Price
N/A
69
HEX WRENCH 2.5MM
Price
N/A
70
HEX WRENCH 5MM
Price
N/A
71
WAVY WASHER 6MM
Price
$1.60
72
QR CODE LABEL
Price
$1.05
MAN
MANUAL T30491 MFD-11.18+ V1.11.18
Price
$11.00
