Parts for T30860 Manual Tube Bender

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

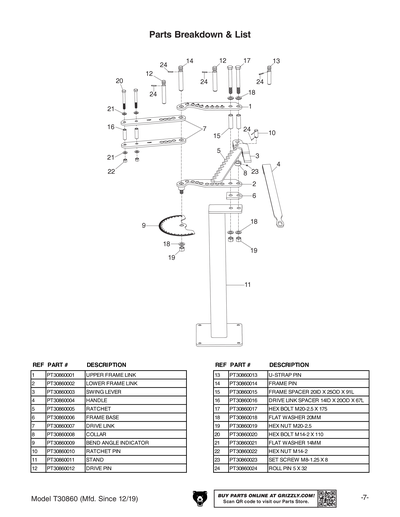

1
UPPER FRAME LINK
2
LOWER FRAME LINK
3
SWING LEVER
4
HANDLE
5
RATCHET
6
FRAME BASE
7
DRIVE LINK
8
COLLAR
9
BEND ANGLE INDICATOR
10
RATCHET PIN
11
STAND
12
DRIVE PIN
13
U-STRAP PIN
14
FRAME PIN
15
FRAME SPACER 20ID X 25OD X 91L
16
DRIVE LINK SPACER 14ID X 20OD X 67L
17
HEX BOLT M20-2.5 X 175
18
Now: PW13M
FLAT WASHER 20MM
Price
N/A
19
Now: PN28M
HEX NUT M20-2.5
Price
N/A
20
Now: PB99M
HEX BOLT M14-2 X 110
Price
N/A
21
Now: PW10M
FLAT WASHER 14MM
Price
N/A
22
Now: PN32M
HEX NUT M14-2
Price
N/A
23
SET SCREW M8-1.25 X 8
Price
N/A
24
ROLL PIN 5 X 32
Price
N/A
25
BUSHING 25.4ID X 35OD X 11.5L, COPPER
26
BUSHING 25ID X 35OD X 32L, COPPER

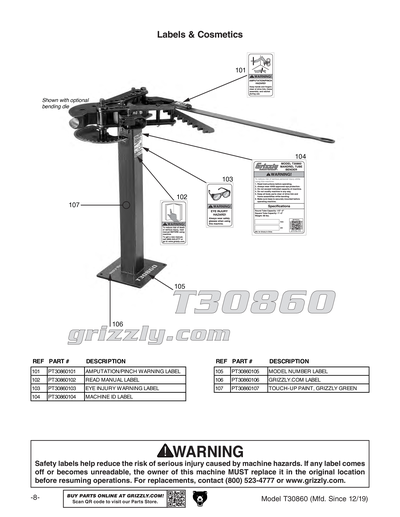

101
AMPUTATION/PINCH WARNING LABEL
102
READ MANUAL 1.5W X 2.5H
Price
N/A
103
SAFETY GLASSES 1.5W X 2.5H
Price
N/A
104
MACHINE ID LABEL
105
MODEL NUMBER LABEL
106
GRIZZLY.COM LABEL 9",GRAY
Price
N/A
107
N/S GRIZZLY GREEN G1023S
Price
N/A
MAN
MANUAL T30860 MFD-12.19+ V1.07.24
