Parts for T30944 - 2" Magnetic Drill

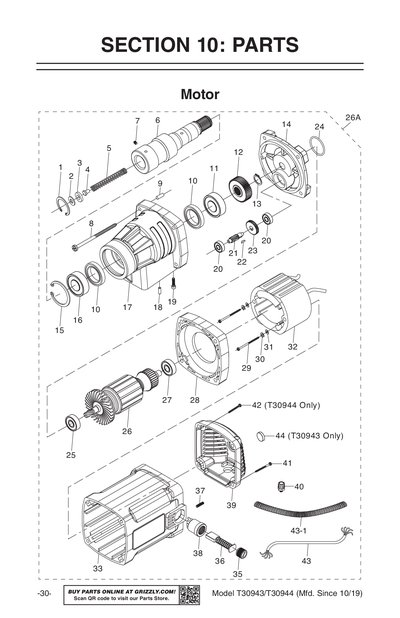

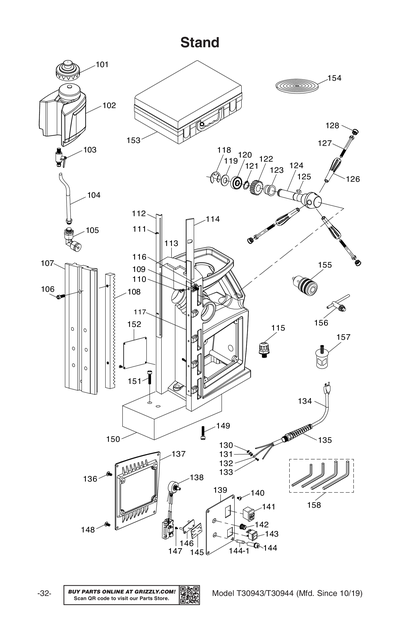

Part Diagram for T30944
Part Diagram for T30944
Part Diagram for T30944
Part Diagram for T30944
Part Diagram for T30944
Part Diagram for T30944
Part Diagram for T30944
Part Diagram for T30944
Part Diagram for T30944
Part Diagram for T30944

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

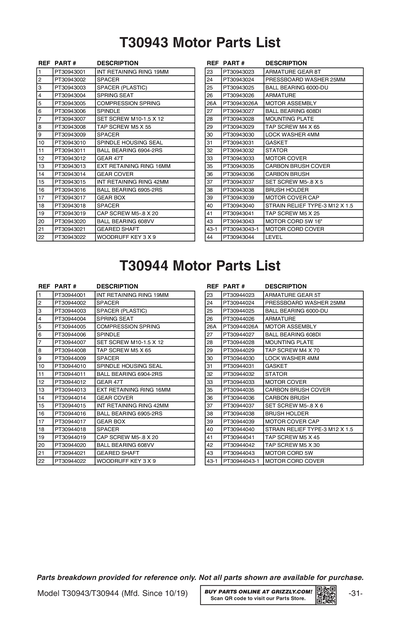

Ref #
Part #
Description
1
INT RETAINING RING 19MM
Price
N/A
3
SPACER (PLASTIC)
Price
N/A
4
SPRING SEAT
Price
N/A
5
COMPRESSION SPRING
Price
N/A
6
SPINDLE
Price
N/A
7
SET SCREW M10-1.5 X 12
Price
N/A
8
TAP SCREW M5 X 55
Price
N/A
10
SPINDLE HOUSING SEAL
Price
N/A
11
BALL BEARING 6904-2RS
Price
N/A
12
GEAR 47T
Price
N/A
13
EXT RETAINING RING 16MM
Price
N/A
14
GEAR COVER
Price
N/A
15
INT RETAINING RING 42MM
Price
N/A
16
BALL BEARING 6905-2RS
Price
N/A
17
GEAR BOX
Price
N/A
18
SPACER
Price
N/A
19
CAP SCREW M5-.8 X 20
Price
N/A
20
BALL BEARING 608VV
Price
N/A
21
GEARED SHAFT
Price
N/A
22
WOODRUFF KEY 3 X 9
Price
N/A
23
Price
$12.95
24
PRESSBOARD WASHER 25MM
Price
N/A
25
BALL BEARING 6000-DU
Price
N/A
26
Price
$115.40
26A
Price
$562.85
27
***USE PT30943020***
Price
N/A
28
MOUNTING PLATE
Price
N/A
29
TAP SCREW M4 X 70
Price
N/A
30
LOCK WASHER 4MM
Price
N/A
31
GASKET
Price
N/A
32
Price
$75.50
33
MOTOR COVER
Price
N/A
33-1
WIRING PLUG/MOUNT
Price
N/A
35
CARBON BRUSH COVER
Price
N/A
36
CARBON BRUSH
Price
N/A
37
SET SCREW M5-.8 X 5
Price
N/A
38
BRUSH HOLDER
Price
N/A
39
Price
$21.60
40
STRAIN RELIEF TYPE-3 M12 X 1.5
Price
N/A
41
Price
$1.90
42
Price
$1.90
43
MOTOR CORD 5W 16"
Price
N/A
43-1
MOTOR CORD COVER
Price
N/A

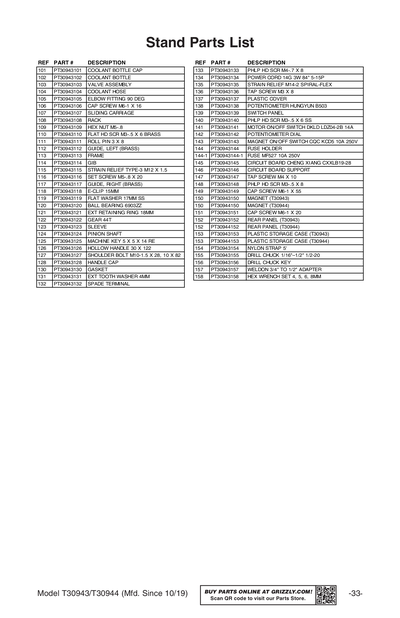

101
COOLANT BOTTLE CAP
Price
N/A
102
COOLANT BOTTLE
Price
N/A
103
VALVE ASSEMBLY
Price
N/A
104
COOLANT HOSE
Price
N/A
105
ELBOW FITTING 90 DEG
Price
N/A
106
CAP SCREW M6-1 X 16
Price
N/A
107
SLIDING CARRIAGE
Price
N/A
109
HEX NUT M5-.8
Price
N/A
110
FLAT HD SCR M3-.5 X 6 BRASS
Price
N/A
111
ROLL PIN 3 X 8
Price
N/A
112
GUIDE, LEFT (BRASS)
Price
N/A
113
FRAME
Price
N/A
115
STRAIN RELIEF TYPE-3 M12 X 1.5
Price
N/A
116
SET SCREW M5-.8 X 20
Price
N/A
117
GUIDE, RIGHT (BRASS)
Price
N/A
118
E-CLIP 15MM
Price
N/A
119
FLAT WASHER 17MM SS
Price
N/A
120
BALL BEARING 6903ZZ
Price
N/A
121
EXT RETAINING RING 18MM
Price
N/A
122
GEAR 44T
Price
N/A
123
SLEEVE
Price
N/A
124
PINION SHAFT
Price
N/A
125
MACHINE KEY 5 X 5 X 14 RE
Price
N/A
126
HOLLOW HANDLE 30 X 122
Price
N/A
127
SHOULDER BOLT M10-1.5 X 28, 10 X 82
Price
N/A
128
HANDLE CAP
Price
N/A
130
FLAT WASHER 4MM
Price
N/A
131
EXT TOOTH WASHER 4MM
Price
N/A
132
SPADE TERMINAL
Price
N/A
133
PHLP HD SCR M4-.7 X 8
Price
N/A
134
POWER CORD 14G 3W 84" 5-15P
Price
N/A
135
STRAIN RELIEF M14-2 SPIRAL-FLEX
Price
N/A
136
TAP SCREW M3 X 8
Price
N/A
137
PLASTIC COVER
Price
N/A
138
POTENTIOMETER HUNGYUN B503
Price
N/A
139
SWITCH PANEL
Price
N/A
140
PHLP HD SCR M3-.5 X 6 SS
Price
N/A
141
MOTOR ON/OFF SWITCH DKLD LDZ04-2B 14A
Price
N/A
142
POTENTIOMETER DIAL
Price
N/A
143
MAGNET ON/OFF SWITCH CQC KCD5 10A 250V
Price
N/A
144
FUSE HOLDER
Price
N/A
144-1
FUSE MF527 10A 250V
Price
N/A
145
CIRCUIT BOARD CHENG XIANG CXXLB19-28
Price
N/A
146
CIRCUIT BOARD SUPPORT
Price
N/A
147
TAP SCREW M4 X 10
Price
N/A
148
PHLP HD SCR M3-.5 X 8
Price
N/A
149
CAP SCREW M6-1 X 55
Price
N/A
150
Price
$208.15
151
CAP SCREW M6-1 X 20
Price
N/A
152
Price
$1.90
153
Price
$38.45
154
NYLON STRAP 5'
Price
N/A
155
DRILL CHUCK 1/16"-1/2" 1/2-20
Price
N/A
156
DRILL CHUCK KEY
Price
N/A
157
WELDON 3/4" TO 1/2" ADAPTER
Price
N/A
158
HEX WRENCH SET 4, 5, 6, 8MM
Price
N/A

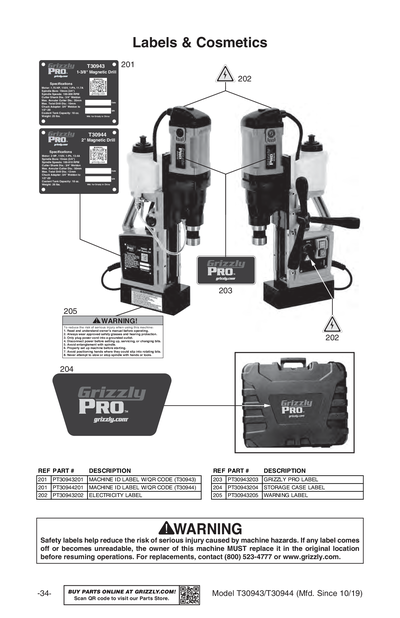

201
MACHINE ID LABEL W/QR CODE
Price
$16.40
202
ELECTRICITY 0.5W X 0.4H
Price
N/A
203
GRIZZLY PRO LABEL
Price
N/A
204
STORAGE CASE LABEL
Price
N/A
205
WARNING LABEL
Price
N/A
MAN
T30943-944 MANUAL MFD-10.19+ V1.12.19
Price
N/A
