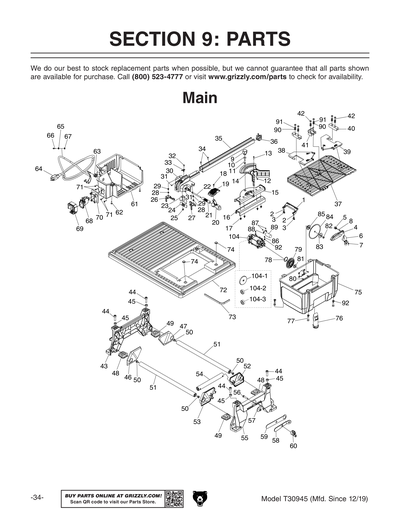

Parts for T30945 7" Benchtop Tile Saw

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

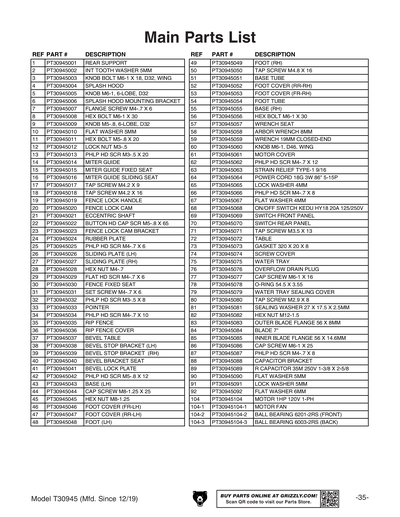

1
REAR SUPPORT
2
INT TOOTH WASHER 5MM
Price
N/A
3
KNOB BOLT M6-1 X 18, D32, WING
4
SPLASH HOOD
5
KNOB M6-1, 6-LOBE, D32
6
SPLASH HOOD MOUNTING BRACKET
7
FLANGE SCREW M4-.7 X 6
Price
N/A
8
Now: PB29M
HEX BOLT M6-1 X 30
Price
N/A
9
KNOB M5-.8, 6-LOBE, D32
10
FLAT WASHER 5MM
11
Now: PB42M
HEX BOLT M5-.8 X 20
Price
N/A
12
LOCK NUT M3-.5
Price
N/A
13
Now: PS13M
PHLP HD SCR M3-.5 X 20
Price
N/A
14
MITER GUIDE
15
MITER GUIDE FIXED SEAT
16
MITER GUIDE SLIDING SEAT
17
TAP SCREW M4.2 X 9
18
TAP SCREW M4.2 X 16
19
FENCE LOCK HANDLE
20
FENCE LOCK CAM
21
ECCENTRIC SHAFT
22
BUTTON HD CAP SCR M5-.8 X 65
23
FENCE LOCK CAM BRACKET
24
RUBBER PLATE
25
Now: PS17M
PHLP HD SCR M4-.7 X 6
Price
N/A
26
SLIDING PLATE (LH)
27
SLIDING PLATE (RH)
28
Now: PN04M
HEX NUT M4-.7
Price
N/A
29
FLAT HD SCR M4-.7 X 6
Price
N/A
30
FENCE FIXED SEAT
31
SET SCREW M4-.7 X 6
Price
N/A
32
Now: PS79M
PHLP HD SCR M3-.5 X 8
Price
N/A
33
POINTER
34
Now: PS38M
PHLP HD SCR M4-.7 X 10
Price
N/A
35
RIP FENCE
36
RIP FENCE COVER
37
BEVEL TABLE
38
BEVEL STOP BRACKET (LH)
39
BEVEL STOP BRACKET (RH)
40
BEVEL BRACKET SEAT
41
BEVEL LOCK PLATE
42
Now: PS08M
PHLP HD SCR M5-.8 X 12
Price
N/A
43
BASE (LH)
44
CAP SCREW M8-1.25 X 25
Price
N/A
45
Now: PN03M
HEX NUT M8-1.25
Price
N/A
46
FOOT COVER (FR-LH)
47
FOOT COVER (RR-LH)
48
FOOT (LH)
49
FOOT (RH)
50
TAP SCREW M4.8 X 16
51
BASE TUBE
52
FOOT COVER (RR-RH)
53
FOOT COVER (FR-RH)
54
FOOT TUBE
55
BASE (RH)
56
Now: PB29M
HEX BOLT M6-1 X 30
Price
N/A
57
WRENCH SEAT
58
ARBOR WRENCH 8MM
59
WRENCH 19MM CLOSED-END
60
KNOB M6-1, D46, WING
61
MOTOR COVER
62
Now: PS02M
PHLP HD SCR M4-.7 X 12
Price
N/A
63
STRAIN RELIEF TYPE-1 9/16
64
POWER CORD 18G 3W 86" 5-15P
65
LOCK WASHER 4MM
Price
N/A
66
Now: PS07M
PHLP HD SCR M4-.7 X 8
Price
N/A
67
Now: PW05M
FLAT WASHER 4MM
Price
N/A
68
Now: G8988
Safety Paddle Switch
Price
N/A
69
SWITCH FRONT PANEL
70
SWITCH REAR PANEL
71
TAP SCREW M3.5 X 13
Price
N/A
72
TABLE
73
GASKET 320 X 20 X 8
74
SCREW COVER
75
WATER TRAY
76
OVERFLOW DRAIN PLUG
77
CAP SCREW M6-1 X 16
Price
N/A
78
O-RING 54.5 X 3.55
79
WATER TRAY SEALING COVER
80
TAP SCREW M2.9 X 8
81
SEALING WASHER 27 X 17.5 X 2.5MM
82
Now: PN31M
HEX NUT M12-1.5
Price
N/A
83
OUTER BLADE FLANGE 56 X 8MM
84
BLADE 7"
85
INNER BLADE FLANGE 56 X 14.6MM
86
CAP SCREW M6-1 X 25
Price
N/A
87
Now: PS07M
PHLP HD SCR M4-.7 X 8
Price
N/A
88
CAPACITOR BRACKET
89
R CAPACITOR 35M 250V 1-3/8 X 2-5/8
90
Now: PW02M
FLAT WASHER 5MM
Price
N/A
91
LOCK WASHER 5MM
Price
N/A
92
Now: PW03M
FLAT WASHER 6MM
Price
N/A
104
MOTOR 1HP 120V 1-PH
104-1
MOTOR FAN
104-2
BALL BEARING 6201-2RS
Price
N/A
104-3
BALL BEARING 6003-2RS
Price
N/A

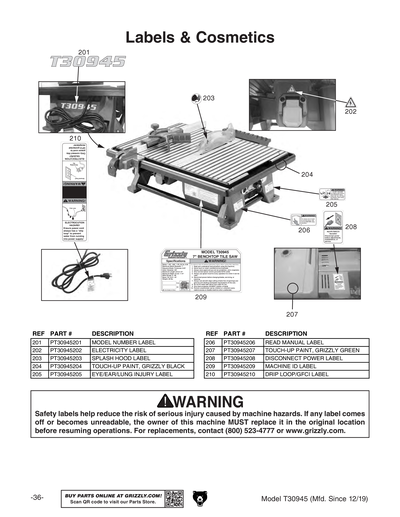

201
MODEL NUMBER LABEL
202
ELECTRICITY 0.7W X 0.6H
Price
N/A
203
SPLASH HOOD LABEL
204
GLOSSY BLACK
Price
N/A
205
EYE/EAR/LUNG INJURY LABEL
206
READ MANUAL LABEL
207
N/S GRIZZLY GREEN G1023S
Price
N/A
208
DISCONNECT 110V 1.5W X 2.5H
Price
N/A
209
MACHINE ID LABEL
210
DRIP LOOP/GFCI LABEL
MAN
MANUAL T30945 MFD-12.19+ V1.02.20
