Parts for T31566 - Bear Crawl All-Swivel HD Mobile Base

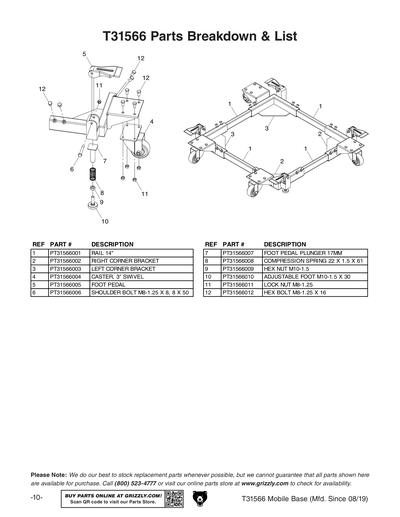

Part Diagram for T31566
Part Diagram for T31566

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
1
RAIL 21"
Price
N/A
2
RIGHT FRONT CORNER BRACKET
Price
N/A
3
LEFT FRONT CORNER BRACKET
Price
N/A
4
CASTER, 3" SWIVEL
Price
N/A
5
FOOT PEDAL
Price
N/A
6
SHOULDER BOLT M8-1.25 X 8, 8 X 50
Price
N/A
7
FOOT PEDAL PLUNGER 17MM V2.07.17
Price
N/A
8
COMPRESSION SPRING 22 X 1.5 X 61
Price
N/A
9
HEX NUT M10-1.5
Price
N/A
10
ADJUSTABLE FOOT M10-1.5 X 30
Price
N/A
11
LOCK NUT M8-1.25
Price
N/A
12
HEX BOLT M8-1.25 X 16
Price
N/A
MAN
MANUAL T31566 MFD-07.19+ V1.07.19
Price
$15.50
