Parts for T31634 - 10" Double-Bevel Sliding Compound Miter Saw

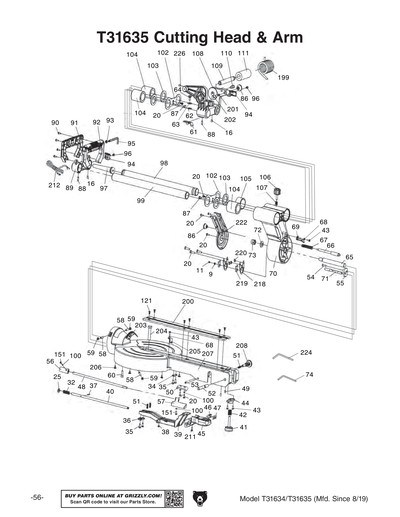

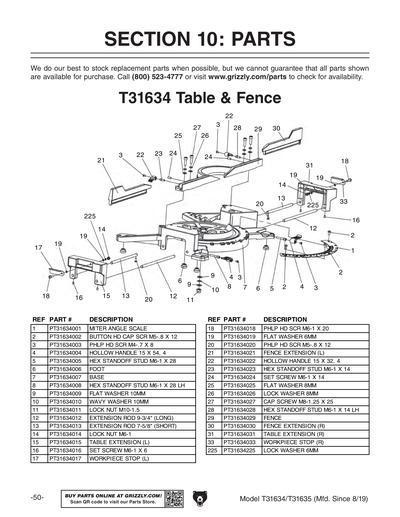

Part Diagram for T31634
Part Diagram for T31634
Part Diagram for T31634
Part Diagram for T31634
Part Diagram for T31634
Part Diagram for T31634
Part Diagram for T31634
Part Diagram for T31634
Part Diagram for T31634
Part Diagram for T31634
Part Diagram for T31634
Part Diagram for T31634
Part Diagram for T31634
Part Diagram for T31634
Part Diagram for T31634
Part Diagram for T31634
Part Diagram for T31634
Part Diagram for T31634
Part Diagram for T31634
Part Diagram for T31634
Part Diagram for T31634
Part Diagram for T31634

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
1
MITER ANGLE SCALE
Price
$5.75
2
BUTTON HD CAP SCR M5-.8 X 12
Price
N/A
3
PHLP HD SCR M4-.7 X 8
Price
N/A
4
HOLLOW HANDLE 15 X 54, 4
Price
$4.00
5
HEX STANDOFF STUD M6-1 X 28
Price
$1.90
6
FOOT
Price
$13.70
7
BASE
Price
$33.85
8
HEX STANDOFF STUD M6-1 X 28 LH
Price
$1.90

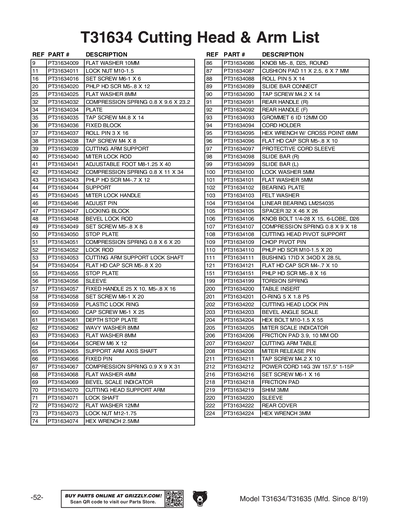

9
FLAT WASHER 10MM
Price
N/A
10
WAVY WASHER 10MM
Price
$1.90
11
LOCK NUT M10-1.5
Price
N/A
12
EXTENSION ROD 9-3/4" (LONG)
Price
$11.50
13
EXTENSION ROD 7-5/8" (SHORT)
Price
$5.75
14
LOCK NUT M6-1
Price
N/A
15
TABLE EXTENSION (L)
Price
$8.65
16
SET SCREW M6-1 X 6
Price
N/A
17
WORKPIECE STOP (L)
Price
$2.90
18
PHLP HD SCR M6-1 X 20
Price
N/A
19
FLAT WASHER 6MM
Price
N/A
20
PHLP HD SCR M5-.8 X 12
Price
N/A
21
FENCE EXTENSION (L)
Price
$17.45
22
HOLLOW HANDLE 15 X 32, 4
Price
$2.90
23
HEX STANDOFF STUD M6-1 X 14
Price
$1.90
24
SET SCREW M6-1 X 14
Price
N/A
25
FLAT WASHER 8MM
Price
N/A
26
LOCK WASHER 8MM
Price
N/A
27
CAP SCREW M8-1.25 X 25
Price
N/A
28
HEX STANDOFF STUD M6-1 X 14 LH
Price
$1.90
29
FENCE
Price
$23.20
30
FENCE EXTENSION (R)
Price
$11.90
31
TABLE EXTENSION (R)
Price
$8.65
32
COMPRESSION SPRING 0.8 X 9.6 X 23.2
Price
$1.90
33
WORKPIECE STOP (R)
Price
$2.90
34
PLATE
Price
$1.90
35
TAP SCREW M4.8 X 14
Price
$1.90
36
FIXED BLOCK
Price
$1.90
37
ROLL PIN 3 X 16
Price
N/A
38
TAP SCREW M4 X 8
Price
N/A
39
CUTTING ARM SUPPORT
Price
$8.65
40
MITER LOCK ROD
Price
$11.50
41
ADJUSTABLE FOOT M8-1.25 X 40
Price
$1.90
42
COMPRESSION SPRING 0.8 X 11 X 34
Price
$1.90

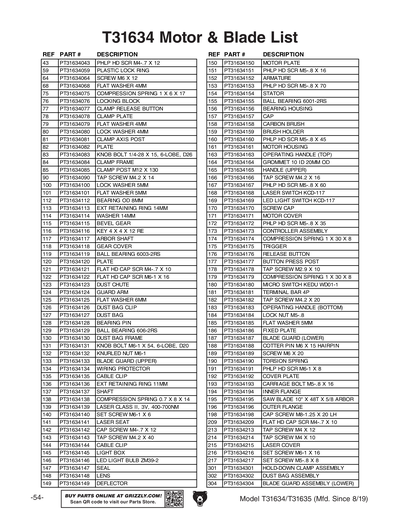

43
PHLP HD SCR M4-.7 X 12
Price
N/A
44
SUPPORT
Price
$5.75
45
MITER LOCK HANDLE
Price
$5.75
46
ADJUST PIN
Price
$1.90
47
LOCKING BLOCK
Price
$2.90
48
BEVEL LOCK ROD
Price
$5.75
49
SET SCREW M5-.8 X 8
Price
N/A
50
STOP PLATE
Price
$2.90
51
COMPRESSION SPRING 0.8 X 6 X 20
Price
$1.90
52
LOCK ROD
Price
$2.90
53
CUTTING ARM SUPPORT LOCK SHAFT
Price
$2.90
54
FLAT HD SCR M5-.8 X 20
Price
N/A
55
STOP PLATE
Price
$2.90
56
SLEEVE
Price
$2.90
57
FIXED HANDLE 25 X 10, M5-.8 X 16
Price
$1.90
58
SET SCREW M6-1 X 20
Price
N/A
59
PLASTIC LOCK RING
Price
N/A
60
CAP SCREW M6-1 X 25
Price
N/A
61
DEPTH STOP PLATE
Price
$1.90
62
WAVY WASHER 8MM
Price
$1.90
63
FLAT WASHER 8MM
Price
N/A
64
SCREW M6 X 12
Price
$1.90
65
SUPPORT ARM AXIS SHAFT
Price
$5.75
66
FIXED PIN
Price
$1.90
67
COMPRESSION SPRING 0.9 X 9 X 31
Price
$1.90
68
FLAT WASHER 4MM
Price
N/A
69
BEVEL SCALE INDICATOR
Price
$1.90
70
CUTTING HEAD SUPPORT ARM
Price
$22.70
71
LOCK SHAFT
Price
$2.90
72
FLAT WASHER 12MM
Price
N/A
73
LOCK NUT M12-1.75
Price
N/A
74
HEX WRENCH 2.5MM
Price
N/A
75
COMPRESSION SPRING 1 X 6 X 17
Price
$1.90
76
LOCKING BLOCK
Price
$2.90
77
CLAMP RELEASE BUTTON
Price
$1.90
78
CLAMP PLATE
Price
$1.90
79
FLAT WASHER 4MM
Price
N/A
80
LOCK WASHER 4MM
Price
N/A
81
CLAMP AXIS POST
Price
$5.75
82
PLATE
Price
$1.90
83
KNOB BOLT 1/4-28 X 15, 6-LOBE, D26
Price
$1.90
84
CLAMP FRAME
Price
$4.70
85
CLAMP POST M12 X 130
Price
$2.90
86
KNOB M5-.8, D25, ROUND
Price
$2.90
87
RUBBER CUSHION PAD
Price
N/A
88
ROLL PIN 5 X 14
Price
N/A
89
SLIDE BAR CONNECT
Price
$2.90
90
TAP SCREW M4.2 X 14
Price
$1.90
91
REAR HANDLE (R)
Price
$5.75
92
REAR HANDLE (F)
Price
$5.75
93
GROMMET 6 ID 12MM OD
Price
$1.90
94
CORD HOLDER
Price
$4.70
95
HEX WRENCH W/ CROSS POINT 6MM
Price
$2.90
96
FLAT HD CAP SCR M5-.8 X 10
Price
N/A
97
PROTECTIVE CORD SLEEVE
Price
$4.70
98
SLIDE BAR (R)
Price
$5.75
99
SLIDE BAR (L)
Price
$5.75
100
LOCK WASHER 5MM
Price
N/A
101
FLAT WASHER 5MM
Price
N/A
102
BEARING PLATE
Price
$1.90
103
FELT WASHER
Price
$1.90
104
LINEAR BEARING LM254035
Price
$4.70
105
SPACER 32 X 46 X 26
Price
$1.90
106
KNOB BOLT 1/4-28 X 15, 6-LOBE, D26
Price
N/A
107
COMPRESSION SPRING 0.8 X 9 X 18
Price
$1.90
108
CUTTING HEAD PIVOT SUPPORT
Price
$19.85
109
CHOP PIVOT PIN
Price
$11.50
110
PHLP HD SCR M10-1.5 X 20
Price
N/A
111
BUSHING 17ID X 34OD X 28.5L
Price
$5.75
112
BEARING OD 8MM
Price
$11.50
113
EXT RETAINING RING 14MM
Price
N/A
114
WASHER 14MM
Price
$1.90
115
BEVEL GEAR
Price
N/A
116
KEY 4 X 4 X 12 RE
Price
$1.90
117
ARBOR SHAFT
Price
$5.75
118
GEAR COVER
Price
$4.70
119
BALL BEARING 6003-2RS
Price
N/A
120
PLATE
Price
$2.90
121
FLAT HD CAP SCR M4-.7 X 10
Price
N/A
122
FLAT HD CAP SCR M6-1 X 16
Price
N/A
123
DUST CHUTE
Price
$7.95
124
GUARD ARM
Price
$44.95
125
FLAT WASHER 6MM
Price
N/A
126
DUST BAG CLIP
Price
$2.60
127
DUST BAG
Price
$1.90
128
BEARING PIN
Price
$1.90
129
BALL BEARING 606-2RS
Price
N/A
130
DUST BAG FRAME
Price
$8.10
131
KNOB BOLT M6-1 X 54, 6-LOBE, D20
Price
$1.90
132
KNURLED NUT M6-1
Price
$1.90
133
BLADE GUARD (UPPER)
Price
$80.20
134
WIRING PROTECTOR
Price
$5.75
135
CABLE CLIP
Price
$1.90
136
EXT RETAINING RING 11MM
Price
$1.90
137
SHAFT
Price
$4.70
138
COMPRESSION SPRING 0.7 X 8 X 14
Price
$1.90
139
LASER CLASS II, 3V, 400-700NM
Price
$14.10
140
SET SCREW M6-1 X 6
Price
N/A
141
LASER SEAT
Price
$4.70
142
CAP SCREW M4-.7 X 12
Price
N/A
143
TAP SCREW M4.2 X 40
Price
$1.90
144
CABLE CLIP
Price
$1.90
145
LIGHT BOX
Price
$2.60
146
LED LIGHT BULB ZM39-2
Price
$1.90
147
SEAL
Price
$1.90
148
LENS
Price
$1.90
149
DEFLECTOR
Price
$1.90
150
MOTOR PLATE
Price
$8.65
151
PHLP HD SCR M5-.8 X 16
Price
N/A
152
ARMATURE
Price
$67.60
153
PHLP HD SCR M5-.8 X 70
Price
$1.90
154
STATOR
Price
$78.75
155
BALL BEARING 6001-2RS
Price
N/A
156
BEARING HOUSING
Price
$2.70
157
CAP
Price
$1.90
158
CARBON BRUSH
Price
$8.65
159
BRUSH HOLDER
Price
$2.70
160
PHLP HD SCR M5-.8 X 45
Price
N/A
161
MOTOR HOUSING
Price
$13.70
163
OPERATING HANDLE (TOP)
Price
$11.50
164
GROMMET 10 ID 20MM OD
Price
$8.65
165
HANDLE (UPPER)
Price
$5.75
166
TAP SCREW M4.2 X 16
Price
$1.90
167
PHLP HD SCR M5-.8 X 60
Price
N/A
168
LASER SWITCH KCD-117
Price
$8.65
169
LED LIGHT SWITCH KCD-117
Price
$8.65
170
SCREW CAP
Price
$1.90
171
MOTOR COVER
Price
$11.50
172
PHLP HD SCR M5-.8 X 35
Price
N/A
173
CONTROLLER ASSEMBLY
Price
$2.60
174
COMPRESSION SPRING 1 X 30 X 8
Price
$1.90
175
TRIGGER
Price
$2.90
176
RELEASE BUTTON
Price
$1.90
177
BUTTON PRESS POST
Price
$1.90
178
TAP SCREW M2.9 X 10
Price
$1.90
179
COMPRESSION SPRING 1 X 30 X 8
Price
$1.49
180
MICRO SWITCH KEDU WD01-1
Price
$16.95
181
TERMINAL BAR 4P
Price
$1.90
182
TAP SCREW M4.2 X 20
Price
$1.90
183
OPERATING HANDLE (BOTTOM)
Price
$11.50
184
LOCK NUT M5-.8
Price
N/A
185
FLAT WASHER 5MM
Price
N/A
186
FIXED PLATE
Price
$1.90
187
BLADE GUARD (LOWER)
Price
$13.40
188
COTTER PIN M6 X 15 HAIRPIN
Price
$1.90
189
SCREW M6 X 20
Price
$1.90
190
TORSION SPRING
Price
$1.90
191
PHLP HD SCR M6-1 X 8
Price
N/A
192
COVER PLATE
Price
$4.70
193
CARRIAGE BOLT M5-.8 X 16
Price
$1.90
194
INNER FLANGE
Price
$2.40
195
SAW BLADE 10" X 48T X 5/8 ARBOR
Price
$19.10
196
OUTER FLANGE
Price
$2.40
198
CAP SCREW M8-1.25 X 20 LH
Price
$1.90
199
TORSION SPRING
Price
$1.90
200
TABLE INSERT
Price
$8.75
201
O-RING 4.8 X 1.9 P5
Price
N/A
202
CUTTING HEAD LOCK PIN
Price
$1.90
203
BEVEL ANGLE SCALE
Price
$2.60
204
HEX BOLT M10-1.5 X 55
Price
N/A
205
MITER SCALE INDICATOR
Price
$1.90
206
FRICTION PAD
Price
N/A
207
CUTTING ARM TABLE
Price
$44.95
208
MITER RELEASE PIN
Price
$5.75
209
FLAT HD CAP SCR M4-.7 X 10
Price
N/A
211
TAP SCREW M4.2 X 10
Price
$1.90
212
POWER CORD 14G 3W 157.5" 1-15P
Price
$23.00
213
TAP SCREW M4 X 12
Price
N/A
214
TAP SCREW M4 X 10
Price
N/A
215
LASER COVER
Price
$2.90
216
SET SCREW M6-1 X 16
Price
N/A
217
SET SCREW M5-.8 X 8
Price
N/A
218
FRICTION PAD
Price
$4.70
219
SHIM 3MM
Price
$2.90
220
SLEEVE
Price
$5.75
222
REAR COVER
Price
$4.00
224
HEX WRENCH 3MM
Price
N/A
225
LOCK WASHER 6MM
Price
N/A
301
HOLD-DOWN CLAMP ASSEMBLY
Price
$22.70
302
DUST BAG ASSEMBLY
Price
$20.50
304
BLADE GUARD ASSEMBLY (LOWER)
Price
$42.10
401
GRIZZLY.COM LABEL 6",WHITE
Price
N/A
402
QR CODE/SN LABEL
Price
$1.25

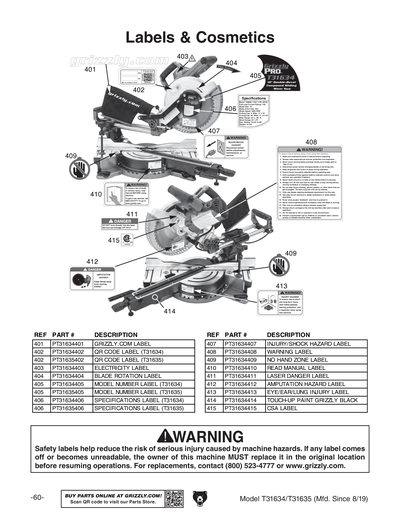

403
ELECTRICITY 0.5W X 0.4H
Price
N/A
404
BLADE ROTATION LABEL
Price
$1.25
405
MODEL NUMBER LABEL
Price
$1.25
406
SPECIFICATIONS LABEL
Price
$1.25
407
DISCONNECT 110V 2.8W X 1.5H
Price
N/A
408
WARNING LABEL
Price
$1.25
409
NO HAND ZONE LABEL
Price
$1.25
410
READ MANUAL 2.8W X 1.5H
Price
N/A
411
LASER DANGER LABEL
Price
$1.25
412
MOVING BLADE/AMPUTATION 2.8W X 1.5H
Price
N/A
413
EYE/EAR/LUNG 2.8W X 1.5H
Price
N/A
414
GLOSSY BLACK
Price
N/A
415
CSA LABEL
Price
$4.25
MAN
MANUAL T31634/T31635 MFD-08.19 V1.11.19
Price
$19.50
