Parts for T31636 - Benchtop Router Table

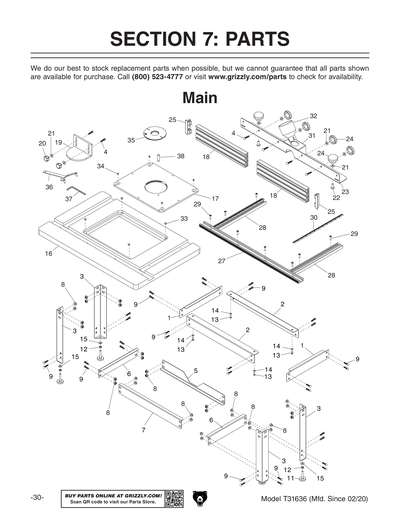

Part Diagram for T31636
Part Diagram for T31636
Part Diagram for T31636
Part Diagram for T31636
Part Diagram for T31636
Part Diagram for T31636

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

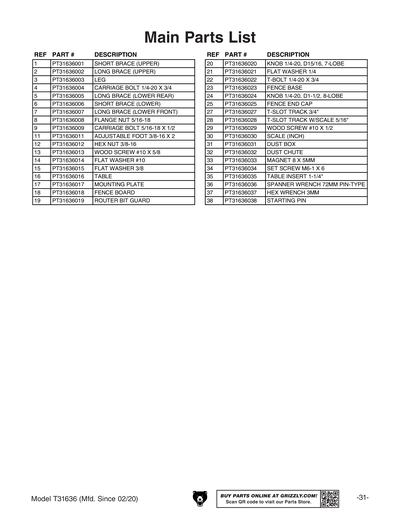

Ref #
Part #
Description
1
Price
$11.55
2
Price
$13.30
3
Price
$25.10
4
CARRIAGE BOLT 1/4-20 X 3/4
Price
$1.75
5
LONG BRACE (LOWER REAR)
Price
$16.65
6
Price
$10.65
7
LONG BRACE (LOWER FRONT)
Price
$13.60
8
FLANGE NUT 5/16-18
Price
N/A
9
CARRIAGE BOLT 5/16-18 X 1/2
Price
N/A
11
ADJUSTABLE FOOT 3/8-16 X 2
Price
$4.60
12
HEX NUT 3/8-16
Price
N/A
13
Price
$2.45
14
FLAT WASHER #10
Price
N/A
15
FLAT WASHER 3/8
Price
N/A
16
Price
$56.80
17
Price
$74.00
18
Price
$54.35
19
Price
$21.50
20
KNOB 1/4-20, D15/16, 7-LOBE
Price
$7.90
21
FLAT WASHER 1/4
Price
N/A
22
Price
$3.45
23
Price
$24.50
24
KNOB 1/4-20, D1-1/2, 8-LOBE
Price
$7.90
25
Price
$1.85
27
Price
$40.80
28
T-SLOT TRACK W/SCALE 5/16"
Price
$34.80
29
WOOD SCREW #10 X 1/2
Price
N/A
30
Price
$3.65
31
Price
$21.50
32
Price
$13.10
33
Price
$6.05
34
SET SCREW M6-1 X 6
Price
N/A
35
INSERT 1-1/4"
Price
N/A
36
SPANNER WRENCH 72MM PIN-TYPE
Price
$24.80
37
HEX WRENCH 3MM
Price
N/A
38
Price
$4.60
101
Price
$16.40
102
GLOSSY BLACK
Price
N/A
103
ENTANGLEMENT HAZARD 1.5W X 2.5H
Price
N/A
104
DISCONNECT 110V 1.5W X 2.5H
Price
N/A
105
GRIZZLY.COM LABEL 12",BEIGE
Price
N/A
106
EYE/EAR/LUNG 1.5W X 2.5H
Price
N/A
107
READ MANUAL 1.5W X 2.5H
Price
N/A
MAN
MANUAL T31636 MFD-02.20+ V1.01.20
Price
$21.95
