Parts for T31637 Router Lift with 12" x 9" Table Insert

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

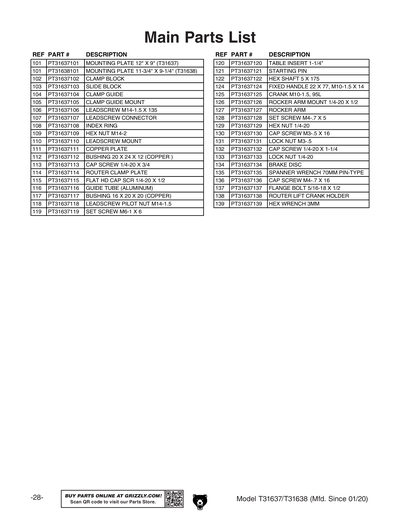

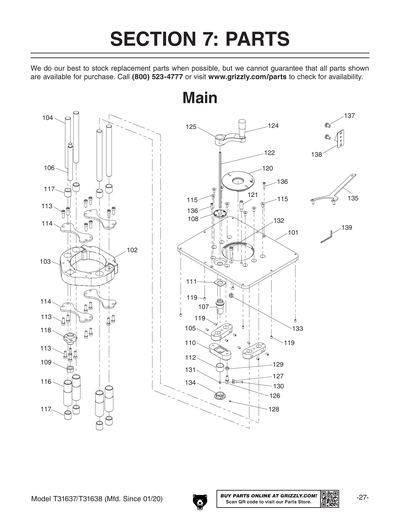

100
ROUTER LIFT ASSEMBLY
101

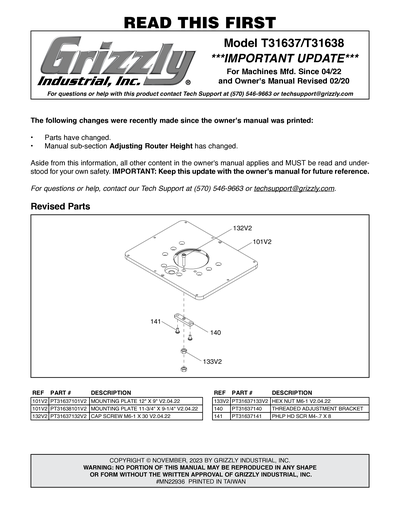

MOUNTING PLATE 12" X 9" V1
101V2
MOUNTING PLATE 12" X 9" V2.04.22
102
CLAMP BLOCK
Price
N/A
103
SLIDE BLOCK
Price
N/A
104
CLAMP GUIDE
Price
N/A
105
CLAMP GUIDE MOUNT
Price
N/A
106
LEADSCREW M14-1.5 X 135
Price
N/A
107
LEADSCREW CONNECTOR
Price
N/A
108
INDEX RING
Price
N/A
109
Now: PN32M
HEX NUT M14-2
Price
N/A
110
LEADSCREW MOUNT
Price
N/A
111
COPPER PLATE
Price
N/A
112
BUSHING 20 X 24 X 12 (COPPER)
Price
N/A
113
CAP SCREW 1/4-20 X 3/4
Price
N/A
114
ROUTER CLAMP PLATE
Price
N/A
115
Now: PFH41
FLAT HD CAP SCR 1/4-20 X 1/2
Price
N/A
116
GUIDE TUBE (ALUMINUM)
Price
N/A
117
BUSHING 16 X 20 X 20 (COPPER)
Price
N/A
118
LEADSCREW PILOT NUT M14-1.5
Price
N/A
119
SET SCREW M6-1 X 6
Price
N/A
120
INSERT 1-1/4"
Price
N/A
121
STARTING PIN
Price
N/A
122
HEX SHAFT 5 X 175
Price
N/A
124
FIXED HANDLE 22 X 77, M10-1.5 X 14
Price
N/A
125
CRANK M10-1.5, 95L
Price
N/A
126
ROCKER ARM MOUNT 1/4-20 X 1/2
Price
N/A
127
ROCKER ARM
Price
N/A
128
SET SCREW M4-.7 X 5
Price
N/A
129
Now: PN05
HEX NUT 1/4-20
Price
N/A
130
CAP SCREW M3-.5 X 16
Price
N/A
131
LOCK NUT M3-.5
Price
N/A
132
CAP SCREW 1/4-20 X 1-1/4
Price
N/A
132V2
CAP SCREW M6-1 X 30
Price
N/A
133
Now: PLN02
LOCK NUT 1/4-20
Price
N/A
133V2
Now: PN01M
HEX NUT M6-1
Price
N/A
134
BRAKE DISC
Price
N/A
135
SPANNER WRENCH 70MM PIN-TYPE
Price
N/A
136
CAP SCREW M4-.7 X 16
Price
N/A
137
Now: PFB01
FLANGE BOLT 5/16-18 X 1/2
Price
N/A
138
ROUTER LIFT CRANK HOLDER
Price
N/A
139
HEX WRENCH 3MM
Price
N/A
140
THREADED ADJUSTMENT BRACKET
141
Now: PS07M
PHLP HD SCR M4-.7 X 8
Price
N/A
MAN
MANUAL T31637/T31638 MFD-01.20+ V1.02.20
