Parts for T31641 9-1/4" x 11-3/4" Aluminum Router Table Insert with Two Reducer Rings

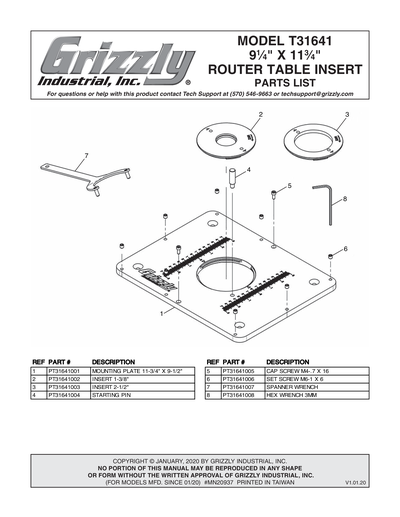

Parts Diagrams for T31641 - 9-1/4" x 11-3/4" Aluminum Router Table Insert with Two Reducer Rings

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Parts List for Parts for T31641 9-1/4" x 11-3/4" Aluminum Router Table Insert with Two Reducer Rings

1
MOUNTING PLATE 9-1/4" X 11-3/4"
$164.55
Enter quantity between 1 and 99
2
INSERT 1-3/8"
$18.15
Enter quantity between 1 and 99
3
INSERT 2-1/2"
$18.15
Enter quantity between 1 and 99
4
STARTING PIN
$5.50
Enter quantity between 1 and 99
5
CAP SCREW M4-.7 X 10
Price
N/A
6
SET SCREW M6-1 X 6
Price
N/A
7
SPANNER WRENCH 70MM PIN-TYPE
Price
N/A
8
HEX WRENCH 3MM
Price
N/A
MAN
MANUAL T31641 MFD-01.20+ V1.01.20
$14.65
Enter quantity between 1 and 99
