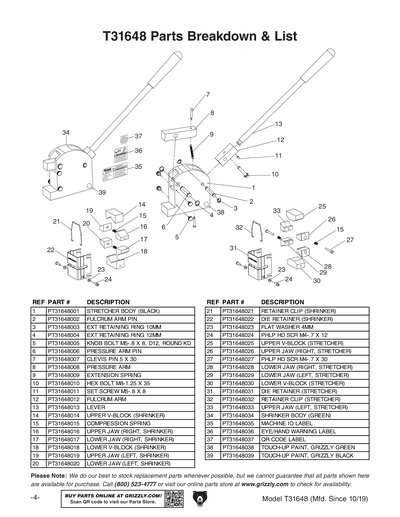

Parts for T31648 Metal Shrinker/Stretcher Combo Pack

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

1
STRETCHER BODY (GREEN)
2
FULCRUM ARM PIN
3
Now: PR01M
EXT RETAINING RING 10MM
Price
N/A
4
Now: PR03M
EXT RETAINING RING 12MM
Price
N/A
5
KNOB BOLT M5-.8 X 8, D12, ROUND KD
6
PRESSURE ARM PIN
7
CLEVIS PIN 5 X 30
8
PRESSURE ARM
9
EXTENSION SPRING
10
Now: PB20M
HEX BOLT M8-1.25 X 35
Price
N/A
11
SET SCREW M5-.8 X 8
Price
N/A
12
FULCRUM ARM
13
LEVER
14
UPPER V-BLOCK (SHRINKER)
15
COMPRESSION SPRING
16
UPPER JAW (RIGHT, SHRINKER)
17
LOWER JAW (RIGHT, SHRINKER)
18
LOWER V-BLOCK (SHRINKER)
19
UPPER JAW (LEFT, SHRINKER)
20
LOWER JAW (LEFT, SHRINKER)
21
RETAINER CLIP (SHRINKER)
22
DIE RETAINER (SHRINKER)
23
Now: PW05M
FLAT WASHER 4MM
Price
N/A
24
Now: PS02M
PHLP HD SCR M4-.7 X 12
Price
N/A
25
UPPER V-BLOCK (STRETCHER)
26
UPPER JAW (RIGHT, STRETCHER)
27
Now: PS51M
PHLP HD SCR M4-.7 X 30
Price
N/A
28
LOWER JAW (RIGHT, STRETCHER)
29
LOWER JAW (LEFT, STRETCHER)
30
LOWER V-BLOCK (STRETCHER)
31
DIE RETAINER (STRETCHER)
32
RETAINER CLIP (STRETCHER)
33
UPPER JAW (LEFT, STRETCHER)
34
SHRINKER BODY (BLACK)
35
MACHINE ID LABEL
36
EYE/HAND WARNING LABEL
37
QR CODE LABEL
38
N/S GRIZZLY GREEN G1023S
Price
N/A
39
GLOSSY BLACK
Price
N/A
MAN
MANUAL T31648 MFD-10.19+ V1.10.19
