Parts for T31688 - Metal Shrinker/Stretcher

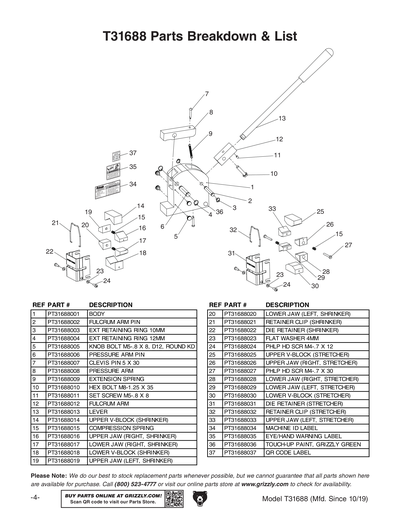

Part Diagram for T31688
Part Diagram for T31688

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
1
STRETCHER BODY (GREEN)
Price
N/A
2
FULCRUM ARM PIN
Price
N/A
3
EXT RETAINING RING 10MM
Price
N/A
4
EXT RETAINING RING 12MM
Price
N/A
5
KNOB BOLT M5-.8 X 8, D12, ROUND KD
Price
N/A
6
PRESSURE ARM PIN
Price
N/A
7
CLEVIS PIN 5 X 30
Price
N/A
8
PRESSURE ARM
Price
N/A
9
EXTENSION SPRING
Price
N/A
10
HEX BOLT M8-1.25 X 35
Price
N/A
11
SET SCREW M5-.8 X 8
Price
N/A
12
FULCRUM ARM
Price
N/A
14
UPPER V-BLOCK (SHRINKER)
Price
N/A
15
COMPRESSION SPRING
Price
N/A
16
UPPER JAW (RIGHT, SHRINKER)
Price
N/A
17
LOWER JAW (RIGHT, SHRINKER)
Price
N/A
18
LOWER V-BLOCK (SHRINKER)
Price
N/A
19
UPPER JAW (LEFT, SHRINKER)
Price
N/A
20
LOWER JAW (LEFT, SHRINKER)
Price
N/A
21
RETAINER CLIP (SHRINKER)
Price
N/A
22
DIE RETAINER (SHRINKER)
Price
N/A
23
FLAT WASHER 4MM
Price
N/A
24
PHLP HD SCR M4-.7 X 12
Price
N/A
25
UPPER V-BLOCK (STRETCHER)
Price
N/A
26
UPPER JAW (RIGHT, STRETCHER)
Price
N/A
27
PHLP HD SCR M4-.7 X 30
Price
N/A
28
LOWER JAW (RIGHT, STRETCHER)
Price
N/A
29
LOWER JAW (LEFT, STRETCHER)
Price
N/A
30
LOWER V-BLOCK (STRETCHER)
Price
N/A
31
DIE RETAINER (STRETCHER)
Price
N/A
32
RETAINER CLIP (STRETCHER)
Price
N/A
33
UPPER JAW (LEFT, STRETCHER)
Price
N/A
34
Price
$16.40
35
EYE/HAND WARNING LABEL
Price
N/A
36
N/S GRIZZLY GREEN G1023S
Price
N/A
37
Price
$2.50
MAN
MANUAL T31688 MFD-10.19+ V1.10.19
Price
$2.00
