Parts for T31739 - 12" Variable-Speed Benchtop Drill Press with Laser

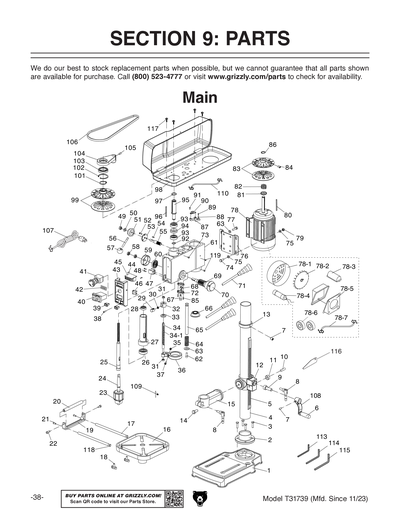

Part Diagram for T31739
Part Diagram for T31739
Part Diagram for T31739
Part Diagram for T31739
Part Diagram for T31739
Part Diagram for T31739

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

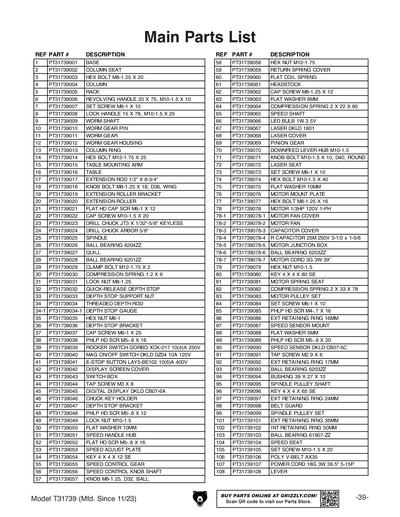

Ref #
Part #
Description
1
BASE
Price
$62.60
2
COLUMN SEAT
Price
$12.95
3
HEX BOLT M8-1.25 X 20
Price
N/A
4
COLUMN
Price
$28.45
5
RACK
Price
$12.25
6
LEVER W/ REVOLVING HANDLE
Price
$6.90
7
SET SCREW M6-1 X 10
Price
N/A
8
LOCK HANDLE 15 X 78, M10-1.5 X 25
Price
$5.10
9
WORM SHAFT
Price
$5.45
10
WORM GEAR PIN
Price
$1.90
11
WORM GEAR
Price
$3.65
12
WORM GEAR HOUSING
Price
$25.60
13
COLUMN RING
Price
$8.35
14
HEX BOLT M12-1.75 X 25
Price
N/A
15
TABLE MOUNTING ARM
Price
$23.75
16
TABLE
Price
$61.85
17
EXTENSION ROD 1/2" X 8-3/4"
Price
$5.10
18
KNOB BOLT M8-1.25 X 18, D36, WING
Price
$1.90
19
EXTENSION ROLLER BRACKET
Price
$5.10
20
EXTENSION ROLLER
Price
$5.10
21
FLAT HD CAP SCR M6-1 X 12
Price
N/A
22
CAP SCREW M10-1.5 X 20
Price
N/A
23
DRILL CHUCK JT3 X 1/32-5/8 KEYLESS
Price
$70.85
24
DRILL CHUCK ARBOR
Price
$6.15
25
SPINDLE
Price
$27.70
26
BALL BEARING 6204ZZ
Price
N/A
27
QUILL
Price
$22.35
28
BALL BEARING 6201ZZ
Price
N/A
29
DEPTH STOP ASSEMBLY
Price
N/A
30
DEPTH STOP ASSEMBLY
Price
N/A
31
LOCK NUT M8-1.25
Price
N/A
32
DEPTH STOP ASSEMBLY
Price
N/A
33
DEPTH STOP ASSEMBLY
Price
N/A
34
DEPTH STOP ASSEMBLY
Price
N/A
34-1
*DISCD*DEPTH STOP GAUGE
Price
$25.10
34A
DEPTH STOP ASSEMBLY
Price
$31.65
35
HEX NUT M6-1
Price
N/A
36
DEPTH STOP ASSEMBLY
Price
N/A
37
CAP SCREW M6-1 X 25
Price
N/A
38
PHLP HD SCR M5-.8 X 16
Price
N/A
39
ROCKER SWITCH GORBO XCK-017 10(4)A 250V
Price
$2.60
40
MAG ON/OFF SWITCH DKLD DZ04 10A 120V
Price
$15.15
41
E-STOP BUTTON LAY5-BE102 10(6)A 400V
Price
$23.40
42
DISPLAY SCREEN COVER
Price
$2.60
43
SWITCH BOX
Price
$3.25
44
TAP SCREW M3 X 8
Price
N/A
45
SPEED SENSOR DKLD CB07-5C
Price
N/A
47
DEPTH STOP BRACKET
Price
$1.90
48
PHLP HD SCR M5-.8 X 12
Price
N/A
49
LOCK NUT M10-1.5
Price
N/A
50
FLAT WASHER 10MM
Price
N/A
51
SPEED HANDLE HUB
Price
$4.70
52
FLAT HD SCR M5-.8 X 16
Price
N/A
53
SPEED ADJUST PLATE
Price
$2.20
54
KEY 4 X 4 X 12
Price
N/A
55
SPEED CONTROL GEAR
Price
$8.35
56
SPEED CONTROL KNOB SHAFT
Price
$1.90
57
KNOB M8-1.25, D32, BALL
Price
$1.90
58
HEX NUT M12-1.75
Price
N/A
59
FLAT COIL SPRING W/COVER
Price
N/A
60
FLAT COIL SPRING W/COVER
Price
$6.90
61
HEADSTOCK
Price
$84.85
62
CAP SCREW M8-1.25 X 12
Price
N/A
63
FLAT WASHER 8MM
Price
N/A
64
COMPRESSION SPRING 2 X 22 X 80
Price
$2.20
65
SPEED SHAFT
Price
$6.15
66
LED BULB 1W 3.5V
Price
$16.95
67
LASER DKLD 1801
Price
$11.90
68
LASER COVER W/ SEAT
Price
$4.70
69
PINION GEAR W/ DOWNFEED LEVER HUB M10-1.5
Price
$29.90
70
PINION GEAR W/ DOWNFEED LEVER HUB M10-1.5
Price
N/A
71
KNOB BOLT M10-1.5 X 10, D40, ROUND
Price
$5.00
72
LASER COVER W/ SEAT
Price
N/A
73
SET SCREW M6-1 X 10
Price
N/A
74
HEX BOLT M10-1.5 X 40
Price
N/A
75
FLAT WASHER 10MM
Price
N/A
76
MOTOR MOUNT PLATE
Price
$8.65
77
HEX BOLT M8-1.25 X 16
Price
N/A
78
MOTOR 1/3HP 120V 1-PH
Price
$246.95
78-1
MOTOR FAN COVER
Price
$7.60
78-2
MOTOR FAN
Price
$1.90
78-4
R CAPACITOR 25M 450V 3-1/2 X 1-5/5
Price
$9.75
78-5
MOTOR JUNCTION BOX
Price
$11.90
78-6
BALL BEARING 6203ZZ
Price
N/A
78-7
MOTOR 1/3HP 120V 1-PH
Price
N/A
79
HEX NUT M10-1.5
Price
N/A
80
KEY 4 X 4 X 80
Price
N/A
81
MOTOR SPRING SEAT
Price
$1.90
82
COMPRESSION SPRING 2 X 33 X 78
Price
$1.90
83
MOTOR PULLEY SET
Price
$30.60
84
SET SCREW M6-1 X 10
Price
N/A
85
PHLP HD SCR M4-.7 X 16
Price
N/A
86
EXT RETAINING RING 16MM
Price
N/A
87
SPEED SENSOR MOUNT
Price
$1.90
88
FLAT WASHER 5MM
Price
N/A
89
PHLP HD SCR M5-.8 X 20
Price
N/A
90
SPEED SENSOR DKLD CB07-5C
Price
$64.70
91
TAP SCREW M2.9 X 6
Price
$1.90
92
EXT RETAINING RING 17MM
Price
N/A
93
BALL BEARING 6203ZZ
Price
N/A
94
BUSHING 39 X 27 X 10
Price
$1.90
95
SPINDLE PULLEY SHAFT
Price
$21.25
96
KEY 4 X 4 X 65 SE
Price
$3.25
97
EXT RETAINING RING 24MM
Price
N/A
98
BELT GUARD
Price
$76.95
98-1
BELT GUARD KNOB W/ SCR M5-.8 X 12
Price
$2.25
99
SPINDLE PULLEY SET
Price
$35.95
101
EXT RETAINING RING 35MM
Price
N/A
102
INT RETAINING RING 50MM
Price
N/A
103
BALL BEARING 61907-ZZ
Price
$19.65
104
SPEED SEAT
Price
$7.95
105
SET SCREW M10-1.5 X 20
Price
N/A
106
V-BELT AX35
Price
N/A
107
POWER CORD 18G 3W 39.5" 5-15P
Price
$1.90
108
LEVER W/ REVOLVING HANDLE
Price
N/A
110
SPEED SENSOR DKLD CB07-5C
Price
N/A
113
HEX WRENCH 3MM
Price
N/A
114
HEX WRENCH 4MM
Price
N/A
115
HEX WRENCH 5MM
Price
N/A
116
DRIFT KEY
Price
$1.90
117
FLANGE SCREW M6-1 X 12
Price
N/A
118
EXT RETAINING RING 12MM
Price
N/A
119
SET SCREW M8-1.25 X 12
Price
N/A
201

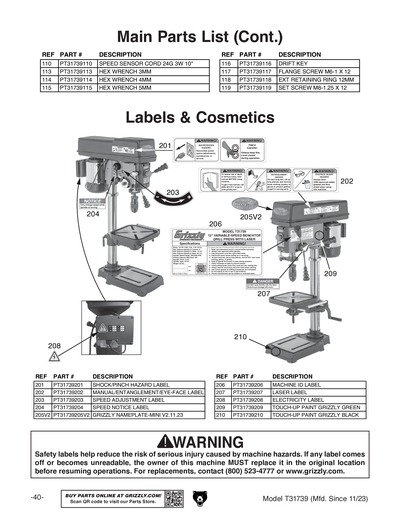

SHOCK/PINCH HAZARD LABEL
Price
$4.25
202
MANUAL/ENTANGLEMENT/EYE-FACE LABEL
Price
$4.25
203
SPEED ADJUSTMENT LABEL
Price
$16.40
204
SPEED NOTICE LABEL
Price
$16.40
205
BELT GUARD
Price
N/A
205V2
Nameplate - Mini
Price
N/A
206
MACHINE ID LABEL
Price
$16.40
207
LASER LABEL
Price
$4.25
208
ELECTRICITY 0.7W X 0.6H
Price
N/A
209
N/S GRIZZLY GREEN G1023S
Price
N/A
210
GLOSSY BLACK
Price
N/A
MAN
MANUAL T31739 MFD-11.19-10.23 V1.11.19
Price
$18.75
MANV2
MANUAL T31739 MFD-11.23+ V2.11.23
Price
$14.65
P
V-BELT AX35
Price
$29.10
