Parts for T31850 - Electronic Height Adjustable Workbench Frame

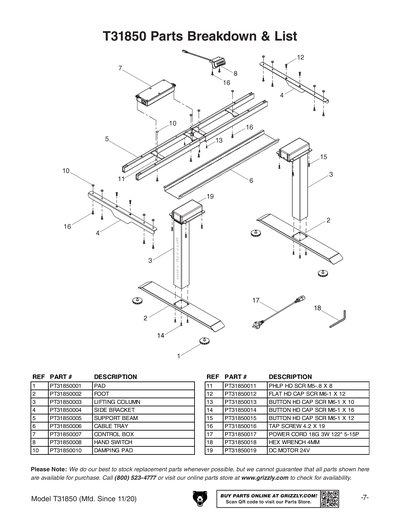

Part Diagram for T31850
Part Diagram for T31850

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
1
Price
$1.49
2
*DISCD*FOOT, PAIR
Item is no longer available
Price
N/A
3
*DISCD*LIFTING COLUMN W/DC MOTOR 24V
Item is no longer available
Price
N/A
4
*DISCD*SIDE BRACKET
Item is no longer available
Price
N/A
5
Price
$42.00
6
*DISCD*CABLE TRAY
Item is no longer available
Price
N/A
7
*DISCD*CONTROL BOX
Item is no longer available
Price
N/A
8
*DISCD*HAND SWITCH
Item is no longer available
Price
N/A
10
Price
$1.49
11
PHLP HD SCR M5-.8 X 8
Price
N/A
12
FLAT HD CAP SCR M6-1 X 12
Price
N/A
13
BUTTON HD CAP SCR M6-1 X 10
Price
N/A
14
BUTTON HD CAP SCR M6-1 X 16
Price
N/A
15
BUTTON HD CAP SCR M6-1 X 12
Price
N/A
16
*DISCD*TAP SCREW 4.2 X 18
Item is no longer available
Price
N/A
17
*DISCD*POWER CORD 18G 3W 72" 5-15P
Price
$6.90
18
HEX WRENCH 4MM
Price
N/A
19
*DISCD*LIFTING COLUMN W/DC MOTOR 24V
Price
N/A
