Parts for T31999 Biscuit Joiner

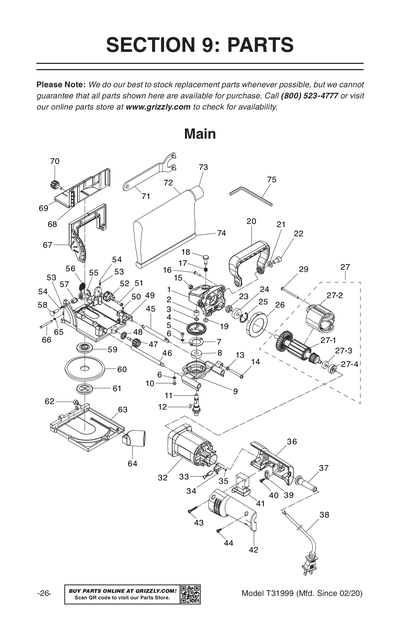

Parts Diagrams for T31999 - Biscuit Joiner

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

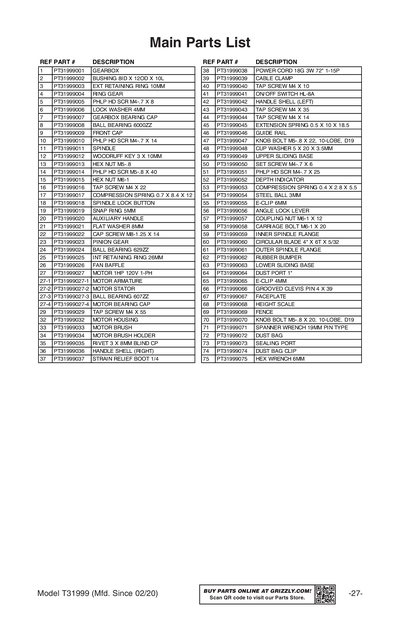

Parts List for Parts for T31999 Biscuit Joiner

1
GEARBOX
$4.70
Enter quantity between 1 and 99
2
BUSHING 8ID X 12OD X 10L
$1.90
Enter quantity between 1 and 99
3
Now: PR01M
EXT RETAINING RING 10MM
Price
N/A
4
RING GEAR
$3.65
Enter quantity between 1 and 99
5
Now: PS07M
PHLP HD SCR M4-.7 X 8
Price
N/A
6
LOCK WASHER 4MM
Price
N/A
7
GEARBOX BEARING CAP
$1.90
Enter quantity between 1 and 99
8
BALL BEARING 6000-2Z
Price
N/A
9
FRONT CAP
$3.25
Enter quantity between 1 and 99
10
Now: PS74M
PHLP HD SCR M4-.7 X 14
Price
N/A
11
SPINDLE
$1.90
Enter quantity between 1 and 99
12
*DISCD*WOODRUFF KEY 3 X 10
Price
N/A
13
Now: PN06M
HEX NUT M5-.8
Price
N/A
14
*DISCD*PHLP HD SCR M5-.8 X 40
Price
N/A
15
Now: PN01M
HEX NUT M6-1
Price
N/A
16
TAP SCREW M4 X 22
Price
N/A
17
COMPRESSION SPRING 0.7 X 8.4 X 12
$1.90
Enter quantity between 1 and 99
18
SPINDLE LOCK BUTTON
$1.90
Enter quantity between 1 and 99
19
SNAP RING 5MM
Price
N/A
20
AUXILIARY HANDLE
$2.60
Enter quantity between 1 and 99
21
Now: PW01M
FLAT WASHER 8MM
Price
N/A
22
CAP SCREW M8-1.25 X 14
Price
N/A
23
PINION GEAR
$2.20
Enter quantity between 1 and 99
24
BALL BEARING 629ZZ
Price
N/A
25
Now: PR40M
INT RETAINING RING 26MM
Price
N/A
26
FAN BAFFLE
$1.90
Enter quantity between 1 and 99
27
MOTOR 1HP 120V 1-PH
$19.45
Enter quantity between 1 and 99
27-1
MOTOR ARMATURE
$19.45
Enter quantity between 1 and 99
27-2
MOTOR STATOR
$14.75
Enter quantity between 1 and 99
27-3
BALL BEARING 607ZZ
Price
N/A
27-4
MOTOR BEARING CAP
$1.90
Enter quantity between 1 and 99
29
TAP SCREW M4 X 55
Price
N/A
32
MOTOR HOUSING
$3.25
Enter quantity between 1 and 99
33
MOTOR BRUSH
$1.90
Enter quantity between 1 and 99
34
MOTOR BRUSH HOLDER
$1.90
Enter quantity between 1 and 99
35
RIVET 3 X 8MM BLIND CP
$1.90
Enter quantity between 1 and 99
36
HANDLE SHELL (RIGHT)
$1.90
Enter quantity between 1 and 99
37
STRAIN RELIEF BOOT 1/4
$1.90
Enter quantity between 1 and 99
38
POWER CORD 18G 3W 72" 1-15P
$4.70
Enter quantity between 1 and 99
39
CABLE CLAMP
$1.90
Enter quantity between 1 and 99
40
TAP SCREW M4 X 10
Price
N/A
41
ON/OFF SWITCH HL-8A
$2.90
Enter quantity between 1 and 99
42
HANDLE SHELL (LEFT)
$1.90
Enter quantity between 1 and 99
43
TAP SCREW M4 X 35
Price
N/A
44
TAP SCREW M4 X 14
Price
N/A
45
EXTENSION SPRING 0.5 X 10 X 18.5
$1.90
Enter quantity between 1 and 99
46
GUIDE RAIL
$1.90
Enter quantity between 1 and 99
47
KNOB BOLT M5-.8 X 22, 10-LOBE, D19
$1.90
Enter quantity between 1 and 99
48
CUP WASHER 5 X 20 X 3.5MM
$1.90
Enter quantity between 1 and 99
49
UPPER SLIDING BASE
$6.90
Enter quantity between 1 and 99
50
SET SCREW M4-.7 X 6
Price
N/A
51
Now: PS18M
PHLP HD SCR M4-.7 X 25
Price
N/A
52
DEPTH INDICATOR
$1.90
Enter quantity between 1 and 99
53
COMPRESSION SPRING 0.4 X 2.8 X 5.5
$1.90
Enter quantity between 1 and 99
54
STEEL BALL 3MM
Price
N/A
55
E-CLIP 6MM
Price
N/A
56
ANGLE LOCK LEVER
$1.90
Enter quantity between 1 and 99
57
COUPLING NUT M6-1 X 12
$1.90
Enter quantity between 1 and 99
58
CARRIAGE BOLT M6-1 X 20
Price
N/A
59
INNER SPINDLE FLANGE
$1.90
Enter quantity between 1 and 99
60
CIRCULAR BLADE 4" X 6T X 5/32
$16.65
Enter quantity between 1 and 99
61
OUTER SPINDLE FLANGE
$1.90
Enter quantity between 1 and 99
62
RUBBER BUMPER
$1.90
Enter quantity between 1 and 99
63
LOWER SLIDING BASE
$6.15
Enter quantity between 1 and 99
64
DUST PORT 1"
$1.90
Enter quantity between 1 and 99
65
E-CLIP 3MM
Price
N/A
66
GROOVED CLEVIS PIN 4 X 39
$1.90
Enter quantity between 1 and 99
67
FACEPLATE
$3.25
Enter quantity between 1 and 99
68
FENCE W/ HEIGHT SCALE
Price
N/A
69
FENCE W/ HEIGHT SCALE
$7.20
Enter quantity between 1 and 99
70
KNOB BOLT M5-.8 X 20, 10-LOBE, D19
$1.90
Enter quantity between 1 and 99
71
SPANNER WRENCH 19MM PIN TYPE
$1.90
Enter quantity between 1 and 99
72
DUST BAG
$1.90
Enter quantity between 1 and 99
73
SEALING PORT
$1.90
Enter quantity between 1 and 99
74
DUST BAG CLIP
$1.90
Enter quantity between 1 and 99
75
HEX WRENCH 6MM
Price
N/A

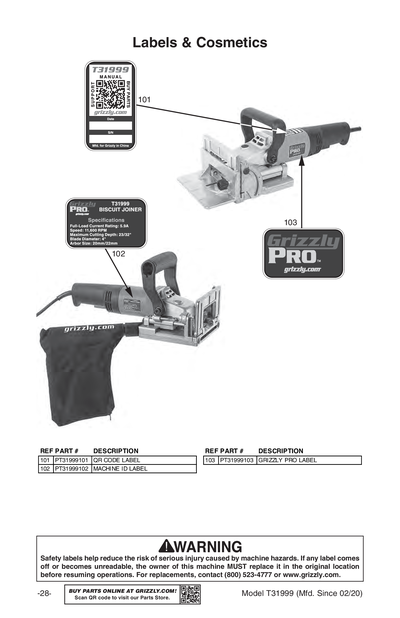

101
QR CODE LABEL
$1.25
Enter quantity between 1 and 99
102
MACHINE ID LABEL
$16.40
Enter quantity between 1 and 99
103
GRIZZLY PRO LABEL
$1.25
Enter quantity between 1 and 99
MAN
MANUAL T31999 MFD-02.20+ V1.02.20
$16.50
Enter quantity between 1 and 99
